1-25
Network diagram

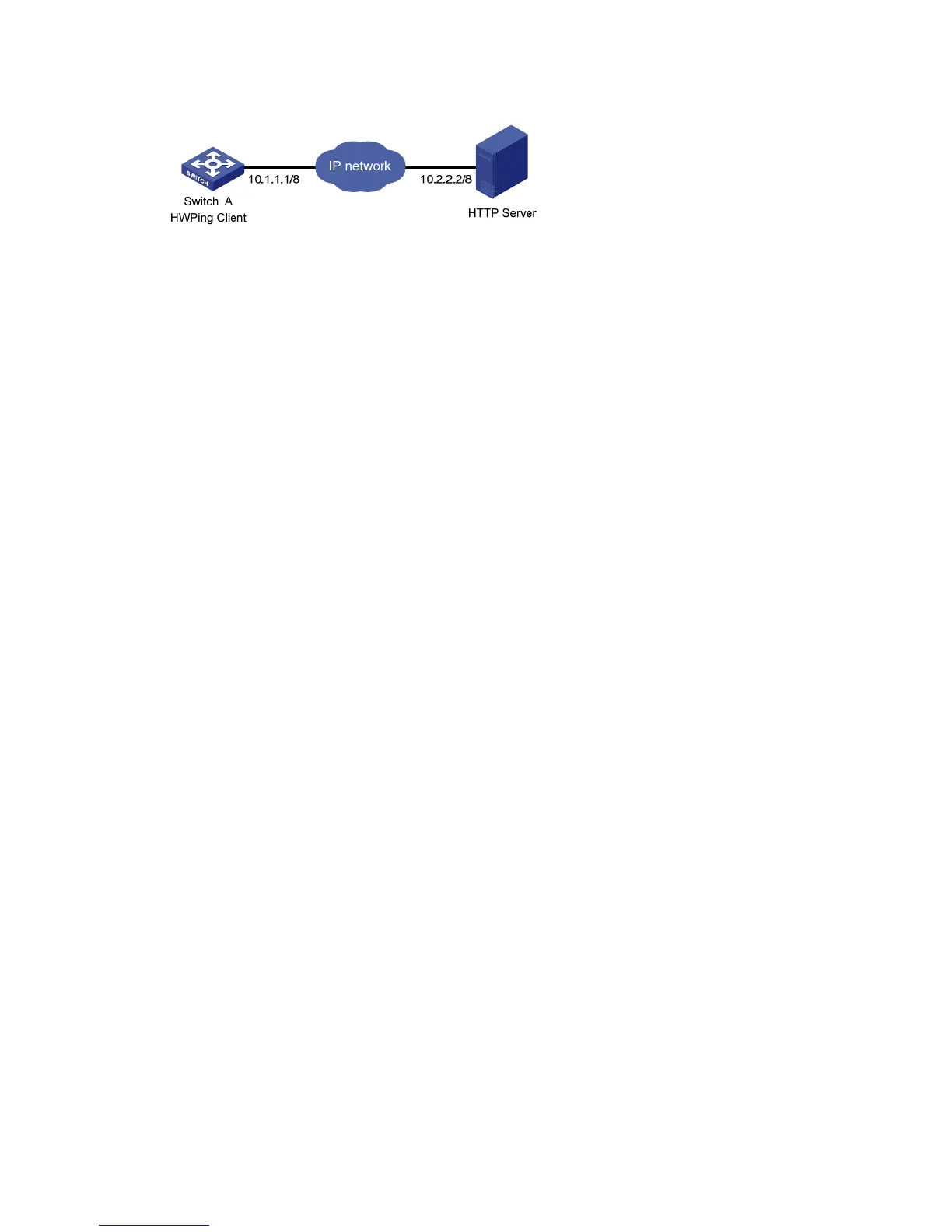

Figure 1-5 Network diagram for the HTTP test
Configuration procedure
z Configure HTTP Server:
Use Windows 2003 Server as the HTTP server. For HTTP server configuration, refer to the related
instruction on Windows 2003 Server configuration.
z Configure HWPing Client (Switch A):
# Enable the HWPing client.
<Sysname> system-view
[Sysname] hwping-agent enable
# Create an HWPing test group, setting the administrator name to administrator and test tag to HTTP.
[Sysname] hwping administrator http
# Configure the test type as http.
[Sysname-hwping-administrator-http] test-type http
# Configure the IP address of the HTTP server as 10.2.2.2.
[Sysname-hwping-administrator-http] destination-ip 10.2.2.2
# Configure to make 10 probes per test.
[Sysname-hwping-administrator-http] count 10
# Set the probe timeout time to 30 seconds.
[Sysname-hwping-administrator-http] timeout 30
# Enable the saving of history records and set the maximum number of history records that can be
saved to 10.
[Sysname-hwping-administrator-http] history-record enable
[Sysname-hwping-administrator-http] history-records 10
# Start the test.
[Sysname-hwping-administrator-http] test-enable
# Display test results
[Sysname-hwping-administrator-http] display hwping results administrator http
HWPing entry(admin administrator, tag http) test result:
Destination ip address:10.2.2.2
Send operation times: 10 Receive response times: 10
Min/Max/Average Round Trip Time: 47/87/74
Square-Sum of Round Trip Time: 57044
Last succeeded test time: 2000-4-2 20:41:50.4
Extend result:
SD Maximal delay: 0 DS Maximal delay: 0
Packet lost in test: 0%
Disconnect operation number: 0 Operation timeout number: 0
System busy operation number: 0 Connection fail number: 0
Operation sequence errors: 0 Drop operation number: 0
Other operation errors: 0
Http result:
