Hammond SKX Reference Guide

EXTRA VOICE Section
148

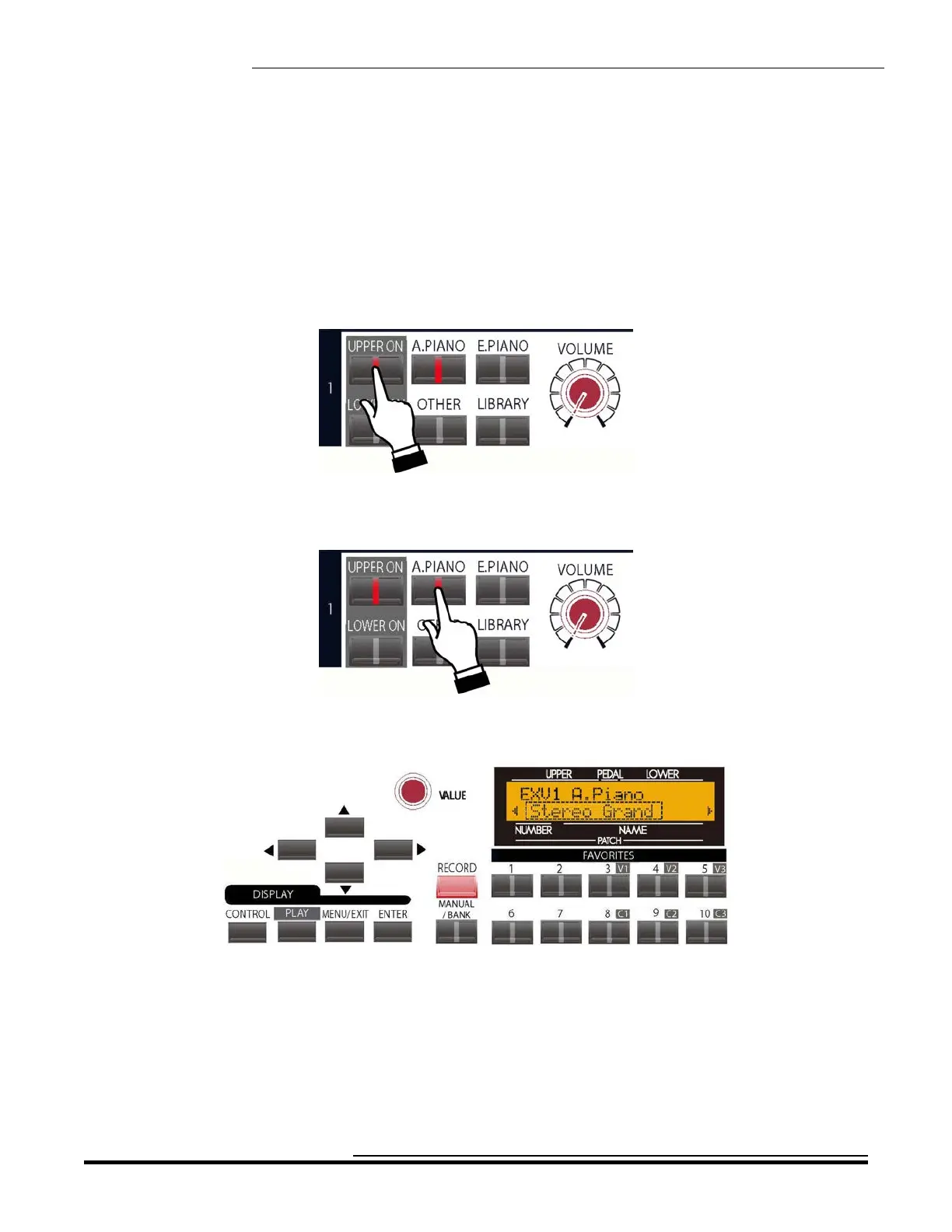

Allocating Extra Voices - UPPER Manual
TRY THIS:
1. If the UPPER ON LED in the EXTRA VOICE 1 Group is not lit, touch the UPPER Touch Tab. The red
LED will light.
2. If the A.PIANO (Acoustic Piano LED is not lit, touch the A.PIANO Touch Tab.
The Information Center Display should now look similar to this:
The lower line of the display should now be blinking.
3. Play some notes on the Upper Manual. You will now hear the sound of an acoustic grand piano.
HA<O> SKX Owner’s Playing Guide

Hammond SKX Specifications

General

Manuals	2
Drawbars	9 per manual
Power Supply	AC Adapter
Effects	Chorus, Vibrato, Reverb
Connectivity	USB, MIDI, Audio Out, Headphones, Expression Pedal
Keyboard	61 keys (waterfall style)
Piano/Ensemble Section	Pianos, Strings, Brass
Display	LCD
Touch Sensitivity	Adjustable
