Selecting a Tone Wheel to Edit
TRY THIS:

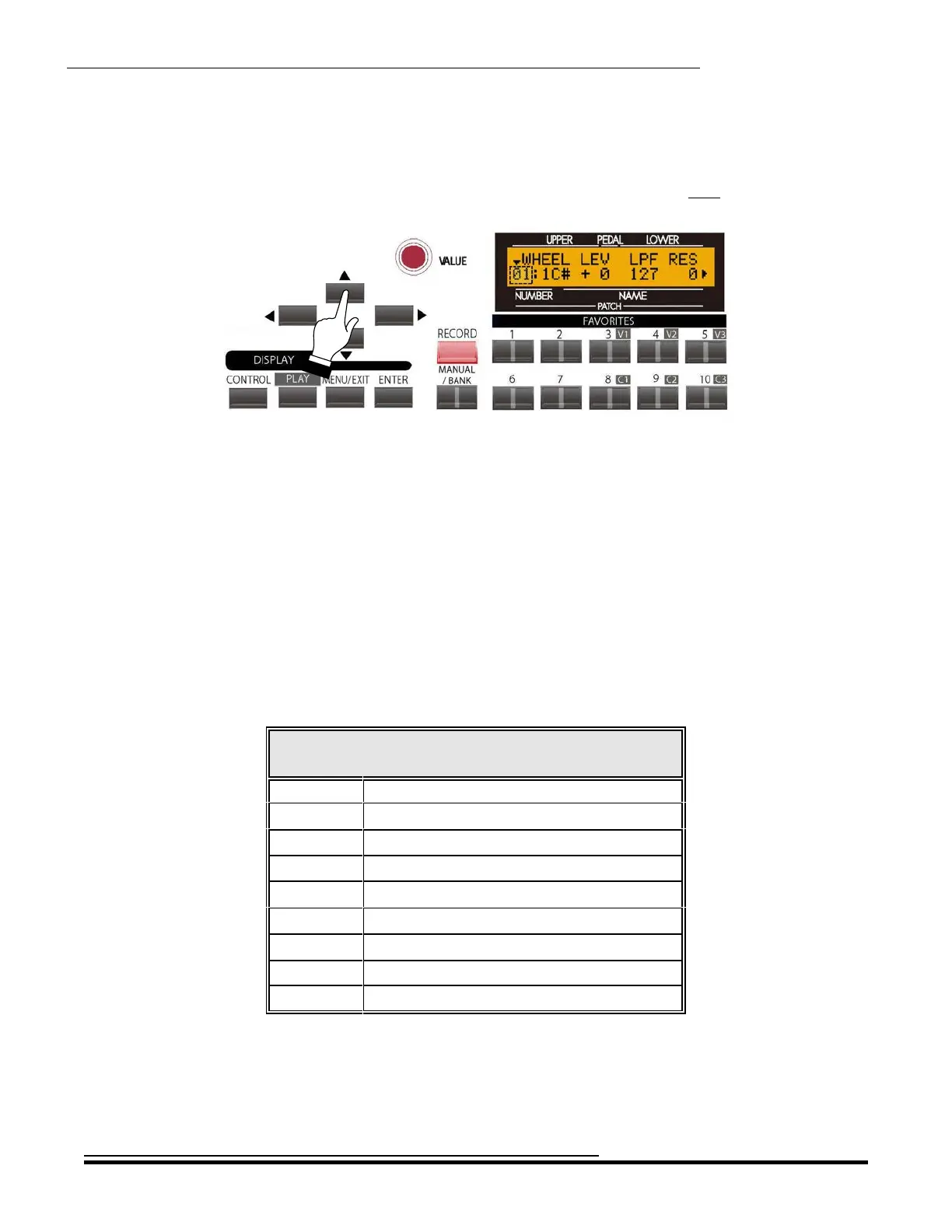

1. From the previous screen (page 41), touch the PAGE UP Touch Button once. The Information Center
Display should now look like this:
Shown above is Page 3 of the CUSTOM TONE WHEEL Edit Menu.
Notice that the number on the extreme left of the lower line is blinking. This number represents the currently
selected Tone Wheel.
Using the VALUE Rotary Control to select Tone Wheels
Turning the VALUE Rotary Control will allow you to scroll through the Tone Wheels. You can select from “1"
(“1C”) through “96 (“8B”). Simply turn the control until you find the number you want.
Using the Drawbars and Keyboard to select Tone Wheels
If you want to find a certain Tone Wheel quickly, you can use the Drawbars and the playing keys to select it.
Each individual Drawbar will play a different portion of the Tone Wheels. The data chart below shows how the
Tone Wheels are allocated to each Drawbar
Drawbar Voice Options
Drawbar Tone Wheels
16' +Wheels 1 ~ 61
5 C’
Wheels 20 ~ 80
8' Wheels 13 ~73
4' Wheels 25 ~ 85
2 D’
*Wheels 32 ~ 92
2' *Wheels 37 ~ 96
1 L’
*Wheels 41 ~ 96
1 C’
*Wheels 44 ~ 96
1' *Wheels 49 ~ 96
+ - The lower note limit of this Drawbar is determined by the Drawbar Foldback setting.
* - The upper note limit of this Drawbar is determined by the Drawbar Foldback setting.
HA<O> SKX Owner’s Playing Guide
