Introduction
6

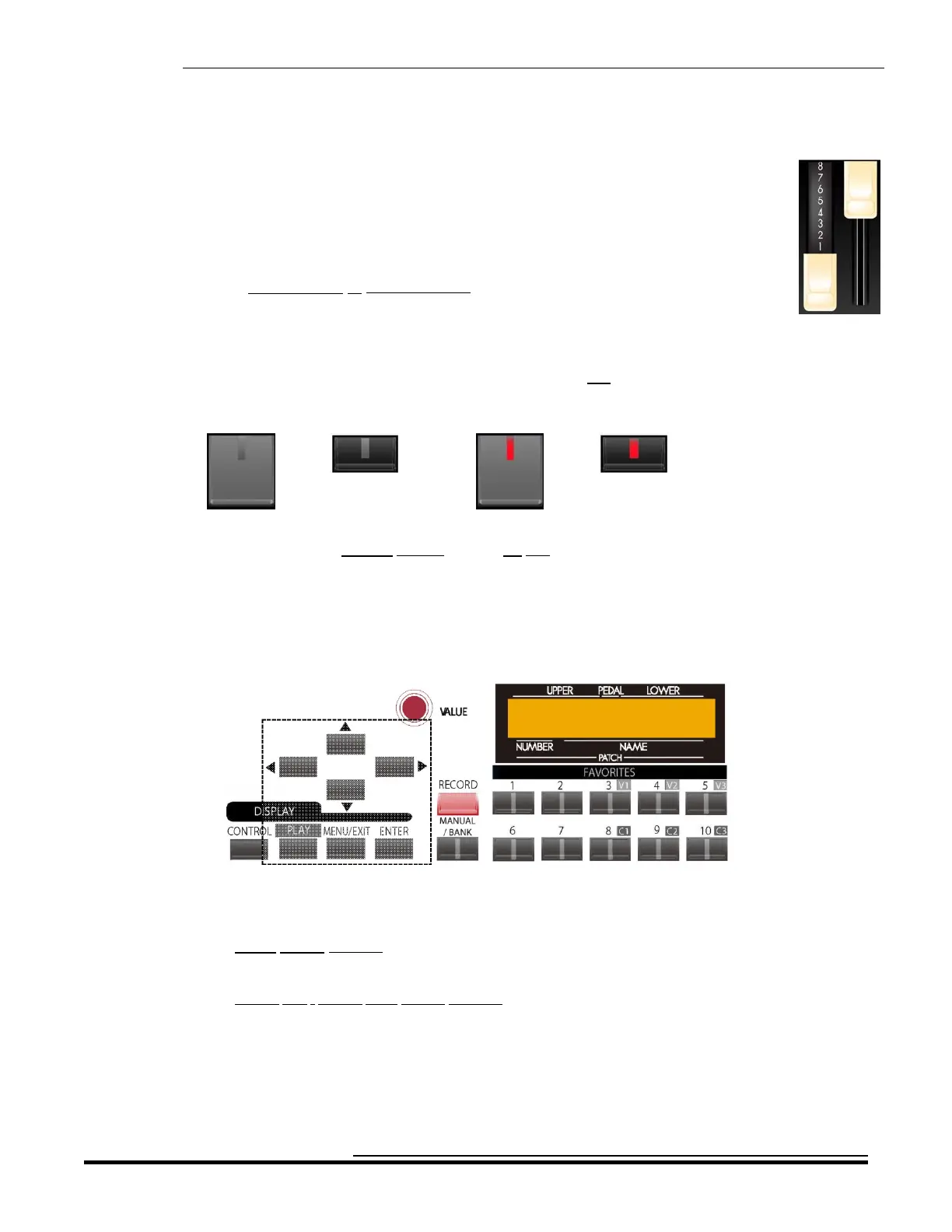

Drawbars
The Drawbars are the heart and soul of the Hammond Sound. There are two sets of nine Drawbars, some-
times referred to as Tonebars, for Upper and Lower Keyboard functions, and two Drawbars for Pedal
tones, located between the Upper and Lower Keyboard Drawbar sets.
Pulling a Drawbar out (towards you) will increase the volume from 0 (no sound) to 8 (maximum volume).
Pushing the Drawbar in (away from you) decreases the volume of that Drawbar.
Please refer to the DRAWBARS & PERCUSSION section of this Reference Guide for a complete
explanation of Hammond Drawbars.
Touch Tabs
Touch Tabs have red LED's or lights them that will light up indicating "ON".
“OFF” “ON”
NOTE: The Touch Tabs in the EXTRA VOICE Section do not all turn off, at least one LED in each of these five
Sections will always remain lighted.
Touch Buttons
Touch Buttons are the buttons found in the Information Center Display.
Touch Buttons have two different functions.
1. Select Touch Buttons will allow you to select among multiple functions such as selecting a Menu
Page.
2. Touch ON / Touch OFF Touch Buttons turn "ON" or "OFF" specific functions such as SUSTAIN.
NOTE: More detail about each of these sections is covered later in this Owner's Playing Guide. Refer to the
Table of Contents for the page numbers.
HA<O> SKX Owner’s Playing Guide
