Hammond SKX Reference Guide

Overdrive & Multi-Effects
210

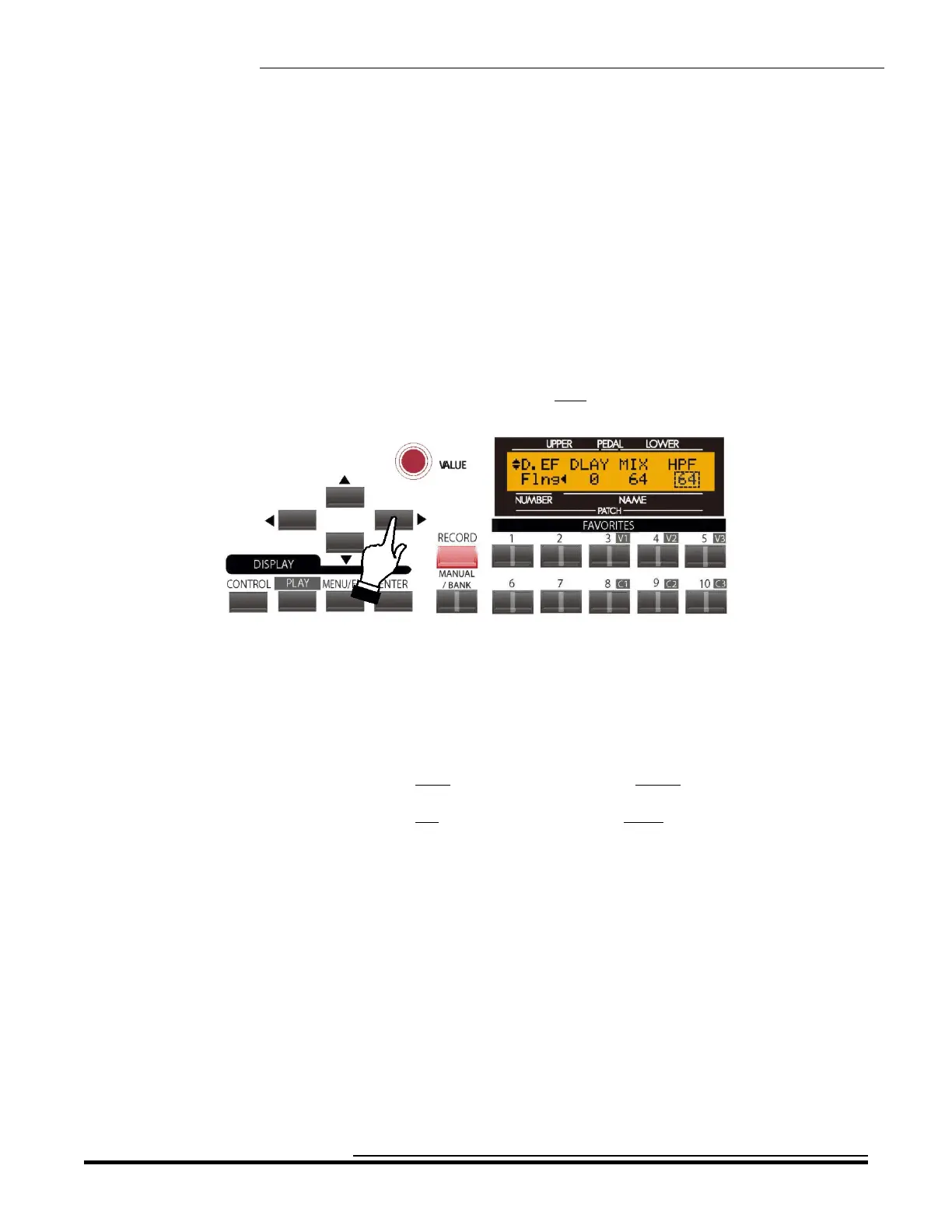

From the previous screen, touch the PAGE RIGHT Touch Button once. The Information Center Display should
now look like this:
The number underneath the word “HPF” should be blinking.
HPF - Flanger High-Pass Filter
This Advanced Feature allows you to adjust the frequency limit beyond which the Flange effect is applied. You can
select from “0" (the effect is added to all frequencies) through “127" (the effect is added to the upper frequencies only).
Turn the VALUE Rotary Control to the right to make the frequency limit higher .
Turn the VALUE Rotary Control to the left to make the frequency limit lower.
HA<O> SKX Owner’s Playing Guide

Hammond SKX Specifications

General

Manuals	2
Drawbars	9 per manual
Power Supply	AC Adapter
Effects	Chorus, Vibrato, Reverb
Connectivity	USB, MIDI, Audio Out, Headphones, Expression Pedal
Keyboard	61 keys (waterfall style)
Piano/Ensemble Section	Pianos, Strings, Brass
Display	LCD
Touch Sensitivity	Adjustable
