GEN series SYNCHRONIZATION METHODS
GEN series SYNCHRONIZATION METHODS
14
Verify setup and installation
Once the setup is complete there are several steps that can be taken to verify if the
setup was successful.
Status information
The overall system time base information is displayed in the status window. This will
give a system wide overview showing the most imprecise time source from all con-
nected mainframes.
As all mainframes are expected to be on PTP, the status should show PTP, and should have
the default colors blue and white (see îž’gure below).

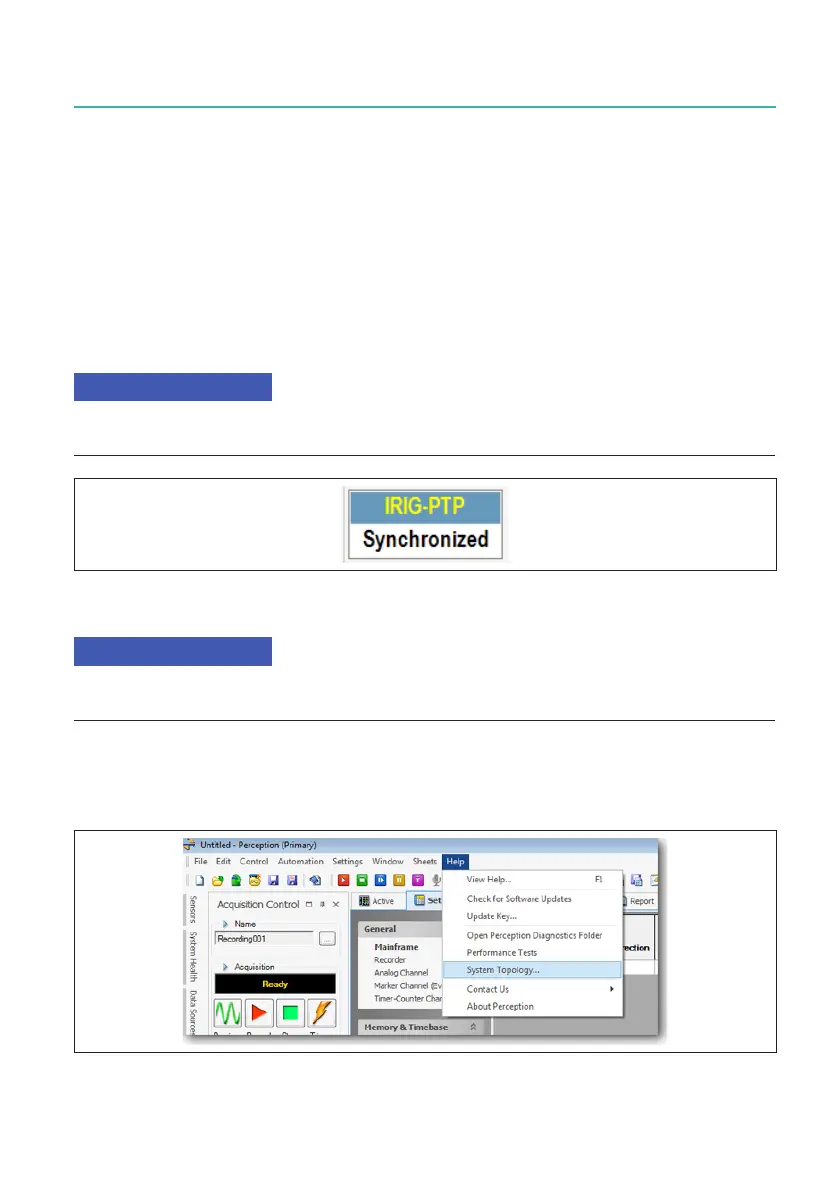

Fig. 14.44 IRIG-PTP status - Synchronized
In case the status shown is orange / red a problem has occurred, please refer to the „Trou-
ble-shooting guide for G001B“ on page330 for detailed information.
System topology
An overview can be found in the system topology overview. The system topology will
show the information per connected mainframe.
1. In the menu bar choose Help â–º System Topology (see Fig. 14.45).
Fig. 14.45 System Topology Help
