2.8 Deister Proximity / Hands-free reader heads.

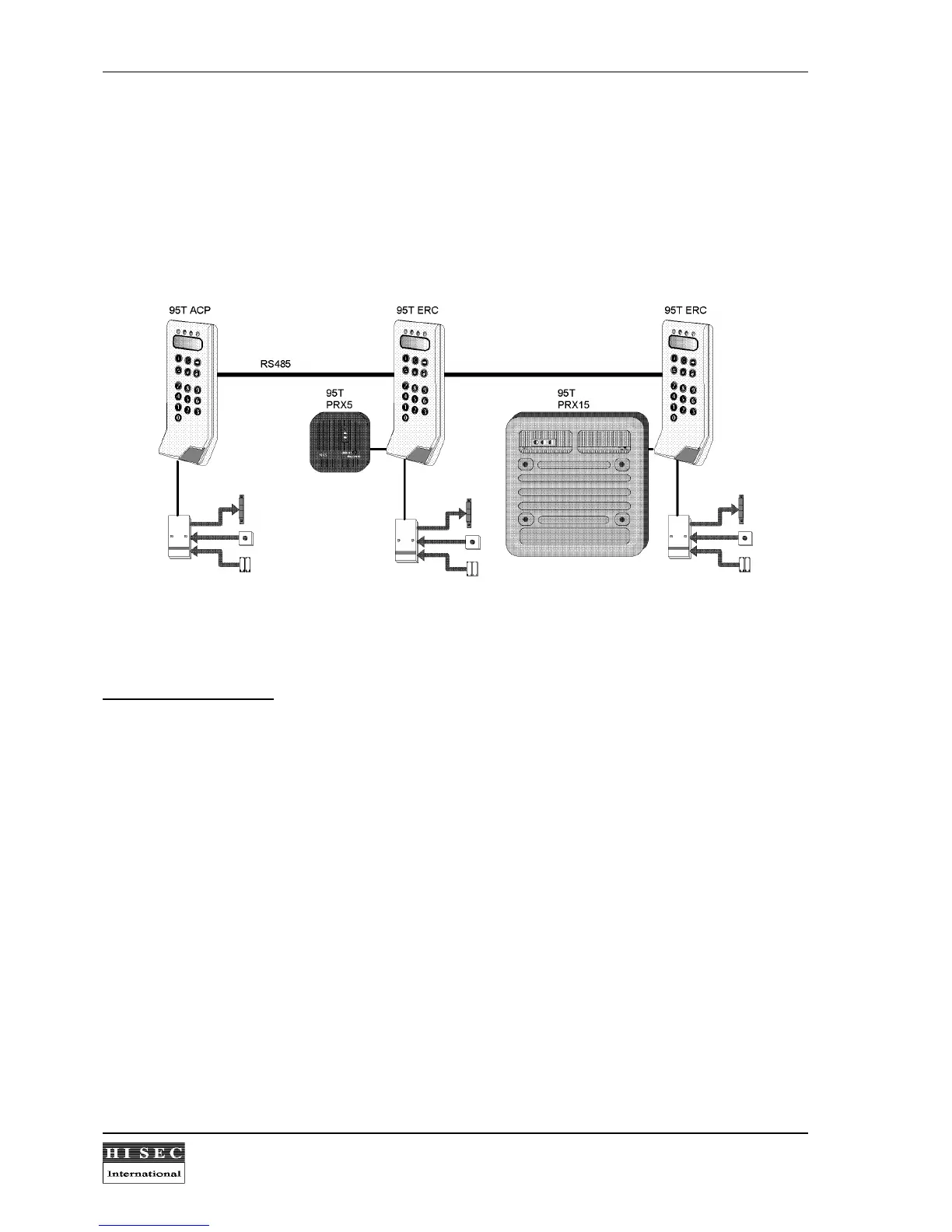

2.8.1 System description.
Deister proximity and hands-free antennas exist in different versions depending on the application and reading
distances. In this manual are described the 95T ACP (built-in proximity), 95T PRX5 (proximity antenna) and the
95T PRX15 (hands-free antenna). If other applications or reading distances are needed please contact the Hi
Sec International, Technical support department.
2.8.2 95T ACP terminal with built-in antenna.
Technical Specifications:
Temperature range without heating on: -5
0
C to +60
0
C
with heating on: -15
0
C to +60
0
C / 12V DC
-25
0
C to +60
0
C / 24V DC
Power supply: 8 - 30 VDC, < 150 mA
Frequency: 125kHz
Reading distance: Up to 5 cm depending on
mounting and transponder
type
J4 Jumper setting: Open (Wiegand)
For further specifications, jumper settings and lay-out of the terminal please refer to chapter 2.1.1.
