2.6.4 Double zone controller.
The Double Zone Controller is designed to read the codes contained in Cotag coded (Hi Sec format) Cards and
Tags. It drives two Reading Heads (antennas) which detect the presence of a Card. The controller monitors both
reading heads, polling them alternately. If it is a valid Hi Sec format the controller sends out the data to the
corresponding 90T RKP ERC. The terminal will then from its database decide if the door can be opened or not.

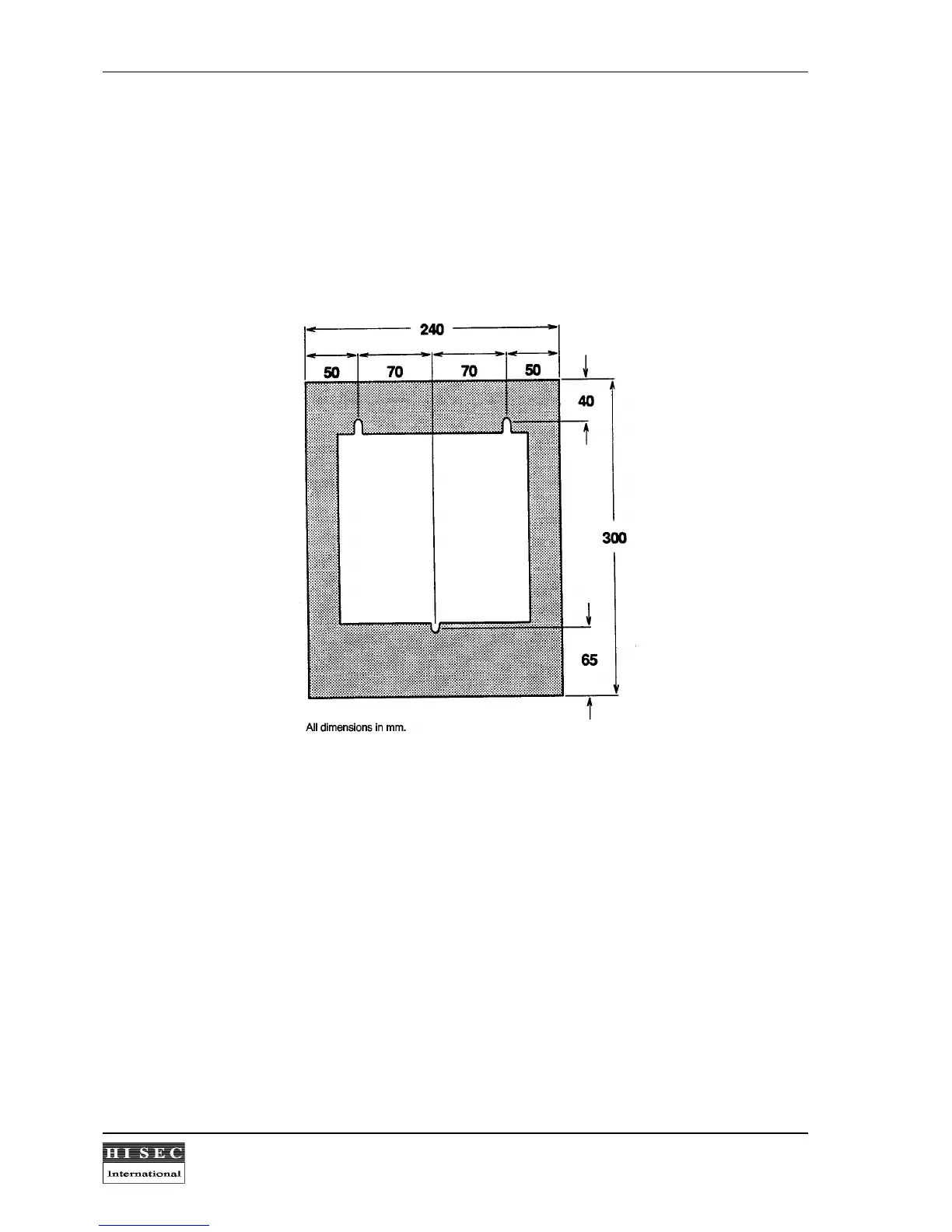

2.6.4.1 Measurements and fixing.
Electrical characteristics:
Size:
.... ............. ............. ............ ............. ............ ............. ............. ............ .............
300x240x53 mm
Weight:
............. ............. ............ ............. ............ ............. ............. ............ .............
2.2 kg
Operating temperature:
.. ............ ............. ............ ............. ............. ............ .............
0
0
C to +45
0
C
LED indicators:
.. ............. ............ ............. ............ ............. ............. ............ .............
See following description
Humidity:
........... ............. ............ ............. ............ ............. ............. ............ .............
90% non-condensing
Max. distance between controller and antenna:
.... ............. ............. ............ .............
300 m (see note)
Max distance between controller and 90T RKP ERC terminal:
......... ............ .............
150 m (see note)
Power supply:
... ............. ............ ............. ............ ............. ............. ............ .............
12V DC (+25%, -10%)
............. ............. ............ ............. ............ ............. ............. ............ .............
max. 500 mA
............. ............. ............ ............. ............ ............. ............. ............ .............
(Switch mode not
............. ............. ............ ............. ............ ............. ............. ............ .............
recommended).
Note:
These cable lengths demand screened twisted pair cables type (BELDEN).
