Mode:
The following 4 modes are available:
Mode 00: Reader not initialized
Mode 01: Stand Alone Reader
Mode 02: Multi Reader System
Mode 03: THOR Integrated Reader

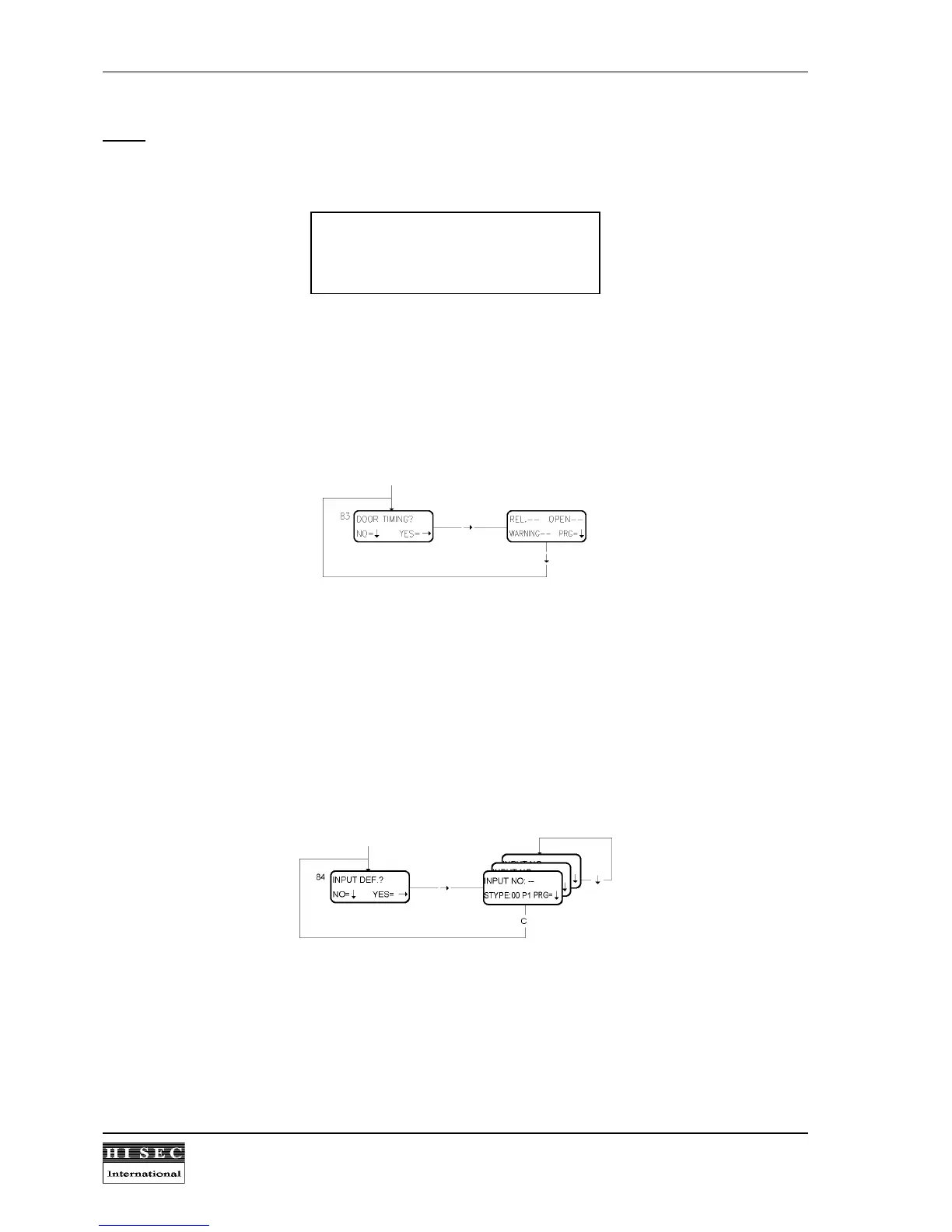

Menu 83. Door Timing.
The following times can be programmed for a reader to control a door:
Door release time = REL.
Door open time before warning = OPEN.
Warning time before Door Held alarm = WARNING.
All times are put in digits by 10 seconds and each time can be adjusted from 0 to 990 sec. The
↓
- key will store
the keyed-in times and return to the Menu number 83.
Menu 84. Input Setup.
For each S-ART address 2 input softtypes must be programmed.
After initialization all inputs and all outputs are programmed with softtype 0 (no function).
The following relationship between S-ART address and I/O no. are specified:
Input/output no. = 2 x S-ART address + S-ART I/O no. (0 or 1).
When the menu is called, the input no. 00 is displayed and a new number can be keyed in if wanted. After that
the corresponding input softtype is keyed in (see the list in 1.4.2) followed by
↓
. Hereafter the next address can
be keyed in. The menu is left by keying in
C
.
The P-parameter specifies the polarity of the programmed input:
1 = normally closed contact
0 = normally open contact
