1.7.2 Wiegand Card formats.
1.7.2.1 Hi Sec Wiegand Card format.

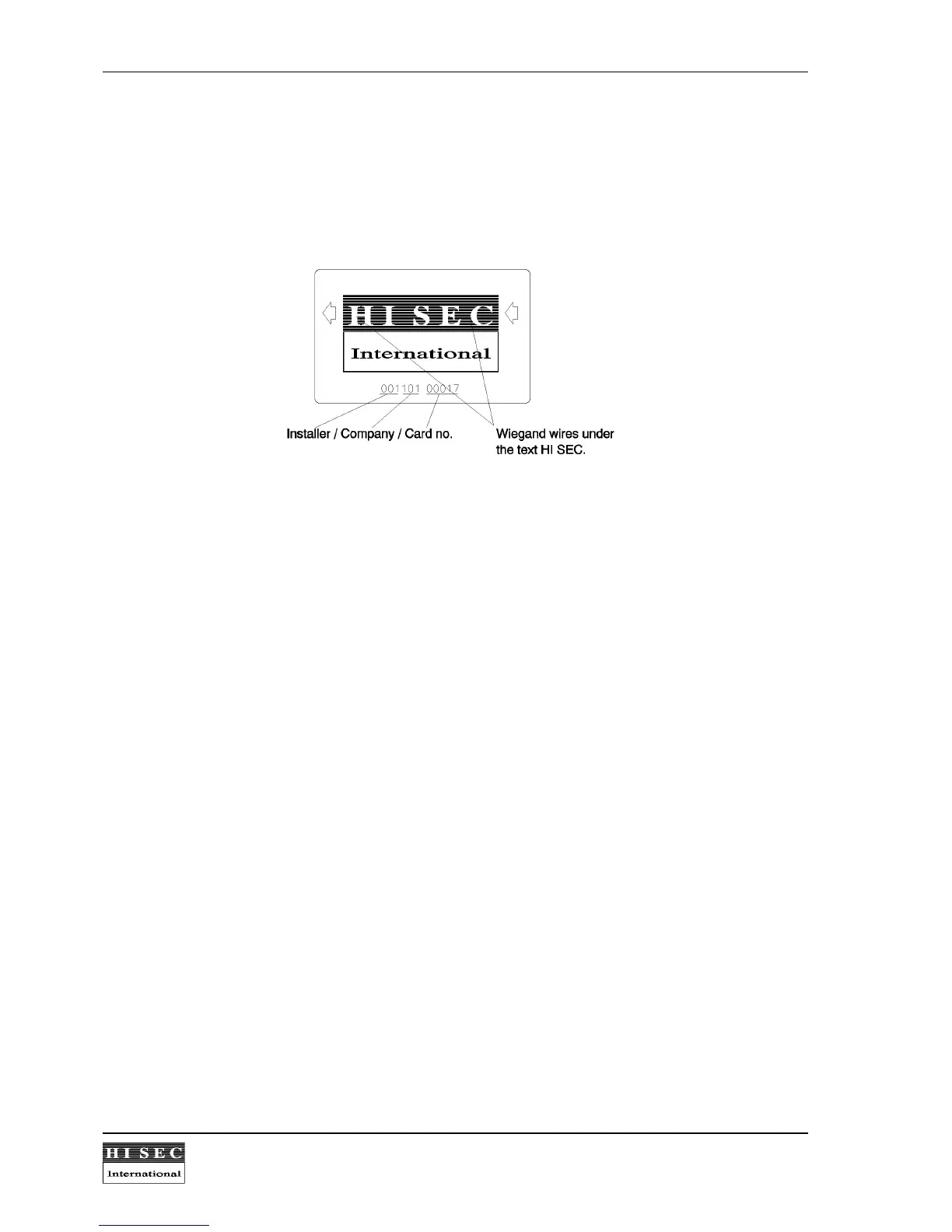

Hi Sec wiegand cards (card format 2) are standard 40 bit wiegand cards with the lay-out as shown below.
Another logo can be made upon request.
1
The following numbers are written on the cards:
♦
Installer number: 3 digits (max. 127)
♦
Company number: 3 digits (max. 127)
♦
Card number: 5 digits.
In the wiegand format it is not possible to have a distributor (OEM) number. The OEM number is the same for all
cards and is a special Hi Sec OEM number. Each installer will be given an Installer number and this number
gives the possibility to make maximum 127 different installations. If more installations are needed by the same
installer, a new number must be given to this installer meaning also new service cards.
The card administration concerning Service cards and Master cards is similar to the magstripe card
administration.
1.7.2.2 Standard Wiegand Card format.
Two different standard Wiegand card formats are available, see below. The purpose of these card formats are
to make it possible to use some simple card formats used by many other card distributors.
Please note
that it is always necessary to have minimum one Master card and one Service card in
encrypted
format including a full site code (O.E.M., Installer and Company no.) to programme and start the readers.
The standard wiegand card format can be from 25 to 31 bit (not distributor protected) formats with the following
description:
