HI Sec THOR - GPI DLC Bus Amplifier

Technical Manual
October 1, 1995 18-006/081-04 GB
113
2.12 95T GPI DLC Bus amplifier.
The 95T GPI DLC can be used to prolong the RS485 bus extra 1.2 km or to make a branch out from the bus
if a star cabling of the RS485 bus is needed.
Important note:
After a 95T GPI DLC interface only one address can be connected. This address can be a
95T GPI BR bridge meaning a complete new bus.

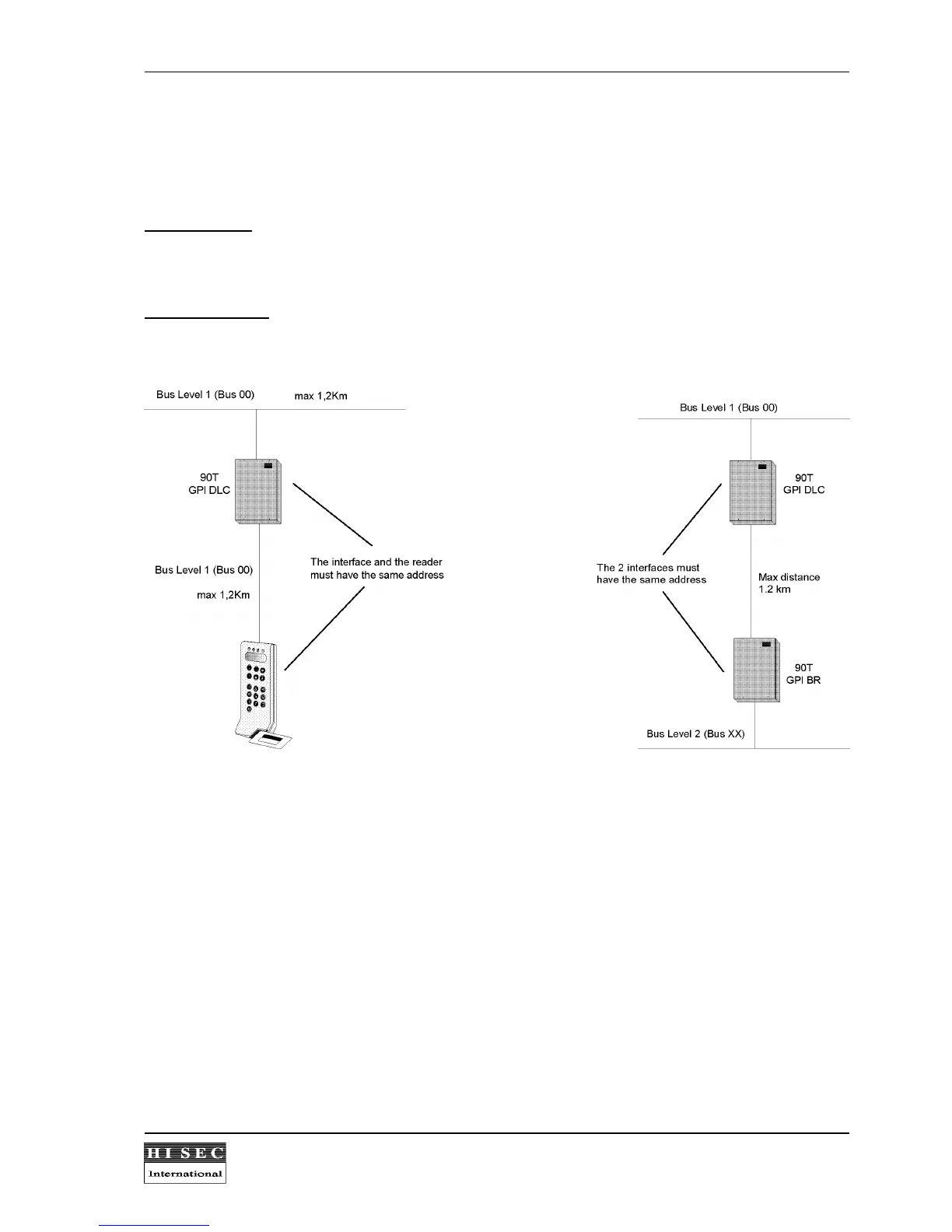

System diagrams:
