2.6.3.2 Connections.

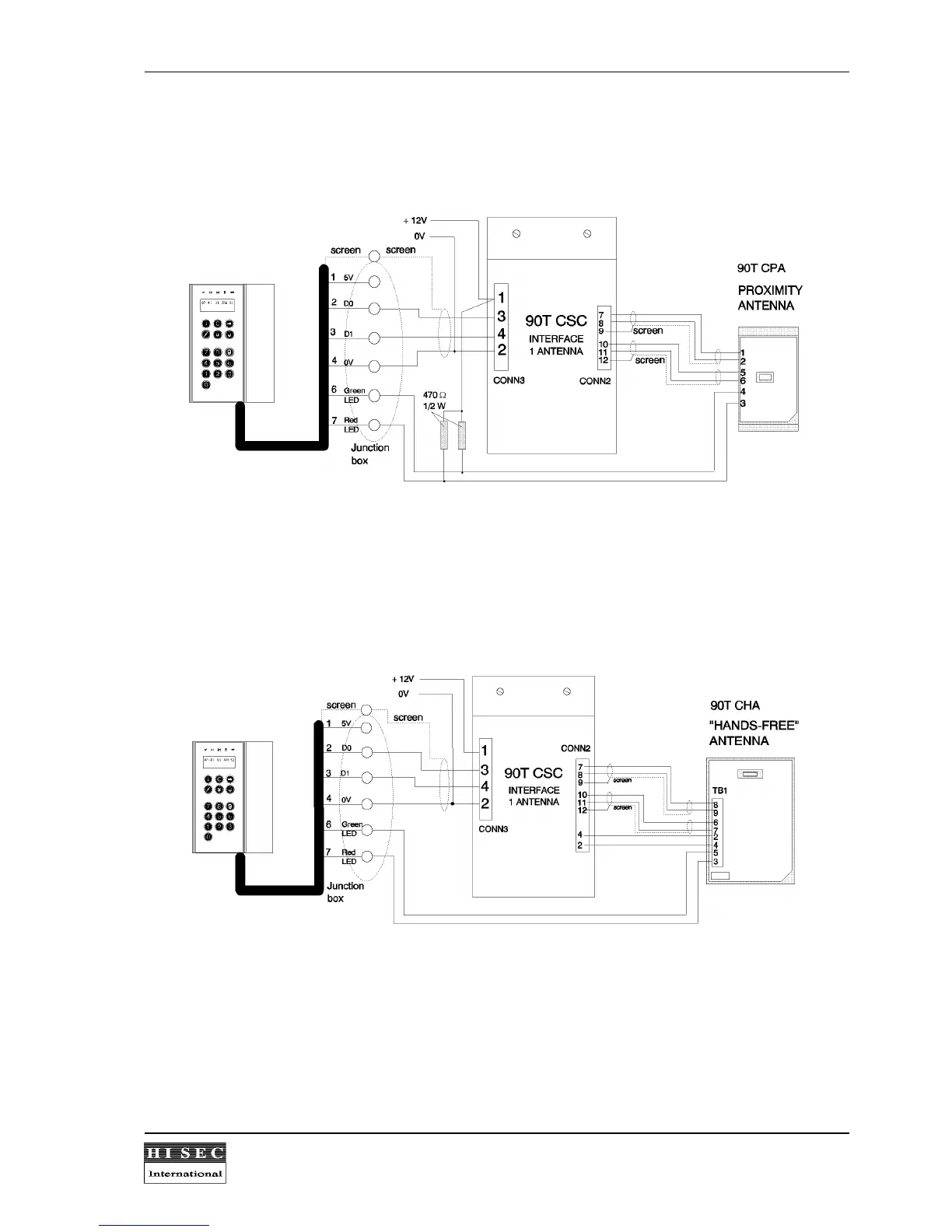

Connection diagram Single-zone controller / Proximity antenna:
Please note that the control of the antenna LED's is made by the two external 470 Ohm / ½W resistors.
Wire no. 1 in the flat-cable coming from the 90T RKP ERC is the wire marked with blue or red. The connections
can be made in the 90 JB junction box.
Connection diagram Single-zone controller / Hands-free antenna:
Wire no. 1 in the flat-cable coming from the 90T RKP ERC is the wire marked with blue or red. The connections
can be made in the 90 JB junction box.
