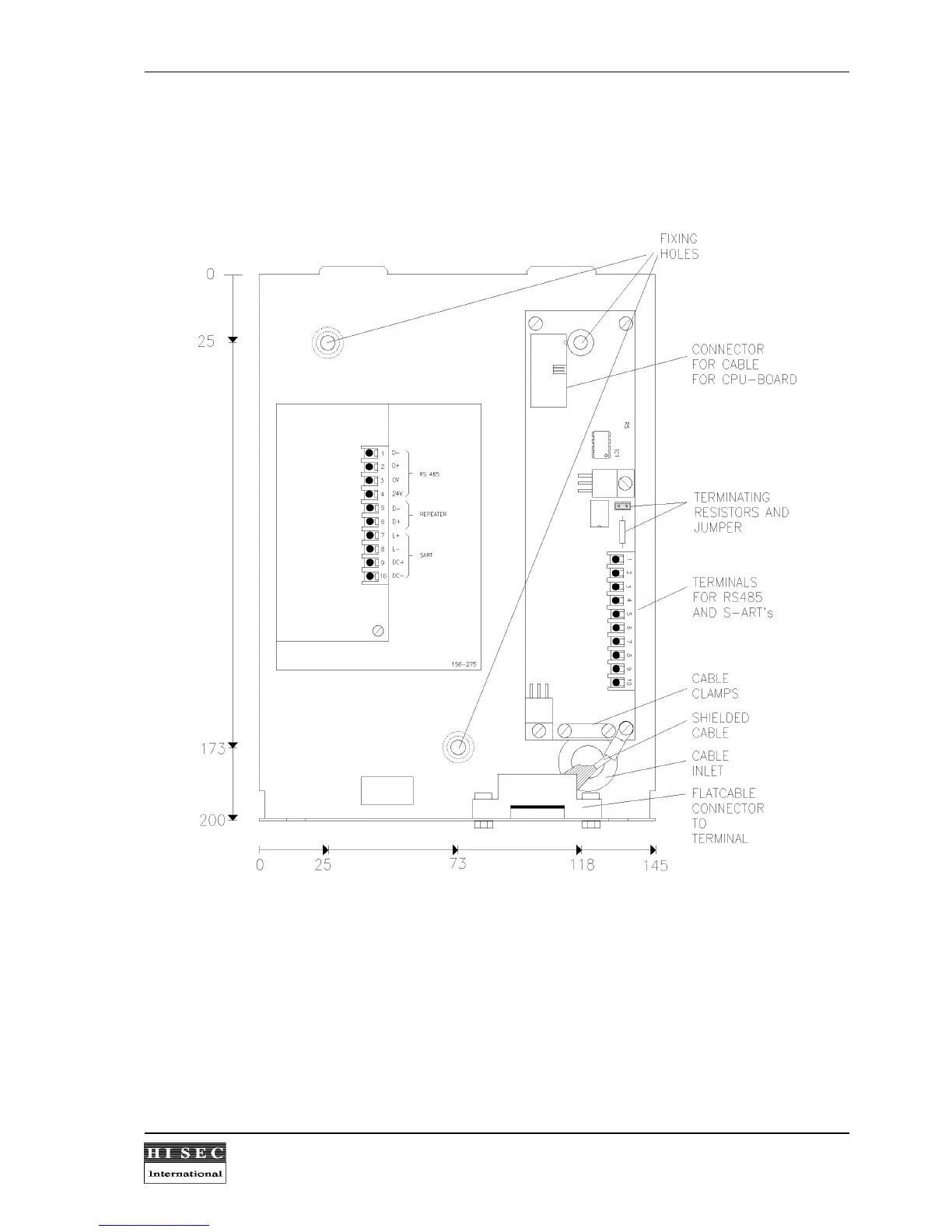

2.4 90T RKP ERC Terminal for External Wiegand/Magstripe/Proximity reader heads.
The controller/terminal 90T RKP ERC is delivered with 2.5 m shielded cable coming out of the cable outlet.
This cable must be removed from the flat-cable connector before removing the keypad from the bottom. The
layout of the terminal corresponds to the layout of the normal intrusion remote keypad 90T RKP.
2.4.1 Switch setting in the terminal.
4 switches are used to programme the address of each unit on the bus. The switches are placed on the CPU-
board of the Card reader.
The addresses are set binary from 00 to 31. In systems
with
THOR intrusion integration address 00 cannot be
used by a Card reader. In a multi-reader system
without
integration one of the readers
must
be programmed
as address 00, as this address automatically will work as the master for the multi-master protocol.
