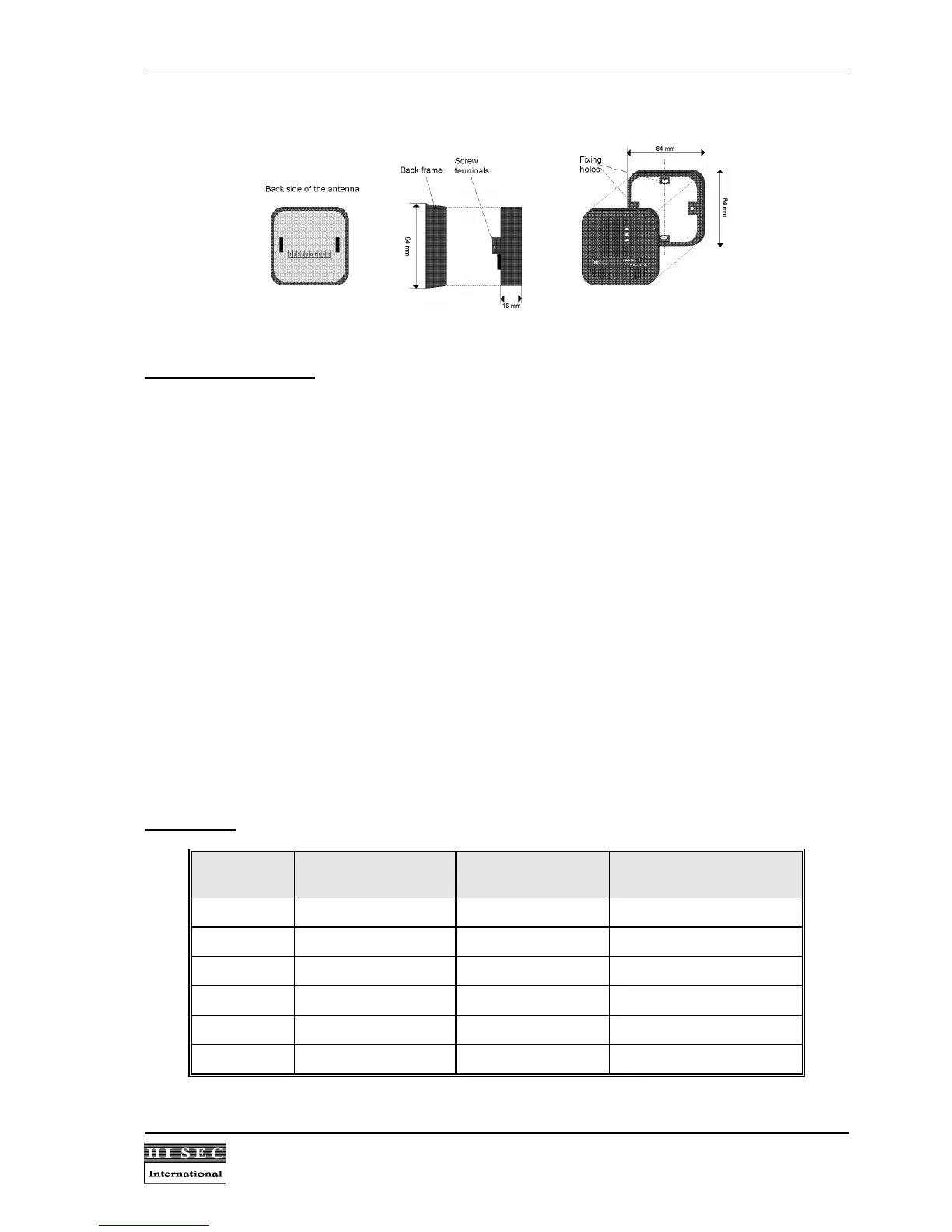

2.8.3 95T PRX 5 proximity antenna.
Please note that the back frame is not included in the 95T PRX5.
Technical Specifications:
Dimensions: 80 x 80 x 16 mm
Operating temperature: -25
0
C to +70
0
C
Power supply: 8 - 14 VDC, < 100 mA
or 5 VDC +/- 10%
Frequency: 125kHz
Reading distance: Up to 12.5 cm depending on
mounting and transponder
type
Material: Black, high-impact ABS
plastic housing, two-
component polyurethane
filling compound.
J4 Jumper setting in 95T ERC: Open (Wiegand)
Max. distance between 95T ERC and antenna: 2,5 m shielded cable using
internal 5V or 50 m using
external 12V supply.
Connections:
Function 95T PRX5 antenna
Terminals
Terminal no. in
95T ERC
Flat-cable from terminal
90T RKP ERC
5 Volt 3 1 ( 5V ) 1 (red or blue)
Data 5 2 ( D0 ) 2
Clock 4 3 ( D1 ) 3
0 Volt 6 4 ( 0V ) 4
Green LED 7 6 ( LED2 ) 6
Red LED 8 5 ( LED1 ) 7
