HI Sec THOR - Single Zone Controller; Measurements and Fixing

Technical Manual
October 1, 1995 18-006/081-04 GB
87
2.6.3 Single zone controller.
The Single Zone Controller is designed to read the codes contained in Cotag coded (Hi Sec format) cards and
Tags. It drives a Reading Head (antenna) or a Loop Coupler for personnel loops (antennas) which detects the
presence of a Tag. The Single Zone Controller monitors the Antenna and reads the code contained in the Tag. If
it is a valid Hi Sec code the Single Zone Controller sends the code to the 90T RKP ERC terminal. The terminal
will then from its database decide if the door can be opened or not.

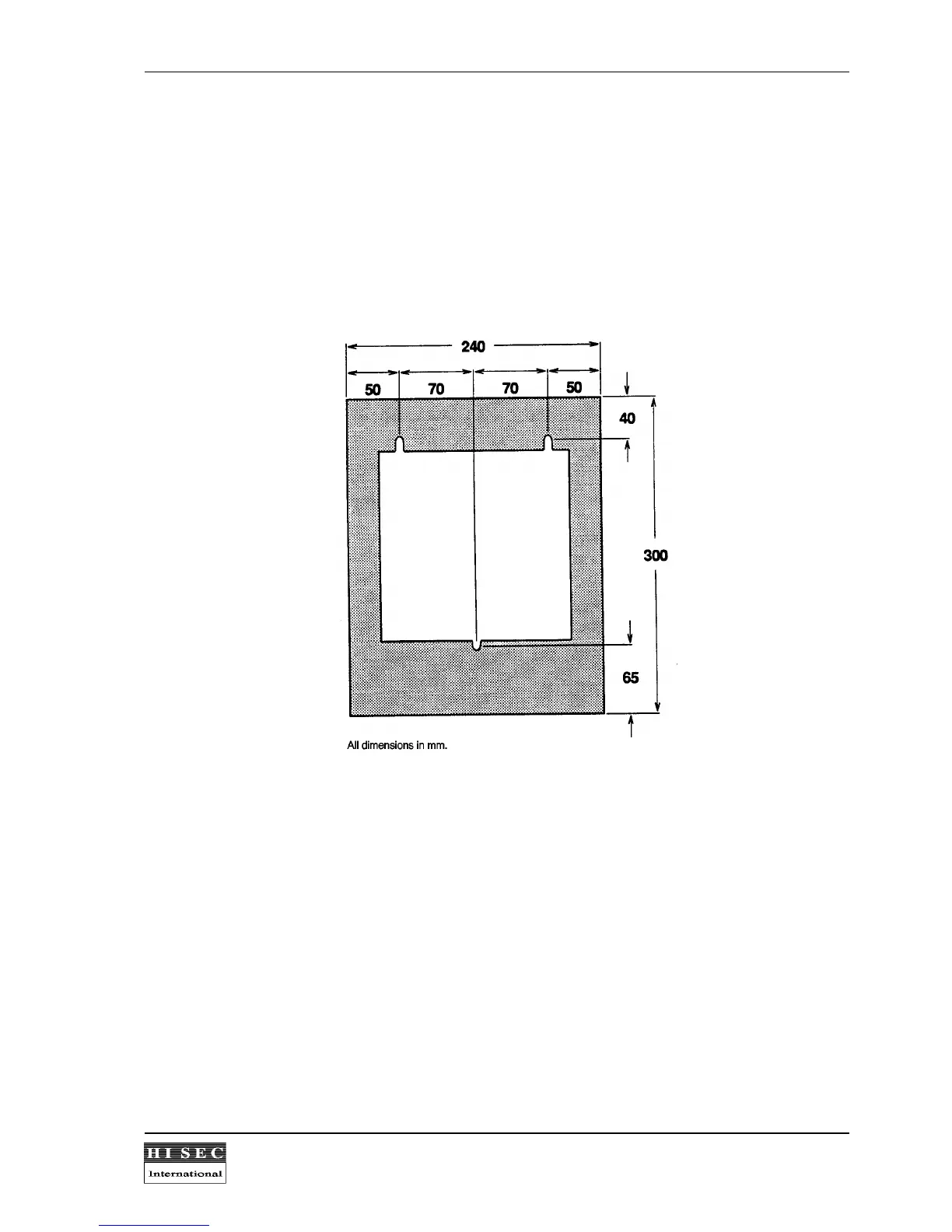

2.6.3.1 Measurements and fixing
.
Electrical characteristics:
Size:
..... ............. ............ ............. .......................... ............. ............ ............. .............
300x240x53 mm
Weight:
............. ............ ............. .......................... ............. ............ ............. .............
2.2 kg
Operating temperature:
.. ............. .......................... ............. ............ ............. .............
0
0
C to +45
0
C
LED indicators:
.. ............ ............. .......................... ............. ............ ............. .............
See following description
Humidity:
........... ............ ............. .......................... ............. ............ ............. .............
90% non-condensing
Max. distance between controller and antenna:
..... ............. ............ ............. .............
300 m (see note)
Max distance between controller and 90T RKP ERC terminal:
........ ............. .............
150 m (see note)
Power supply:
.... ............ ............. .......................... ............. ............ ............. .............
12V DC (+25%, -10%)
............. ............ ............. .......................... ............. ............ ............. .............
max. 500 mA
............. ............ ............. .......................... ............. ............ ............. .............
(Switch mode not
............. ............ ............. .......................... ............. ............ ............. .............
recommended).
Note:
These cable lengths demand screened twisted pair cables type (BELDEN).
