The controllers are configured from the factory with the set-up to be used by the THOR system meaning that no

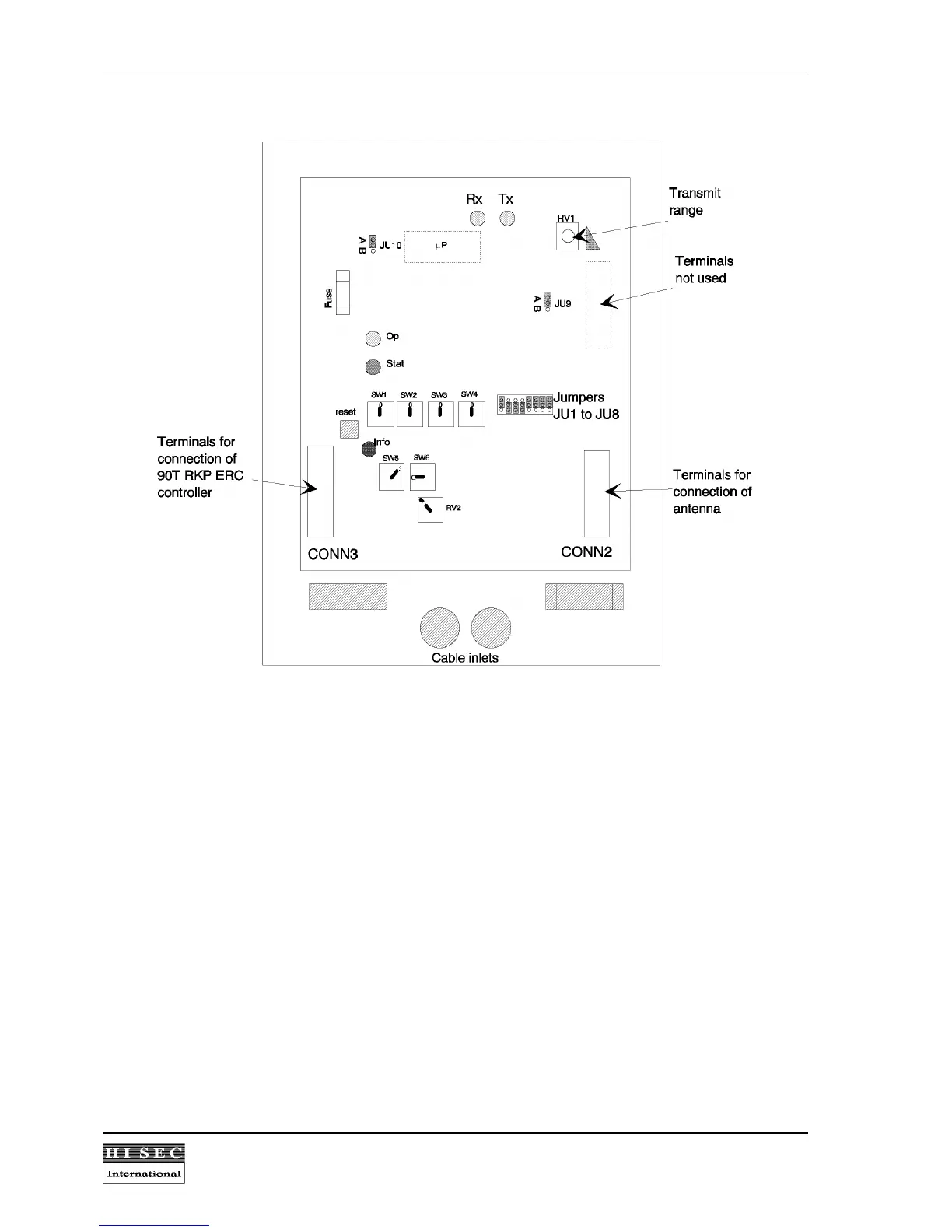

jumpers, switches or potentiometers should be changed. The switch positions can be verified with the above
figure. Only the potentiometer RV1 can be adjusted to reduce the antenna range if needed. The potentiometer is
default set for maximum range.
LED indicators:
Rx
and
Tx
: (yellow) indicate transmit and receive signals to and from the antenna.
Op
: (yellow) Indicates communication between the controller and the THOR terminal. The LED lights
shortly each time a card is recognized with the Hi Sec format.
Sta
(green) and
Info
(red): Only used during production tests.
