When the S-ART's are connected on a cable the signal shape changes a little depending on the cable length.

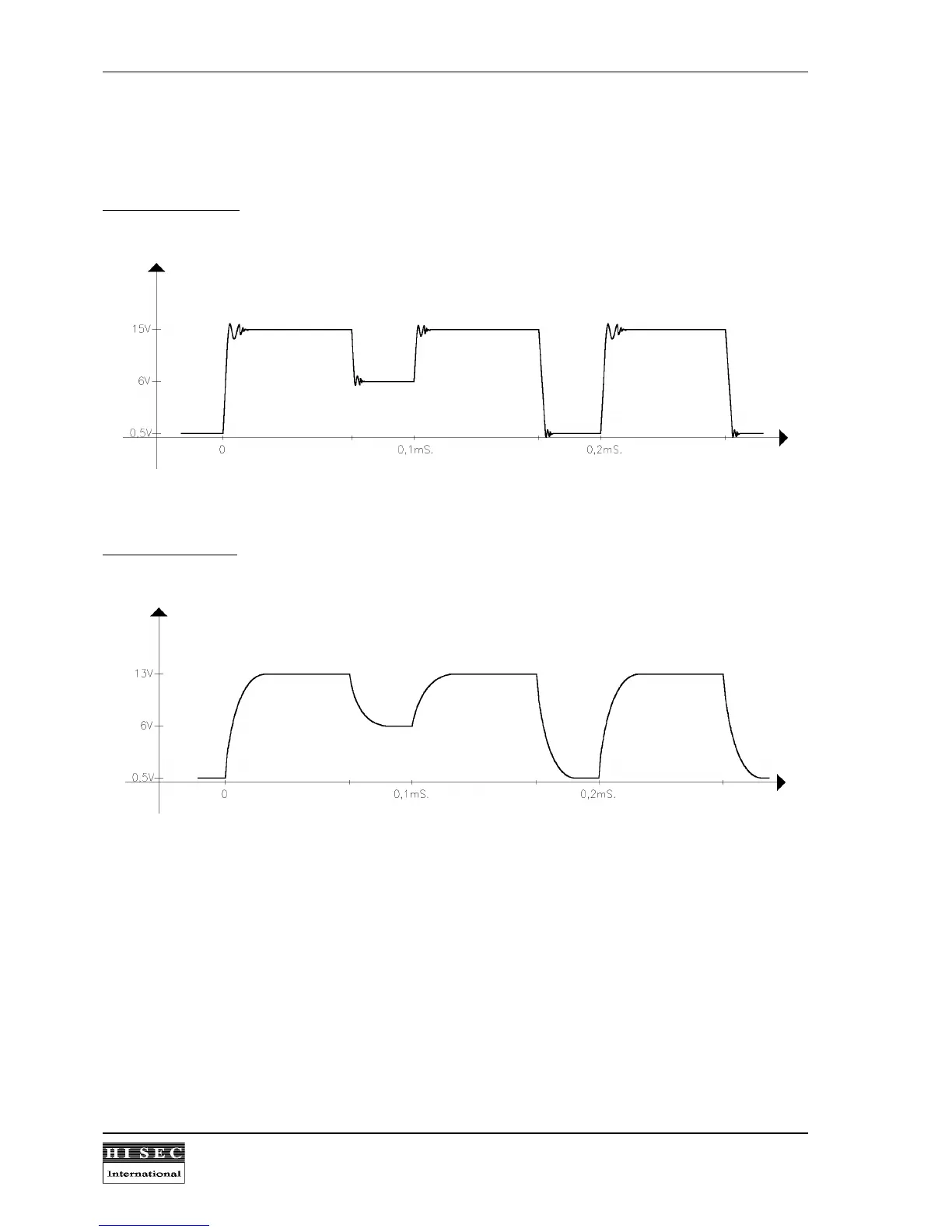

On the following two figures is shown a typically S-ART signal on a 200 m cable and 500 - 700 m cable (6/10
unshielded type).
Short cable (< 200m):
Long cable (> 500m):
