8.1 Outline of External I/O
104
Use the following external I/O connectors or their equivalents:
Compatible
connector
57-30360 (DDK Ltd.)
57E-30360 (DDK Ltd.)
57F-30360 (DDK Ltd.)
57FE-30360 (DDK Ltd.)
RC30-36P (Hirose Electric)
Connector pin
numbering
Connector of the 3174, 3174-01 main unit: 57RE-40360-730B (D29) (DDK Ltd.)

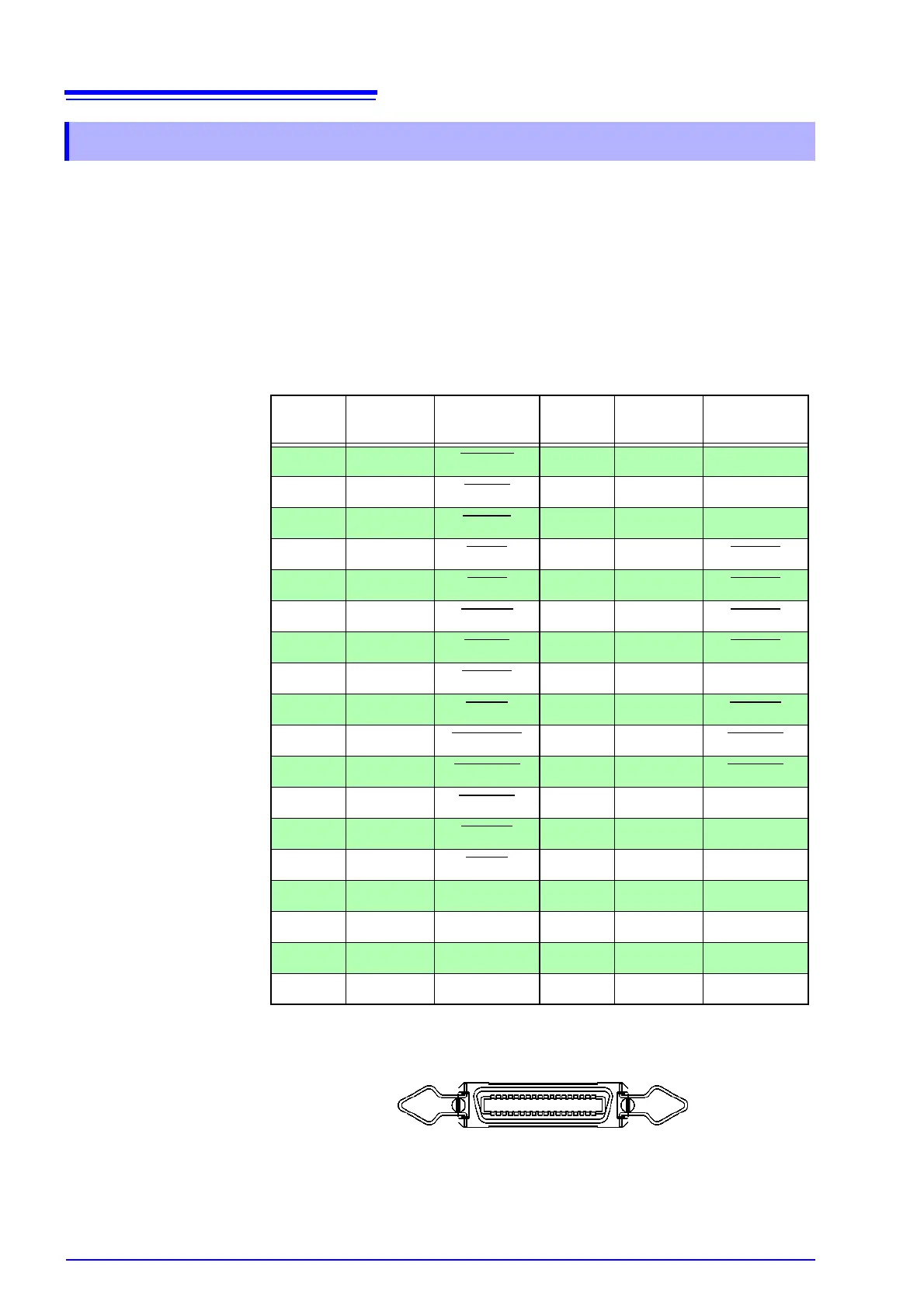

8.1.1 Explanations of signal line
Pin
number
I/O Signal line
name
Pin
number
I/O Signal line
name
1 OUT READY 19 OUT Not used
2OUTL-FAIL20 OUT Not used
3 OUT U-FAIL 21 OUT Not used
4 OUT PASS
22 IN MEM-0
5 OUT TEST 23 IN MEM-1
6OUTH.V.ON24 IN MEM-2
7 IN EXT-E 25 IN MEM-3
8INSTART26 OUT Not used
9 IN STOP 27 IN MEM-E
10 IN INT.LOCK 28 OUT MODE0
11 OUT W-MODE 29 OUT MODE1
12 OUT I-MODE 30 OUT Not used
13 OUT W-FAIL 31 OUT Not used
14 OUT I-FAIL
32 OUT Not used
15 IN ISO.COM 33 OUT ISO.DCV
16 IN ISO.COM 34 OUT ISO.DCV
17 IN ISO.COM 35 OUT ISO.DCV
18 IN ISO.COM 36 OUT ISO.DCV
18 . . . . . . 1
36 . . . . . . 19
