6.7 Insulation-Resistance Test Termination Mode
92
See "Appendix2 List of Optional Functions" (p. A5)
When performing an insulation-resistance test, set whether you want to conduct
the test for the set test time regardless of the decision, terminate the test when
PASS screening is performed, or terminate the test when FAIL screening is per-
formed. (Insulation-resistance mode only.)
0: Test for set time (Timer Ended status mode) (Initial setting)
The test is only conducted for the set time, and the value is decided when the
test is terminated.
When the test time timer is OFF, the tests will continue
with no evaluation.
1: Terminate test at PASS screening (PASS Ended status mode)
The test is terminated when PASS screening is conducted within the set time.
If PASS screening is not conducted within the set time, the test is terminated
when FAIL screening is conducted after the set time.
When the test time tim-
er is OFF, the tests will continue with no evaluation.
2: Terminate test at FAIL screening (FAIL Ended status mode)
The test is terminated when FAIL screening is conducted within the set time
(excluding delay time). If FAIL screening is not conducted within the set time,
the test is terminated when PASS screening is conducted after the set time.
When the test time timer is OFF, the tests will continue with no evaluation.
“6.4 Continuous Test Mode” setting will be ignored.
6.7 Insulation-Resistance Test Termination
Mode
1.
( is lit)
Make sure the lamp is lit on the screen.
* will not be displayed during the Double Action setting.

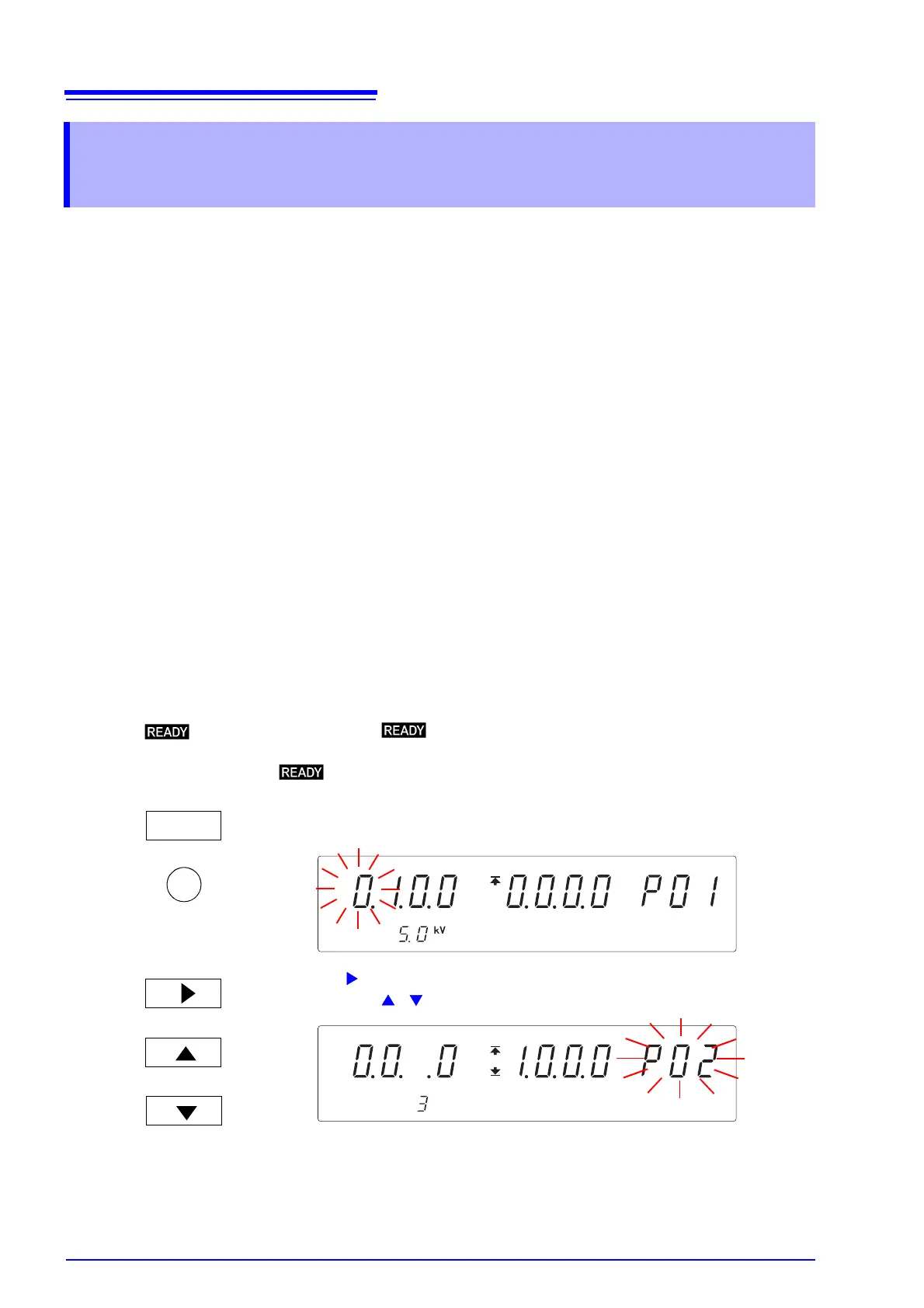

2.
Press the STOP key while holding down the SHIFT key to display the
optional screen (page 1).
3.
Press the key to move the flashing cursor to the position of page, and
then press the
/ keys to display the optional screen (page 2).
SHIFT
STOP
+
or
To Next Page
