9.2 Connection and Setting Procedures
125
99
See "Appendix2 List of Optional Functions" (p. A5)
This function enables selection of the PC interface to be used (at the rear of the
instrument). Make a selection from among RS-232C with a transmission speed
of 9,600 bps, RS-232C with a transmission speed of 19,200 bps, and GP-IB.
However, the GP-IB can only be used with the 3174-01.
9.2.2 Setting the Communication Conditions
1.
( is lit)
Make sure the lamp is lit on the screen.
* will not be displayed during the Double Action setting.
2.

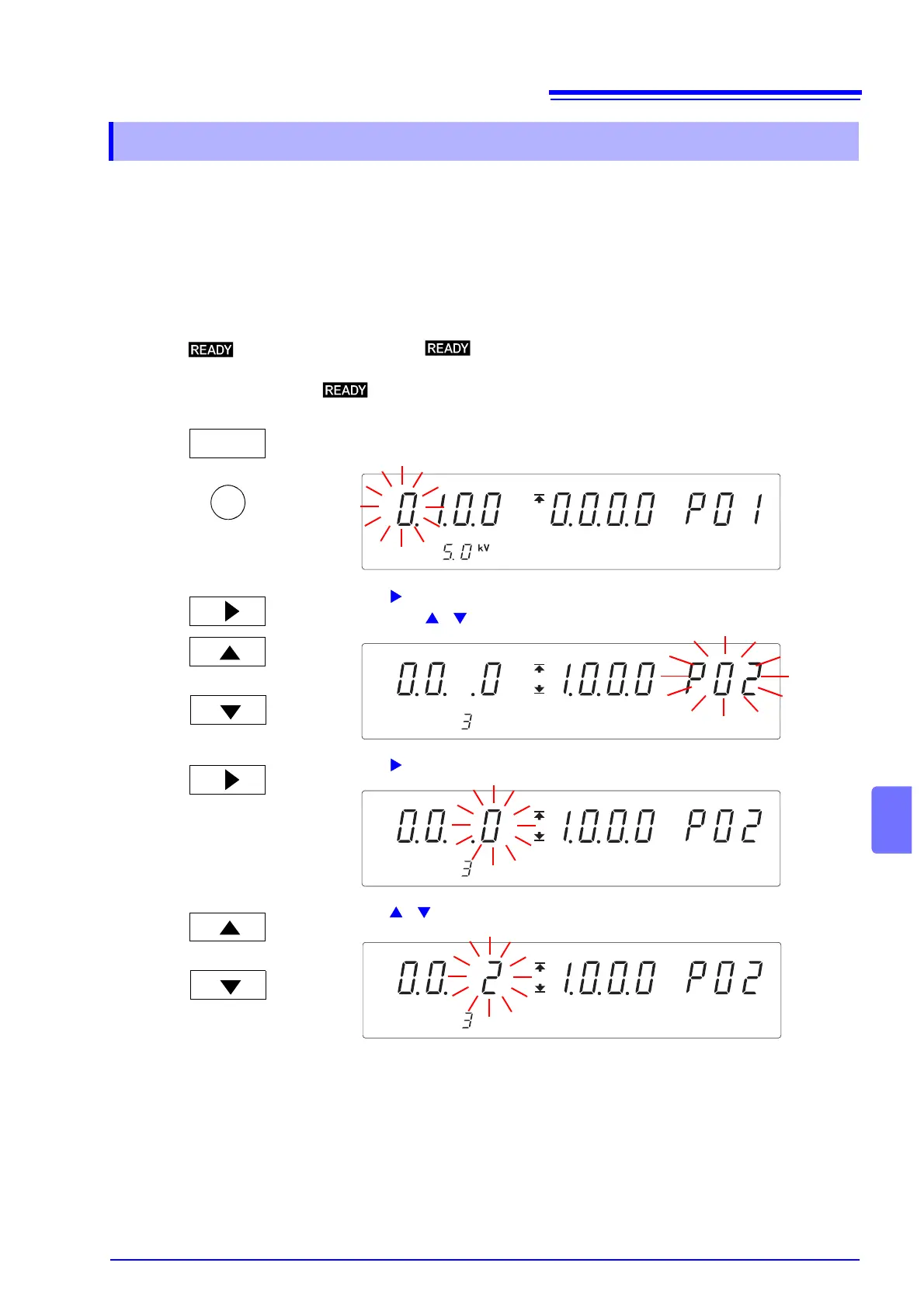

Press the STOP key while holding down the SHIFT key to display the
optional screen (page 1).
3.
Press the key to move the flashing cursor to the position of page, and
then press the
/ keys to display the optional screen (page 2).
4.
Press the key to move the flashing cursor to the position of interface.
5.
Press the / keys to select the mode.
0: RS-232C (PC, 9600 bps) (Default setting)
1: RS-232C (PC, 19200 bps)
2: GP-IB (PC)
SHIFT
STOP
+
or
or
<Ex.> Select GP-IB
To Next Page
