8.3 Inter-lock Function
111
8
See "Appendix2 List of Optional Functions" (p. A5)
The interlock function is a function to shut off power supply to the instrument by
connecting with external devices. When the interlock function is in operation, all
keys are invalid.
When the interlock function is set on the optional functions screen, the Pin 10
INT.LOCK of the external I/O will set the interlock in operation.

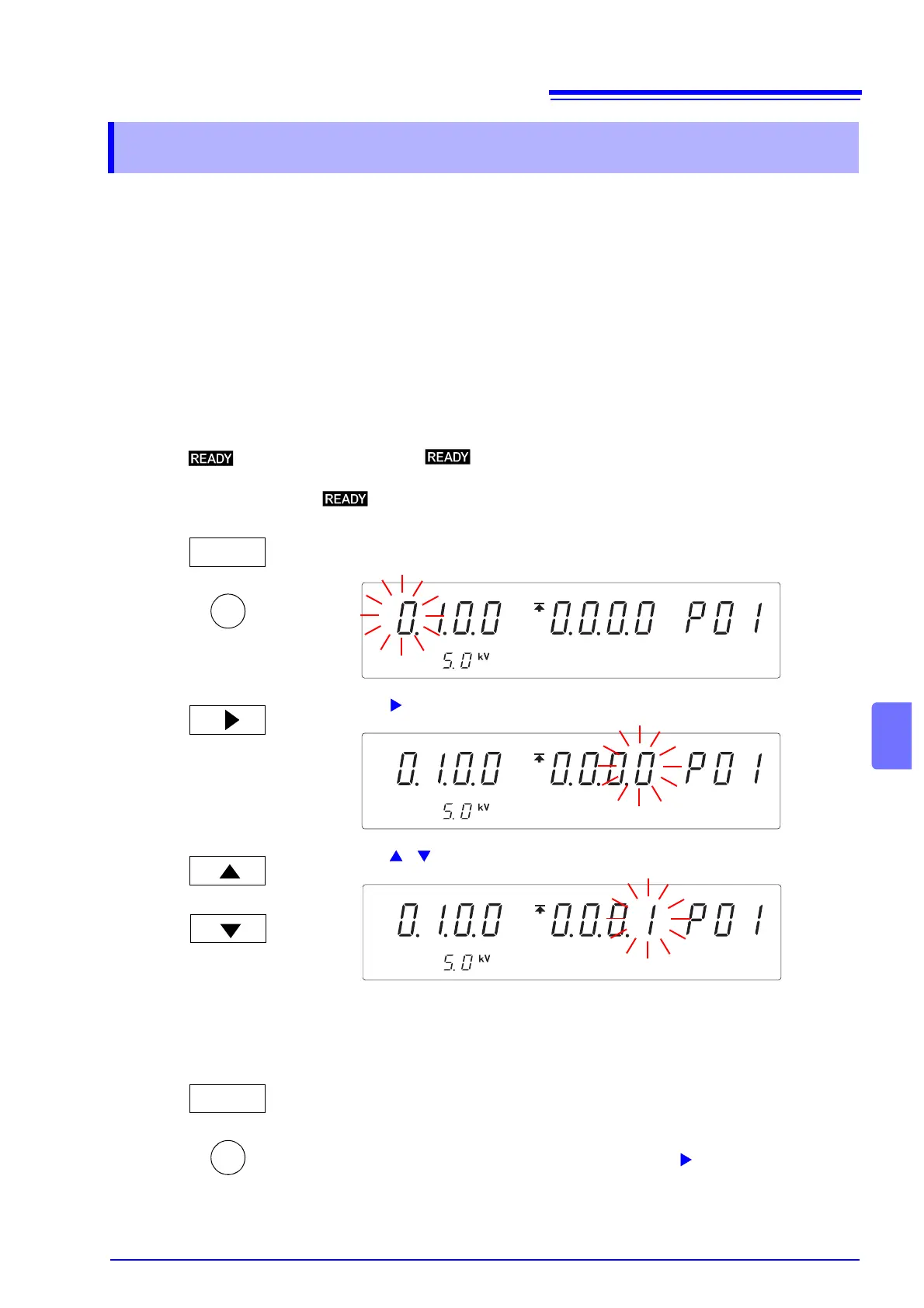

8.3 Inter-lock Function
1.
Connect Pin 10 INT.LOCK on the external I/O to ISO.GND (Pins 15 to
18).
See "Connector pin numbering" (p. 104)
2.
( is lit)
Make sure the lamp is lit on the screen.
* will not be displayed during the Double Action setting.
3.
Press the STOP key while holding down the SHIFT key to display the
optional screen (page 1).
4.
Press the key to move the flashing cursor to the position of inter-lock.
5.
Press the / keys to select the mode.
0: Inter-lock is OFF (Initial setting)
1: Inter-lock is ON
6.
Press the STOP key while holding down the SHIFT key to complete the
setting value.
The instrument reverts to the READY state.
To continue to the setting for the next item, press the key.
SHIFT
STOP
+
or
<Ex.> Inter-lock is set to ON.
SHIFT
STOP
+
To Next Page
