1.5 Testing Process
15
1
Explanation of the basic flow of withstanding and insulation-resistance tests.

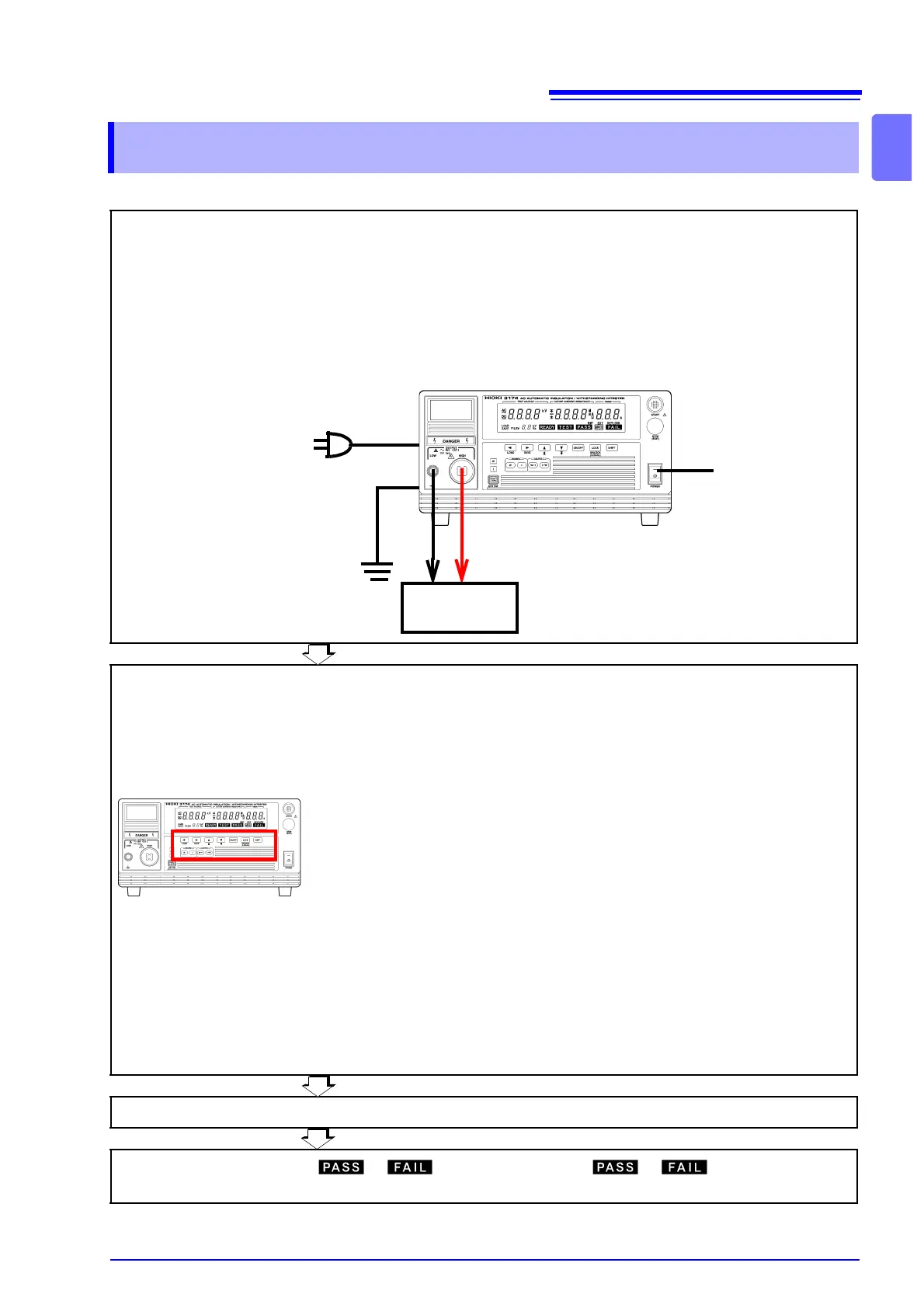

1.5 Testing Process
Testing Arrangements
(p. 17)
1. Connect the protective conductor terminal.
2. Connect the power cord.
3. Connect the test lead. (Voltage output terminal, Contact check terminal)
4. Turn on the power.
5. Carry out pre-test check.
1
2
3
4
ON
Tested object
Withstand-voltage test (p. 29) Insulation-resistance test (p. 47)
Select the test type Press the W key. Press the I key.
Set test conditions 1. Set the test voltage value.
(p. 32)
1. Set the test voltage value.
(p. 50)
2. Set the upper (lower) limit value.
(p. 33)
2. Set the upper (lower) limit value.
(p. 51)
3. Set the test time timer.
(p. 34)
3. Set the test time timer.
(p. 53)
4. Set the ramp-up (ramp-down)
timer. (p. 35)
4. Set the delay time. (p. 54)
5. Set the test-frequency. (p. 36)
6. Set the Initial voltage for ramp-up.
(p. 37)
Set the upper-limit voltage and lower-limit voltage for Contact Check, if neces-
sary.
(p. 38) (p. 55)
Executing a test Press the START key. (p. 40) Press the START key. (p. 57)
Displaying the test result
or is displayed.
(p. 44)
or is displayed.
(p. 61)
To Next Page
