3.4 Displaying the Test Result
46
Test is unsuccessful when lights up. display will be retained.
(default condition)
To return to the READY state, press the STOP key, which will cancel the FAIL
Hold function.
In normal tests, it takes about 100 ms for the instrument to detect FAIL until the
output voltage is OFF.
3.4.2 "FAIL" Determination
When a current 1.5 times higher than the upper-limit test value is flowing while
performing a withstand-voltage test, the voltage is immediately blocked by the
insulation circuit, resulting in an UPPER FAIL. In such cases, the measured cur-
rent value is not displayed correctly. The current value is not displayed, and
“- - - “ will appear.
To delete the held value shown when the test ended in FAIL.
See "6.2.2 FAIL Hold" (p. 86)

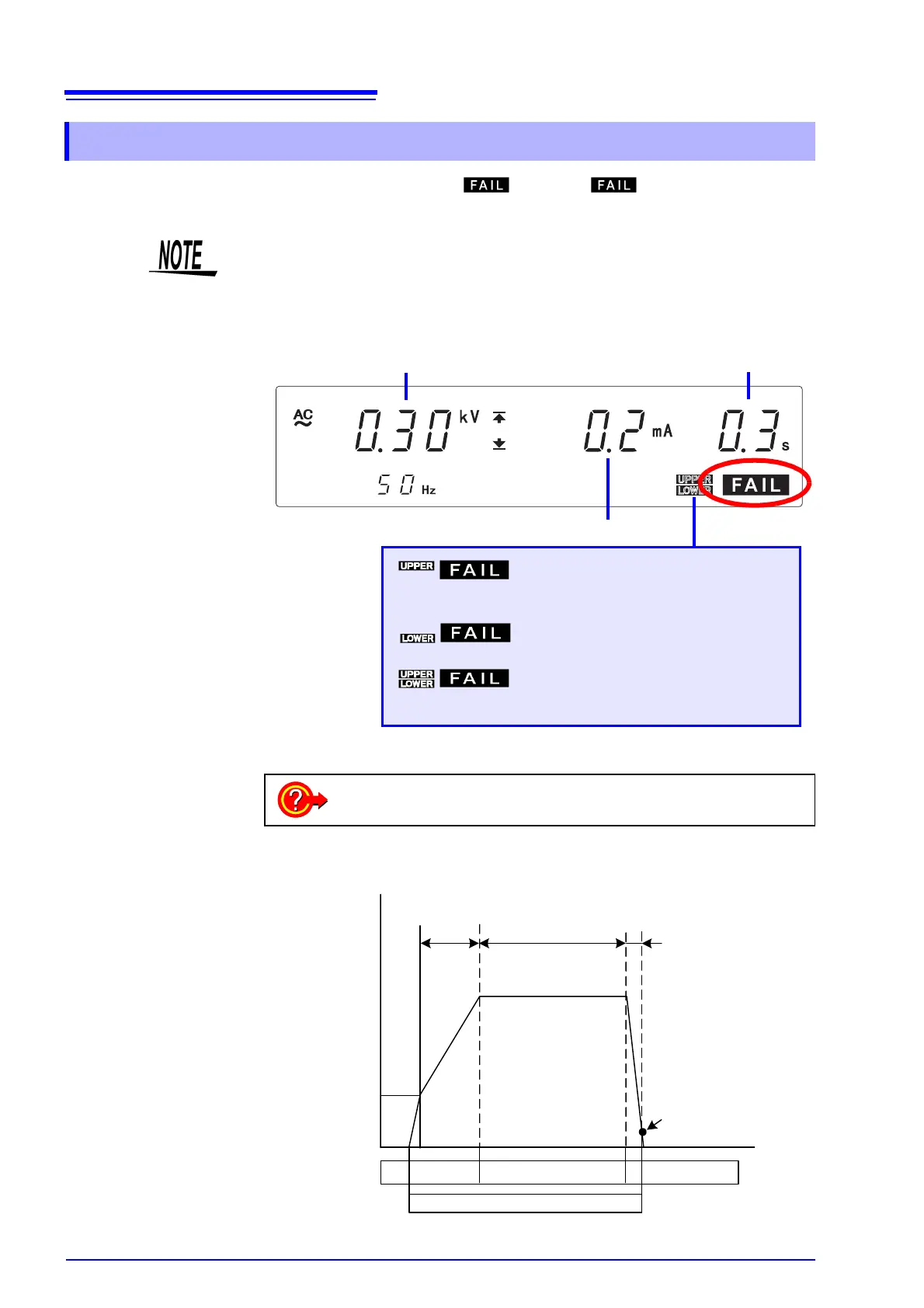

Voltage-value in the FAIL state
Current-value in the FAIL state
Remaining test-time (test-time: ON)
Voltage output time (test-time: OF
Indicates current measurement value
higher than the upper-limit test value
Indicates current measurement value
lower than the lower-limit test value
Indicates test abnormalities such as the
output voltage not reaching the set volt-
age.
DANGER is lit
READY
TEST
FAIL
UPPER/LOWER
TEST
flashes
※
※
Test voltage
Initial
voltage for
ramp-up
Ramp-up
time
Set test time
Ramp-down
time
TEST
flashes
0.03 kV AC
