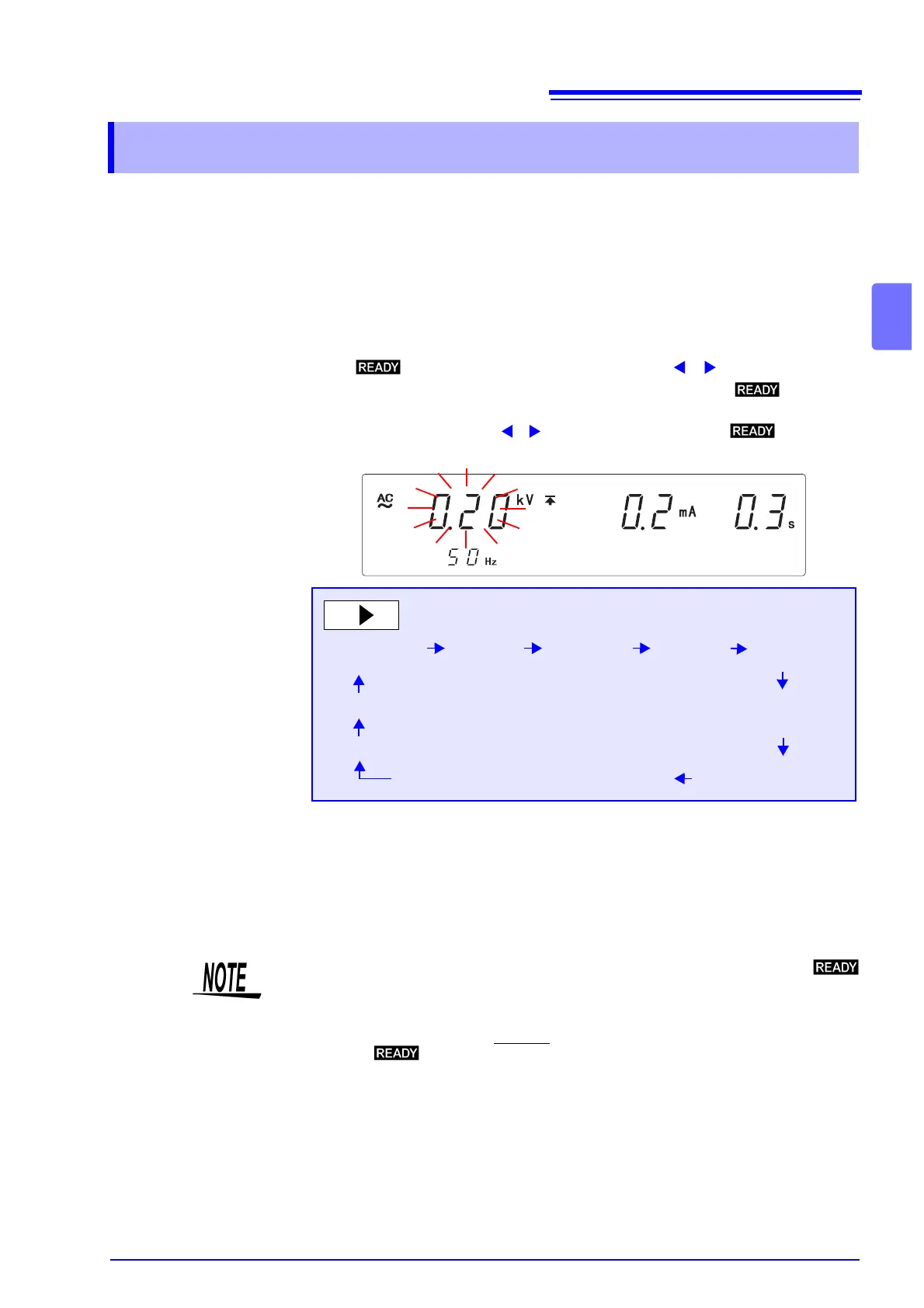

3.1 Setting the Test-Conditions
31
3
For safety reasons, be sure to carry out pre-test check (p. 26) before setting
the test conditions.
Setting the test conditions.
Pre-set test conditions can be retrieved to carry out the test.
See "7.2 Loading the Test Conditions" (p. 102)
Test setting
state
When lights up on the screen, pressing the / key will change the
status to the test conditions status. The test voltage will flash ( will go off).
Set the test conditions in this status.
When Double Action is set, / key is enabled even when is not lit.
If the item is not needed in the test, set it to OFF using the ON/OFF key. How-
ever, the test-voltage value, the upper-limit test value, and the test-frequency
cannot be set to OFF.
Pre-set test conditions can be saved. (p. 99)
The initial voltage for ramp-up is displayed only when ramp-up time is set.
3.1 Setting the Test-Conditions
test-voltage
value
upper-limit
test value
lower-limit
test value
test-time
ramp-up time
ramp-down time
test-frequency
(Initial voltage for ramp-up)
lower-limit for Contact Check voltage
upper-limit for Contact Check voltage
• In the test setting state, the test cannot start. Test will only start when
lights up.
• Indicates the voltage for the output terminal in Test-voltage value in READY
and test status.
•
When lights up, READY for EXT I/O turns Lo at the same time.
