2.4 Connecting the Test Lead
23
2
When not using the Contact Check Function, connect the test lead as follows.
2.4.2 When not using the Contact Check Function

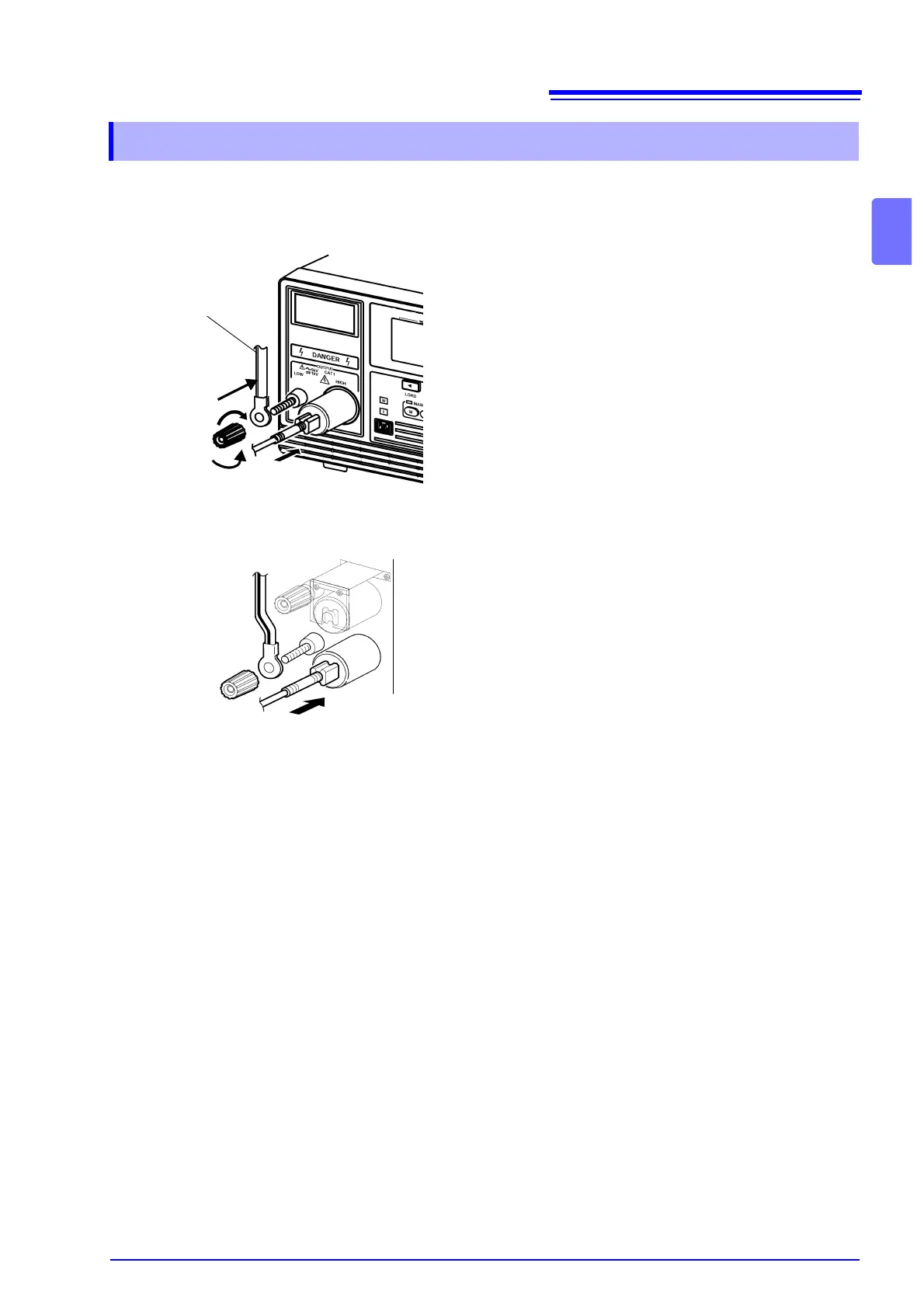

1. Remove the LOW voltage output terminal
by turning it counterclockwise.
2. As shown in the left figure, insert the plug
on the H.V. Test Lead (low voltage side).
3. Secure the LOW voltage output terminal
by turning it clockwise.
4. Connect the plug on the H.V. Test Lead
(high voltage side) to the HIGH voltage
output terminal.
5. Connect in the same way when using the
voltage output terminals on the back of the
instrument as well.
6. Connect the test lead of the LOW voltage
output terminal to the tested object.
Ensure the connection is secure so that it
will not come off during the test.
7. Connect the test lead of the HIGH voltage
output terminal to the tested object as
well.
When the front terminal is used
3
1
4
2
5
When the back terminal is used
The H.V. Test Lead
(low voltage side)
To Next Page
