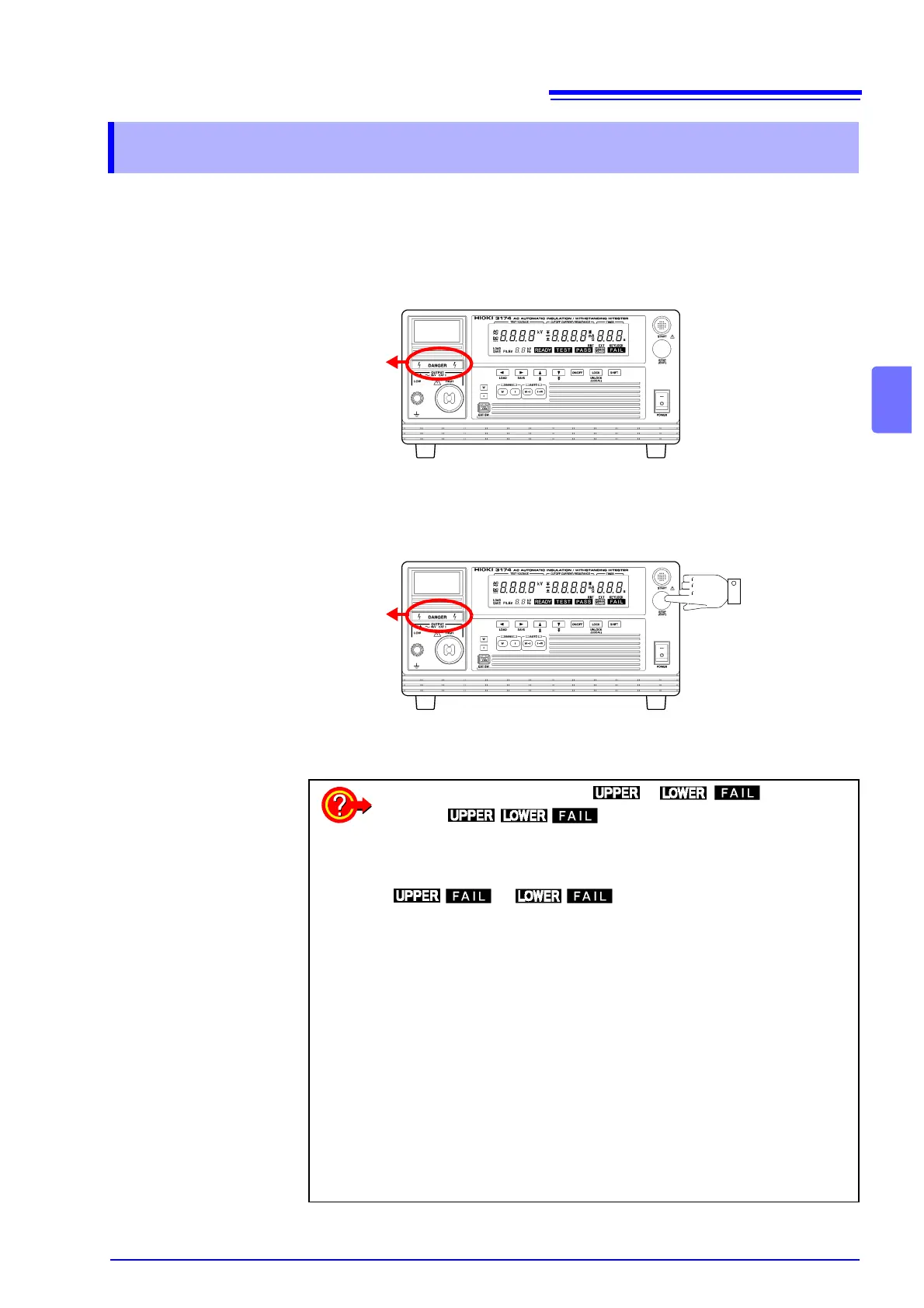

4.3 Terminate the Test
59
4
When the test-time is set
Test will automatically stop when the test is carried out during the pre-set
test time.
When the test-time has not been set
Press the STOP key to terminate the test.
Forcibly terminate
Pressing the STOP key during the test will forcibly stop the test.
4.3 Terminate the Test
Front panel
Off
Front panel
Off
Test forcibly stopped when / judgment is
shown ( all light up)
• During the test, if the output voltage deviates from test-voltage
and does not return to the set value within 5 seconds.
• If the output voltage does not reach the set test-voltage.
or
• When the test time timer is activated, and a resistance measure-
ment value higher or lower than the upper and lower-limits test
values is reached during testing when “FAIL Completion” is set.
• When the test time timer is activated, and time continues to pass
when a resistance measurement value higher or lower than the
upper and lower-limits test values is reached even when “Timer
Completion” is set.
• When the test time timer is activated and “PASS Completion” is
set, duration of test time in the case when the resistance mea-
surement value is beyond the upper or lower limit values.
To show test results even when test is forcibly terminated.
See "6.3 Evaluate even for forced termination of test" (p. 88)
To hold the value shown when test is forcibly terminated.
See "6.2.3 STOP Hold" (p. 87)
