9.4 Message Reference
182

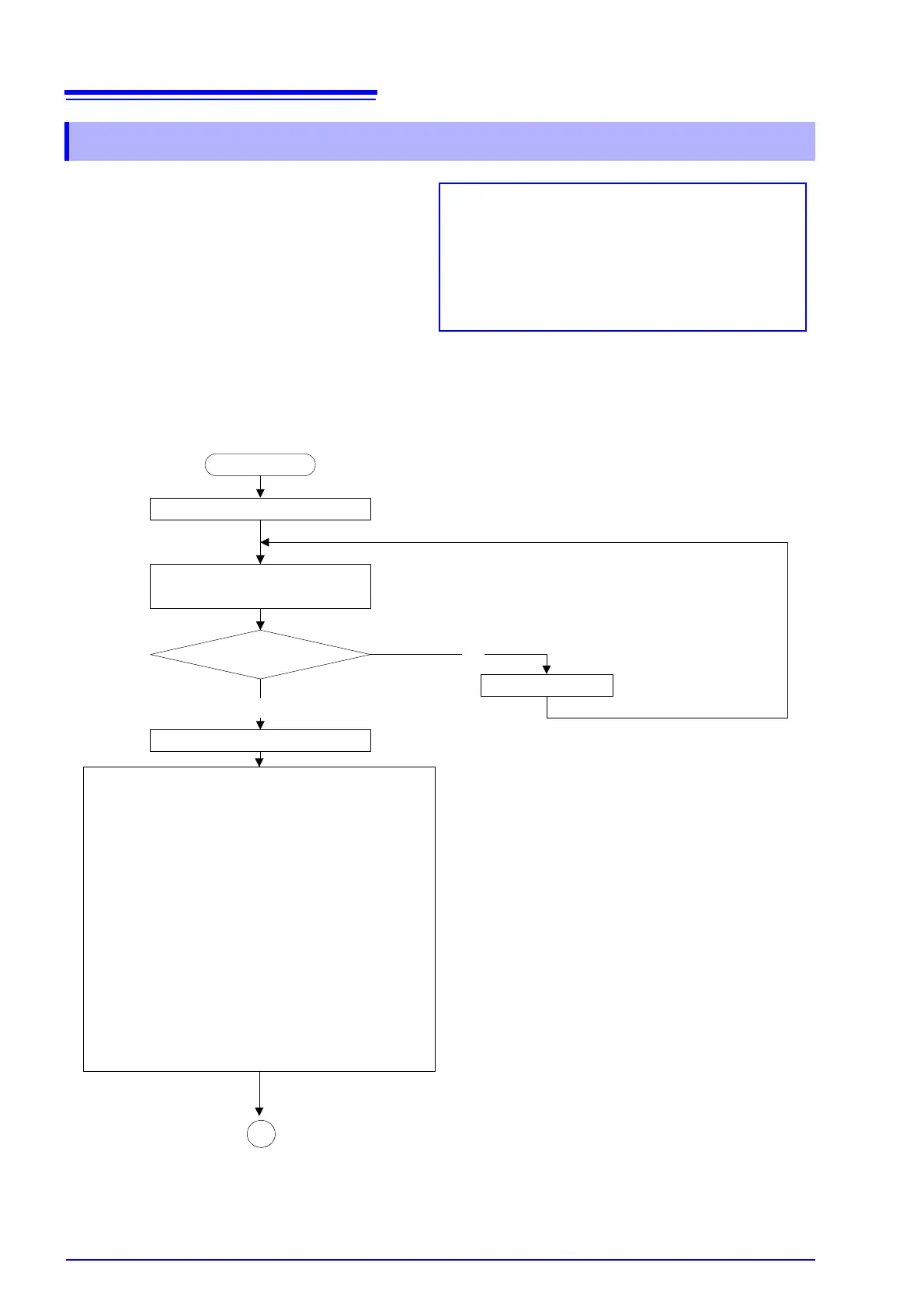

9.4.4 Sample program Flowchart
Basic settings and measurements of
withstand-voltage test
Set the test settings of 3174 as follows.
• Test-voltage : 1.00 kV
• Lower-limit test value : OFF
• Upper-limit test value : 1.0 mA
• Test time : 60.0 s
• Ramp-up time : 5.0 s
• Ramp-down time : OFF
• Type of voltage : 60 Hz AC
• Initial voltage for ramp-up: 0.5
• Upper-limit voltage for contact check: 1.10 kV
• Lower-limit voltage for contact check: 0.90 kV
Execute the test once, and show the data on the display.
Pre-set the contents of the Optional Function Setting as
follows.
• Double Action: 0 (OFF)
• Interface Command "START": 1 (Start command
valid, changing the voltage supplied using keys not
possible)
• PC interface: Set the PC interface to be used. When
GP-IB is used, set the GP-IB address.
Transmission ":STOP"
Open communication line
No
Response=
WREADY or IREADY?
Confirm status:
WREADY or IREADY
HOLD release
Yes
Test setting
Header : OFF
Test-voltage : 1.00 kV
Lower-limit test value ON/OFF: OFF
Upper-limit test value : 1.0 mA
Test-time ON/OFF : ON
Test time : 60.0 s
Ramp-up time ON/OFF : ON
Ramp-up time : 5.0 s
Ramp-down time ON/OFF : OFF
Type of voltage : 60 Hz AC
Initial voltage for ramp-up : 0.5
Upper-limit voltage for contact check ON/OFF: ON
Upper-limit voltage for contact check : 1.10 kV
Lower-limit voltage for contact check ON/OFF: ON
Lower-limit voltage for contact check : 0.90 kV
Transmission ":STAT?"
Transmission ":HEAD OFF"
Transmission ":CONF:WITH:VOLT 1.00"
Transmission ":WITH:CLOW OFF"
Transmission ":CONF:WITH:CUPP 1.0"
Transmission ":WITH:TIM ON"
Transmission ":CONF:WITH:TIM 60.0"
Transmission ":WITH:UTIM ON"
Transmission ":CONF:WITH:UTIM 5.0"
Transmission ":WITH:DTIM OFF"
Transmission ":CONF:WITH:KIND AC60"
Transmission ":CONF:WITH:VINI 0.5"
Transmission ":WITH:CNHI ON"
Transmission ":CONF:WITH:CNHI 1.10"
Transmission ":WITH:CNLO ON"
Transmission ":CONF:WITH:CNLO 0.90"
Start
Select the Test mode： W mode
Transmission ":MODE MWITH"
1
