6.1 Functions for carrying out the tests safely
80
See "Appendix2 List of Optional Functions" (p. A5)
The momentary out function allows the test only while the START key is held
down. Releasing the START key is equivalent to pressing the STOP key and
ends the test.
To perform PASS/FAIL screening, hold down the START key until the preset test
time elapses. During the "6.3 Evaluate even for forced termination of test" (p.
88) setting, evaluation will take place when the START key is released.
The START key on the remote control box or the START signal via external I/O
has the same effect.

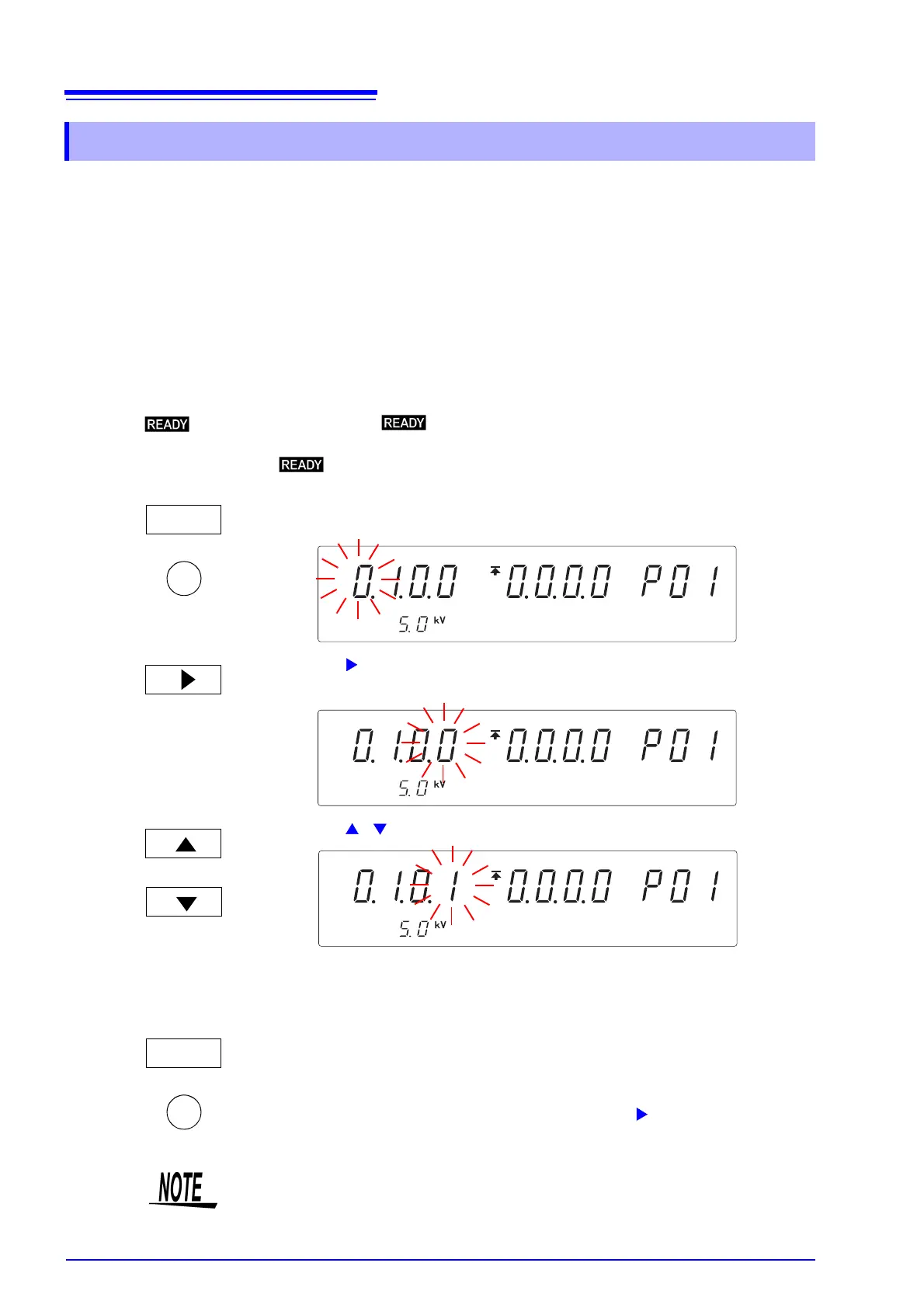

6.1.2 Momentary Out
1.
( is lit)
Make sure the lamp is lit on the screen.
* will not be displayed during the Double Action setting.
2.
Press the STOP key while holding down the SHIFT key to display the
optional screen (page 1).
3.
Press the key to move the flashing cursor to the position of momentary
out
.
4.
Press the / keys to select the mode.
0: Momentary out is OFF (Initial setting)
1: Momentary out is ON
5.
Press the STOP key while holding down the SHIFT key to complete the
setting value.
The instrument reverts to the READY state.
To continue to the setting for the next item, press the key.
SHIFT
STOP
+
or
<Ex.> Momentary out is set to ON.
SHIFT
STOP
+
There is a priority hierarchy for the START keys.
Priority hierarchy: Remote Control Box > EXT I/O > Front panel of the 3174
(3174-01)
