5.3 Terminate the Test
73
8
9
付録
索引
10
11
5
Automatically stops when the withstanding test and insulation-resistance
test stop.
Forcibly terminate
Press the STOP key to terminate the test.
During consecutive testing, a test judgment in a forced termination cannot be
carried out.

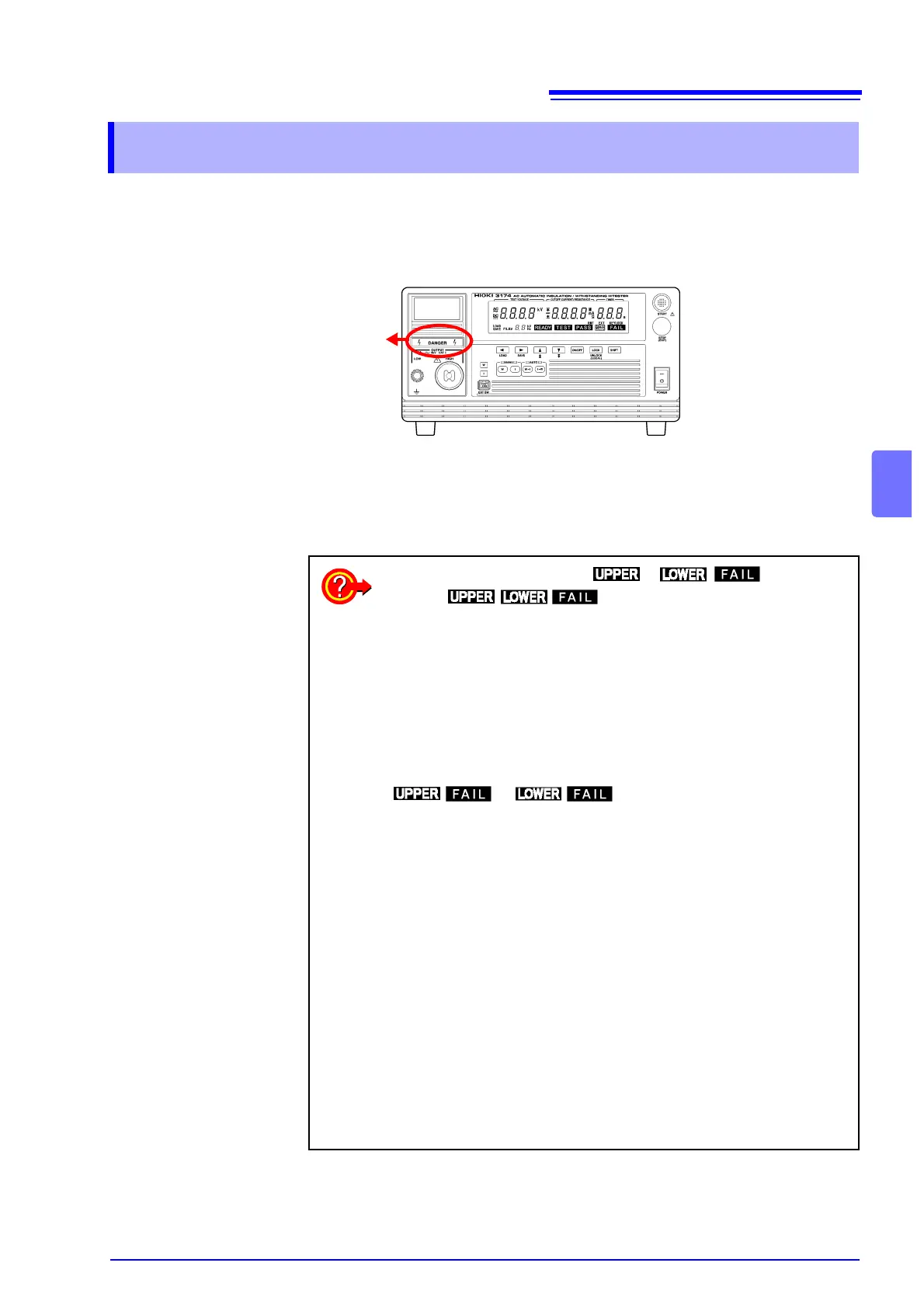

5.3 Terminate the Test
Front panel
Off
Test forcibly stopped when / judgment is
shown ( all light up)
In the withstand-voltage test:
• During the test, if the output voltage deviates from test-voltage
and does not return to ±30 V of the set value within 5 seconds.
• If the test voltage does not reach ±30 V of the set test-voltage.
In the insulation-resistance test:
• During the test, if the output voltage deviates from test-voltage
and does not return to the set value within 5 seconds.
• If the test-voltage does not reach the set test-voltage.
or
• In the withstand-voltage test, if the measured-current value
exceeds the upper- or lower-limit test value during the test-time.
• In the insulation-resistance test, when the test time timer is acti-
vated, and a resistance measurement value higher or lower than
the upper and lower-limits test values is reached during testing
when “FAIL Completion” is set.
• In the insulation-resistance test, when the test time timer is acti-
vated, and time continues to pass when a resistance measure-
ment value higher or lower than the upper and lower-limits test
values is reached even when “Timer Completion” is set.
• In the insulation-resistance test, when the test time timer is acti-
vated and “PASS Completion” is set, duration of test time in the
case when the resistance measurement value is beyond the
upper or lower limit values.
To hold the value shown when test is forcibly terminated.
See "6.2.3 STOP Hold" (p. 87)
