6.1 Functions for carrying out the tests safely
83
6
See "Appendix2 List of Optional Functions" (p. A5)
Enable this function to set the upper-limit for the voltage to be output by this
instrument.
Set the value in the range of 0.2 kV to 5.0 kV (in 0.1-kV steps, effective value).
Only available for withstanding test.
When the factory default is set to 5.0 kV.

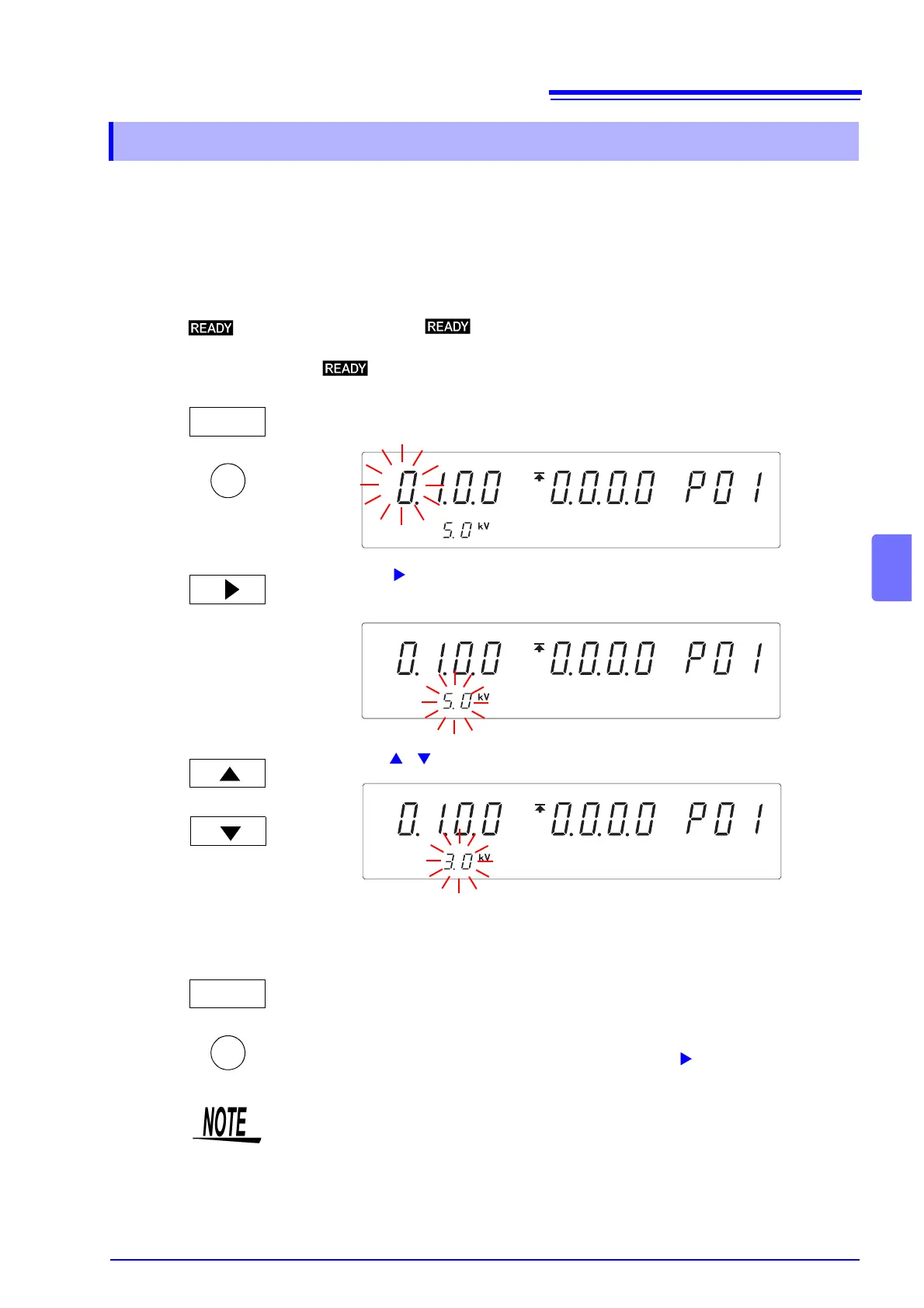

6.1.5 Output-Voltage Restricting
1.
( is lit)
Make sure the lamp is lit on the screen.
* will not be displayed during the Double Action setting.
2.
Press the STOP key while holding down the SHIFT key to display the
optional screen (page 1).
3.
Press the key to move the flashing cursor to the position of output-
voltage restricting.
4.
Press the / keys to select the mode.
Setting range: 0.2 to 5.0 kV (The value changes by 0.1 kV.)
(Initial setting: 5.0 kV)
5.
Press the STOP key while holding down the SHIFT key to complete the
setting value.
The instrument reverts to the READY state.
To continue to the setting for the next item, press the key.
SHIFT
STOP
+
or
<Ex.> Set to 3 kV.
SHIFT
STOP
+
• If the set test voltage is greater than the voltage value set here, an error will
occur upon startup of the test (the test-voltage value flashes), and it will not be
possible to conduct the test.
• If the test-voltage value that is loaded by loading a set value is greater than
the set upper-limit, an error will occur upon startup of the test (the test-voltage
value flashes), and it will not be possible to conduct the test.
