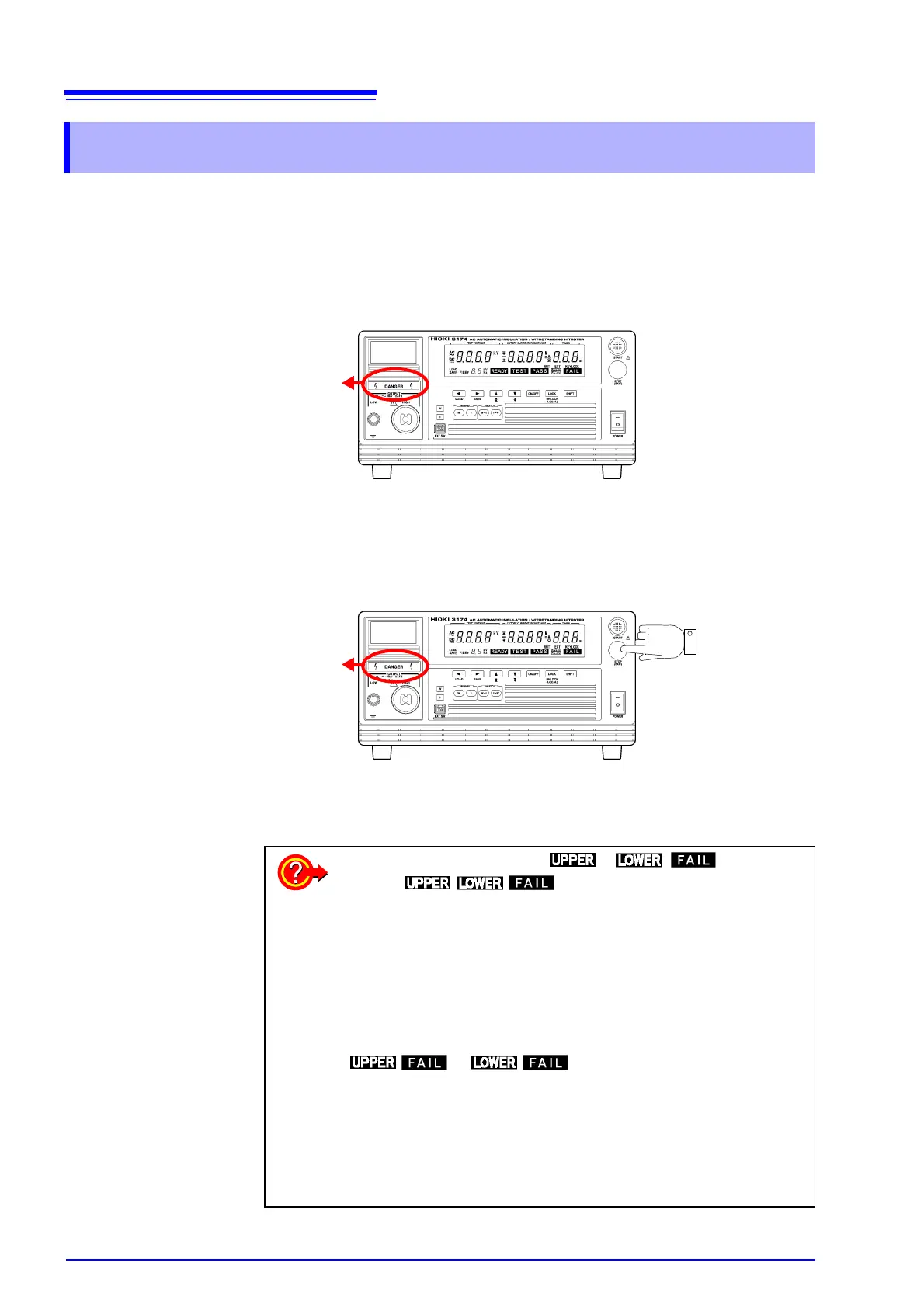

3.3 Terminate the Test
42
When the test-time is set
Test will automatically stop when the test is carried out during the pre-set
test time.
When the test-time has not been set
Press the STOP key to terminate the test.
Forcibly terminate
Pressing the STOP key during the test will forcibly stop the test.
3.3 Terminate the Test
Front panel
Off
Front panel
Off
Test forcibly stopped when / judgment is
shown ( all light up)
• During the test, if the output voltage deviates from test-voltage
and does not return to ±30 V of the set value within 5 seconds.
• If the output voltage does not reach ±30 V of the set test-volt-
age.
• If the output voltage fails to reach ±30 V of the test-voltage
within approximately 5 seconds after completion of the ramp-up
time.
or
• If the measured-current value exceeds the upper- or lower-limit
test value during the test-time.
To show test results even when test is forcibly terminated
See "6.3 Evaluate even for forced termination of test" (p. 88)
To hold the value shown when test is forcibly terminated
See "6.2.3 STOP Hold" (p. 87)
