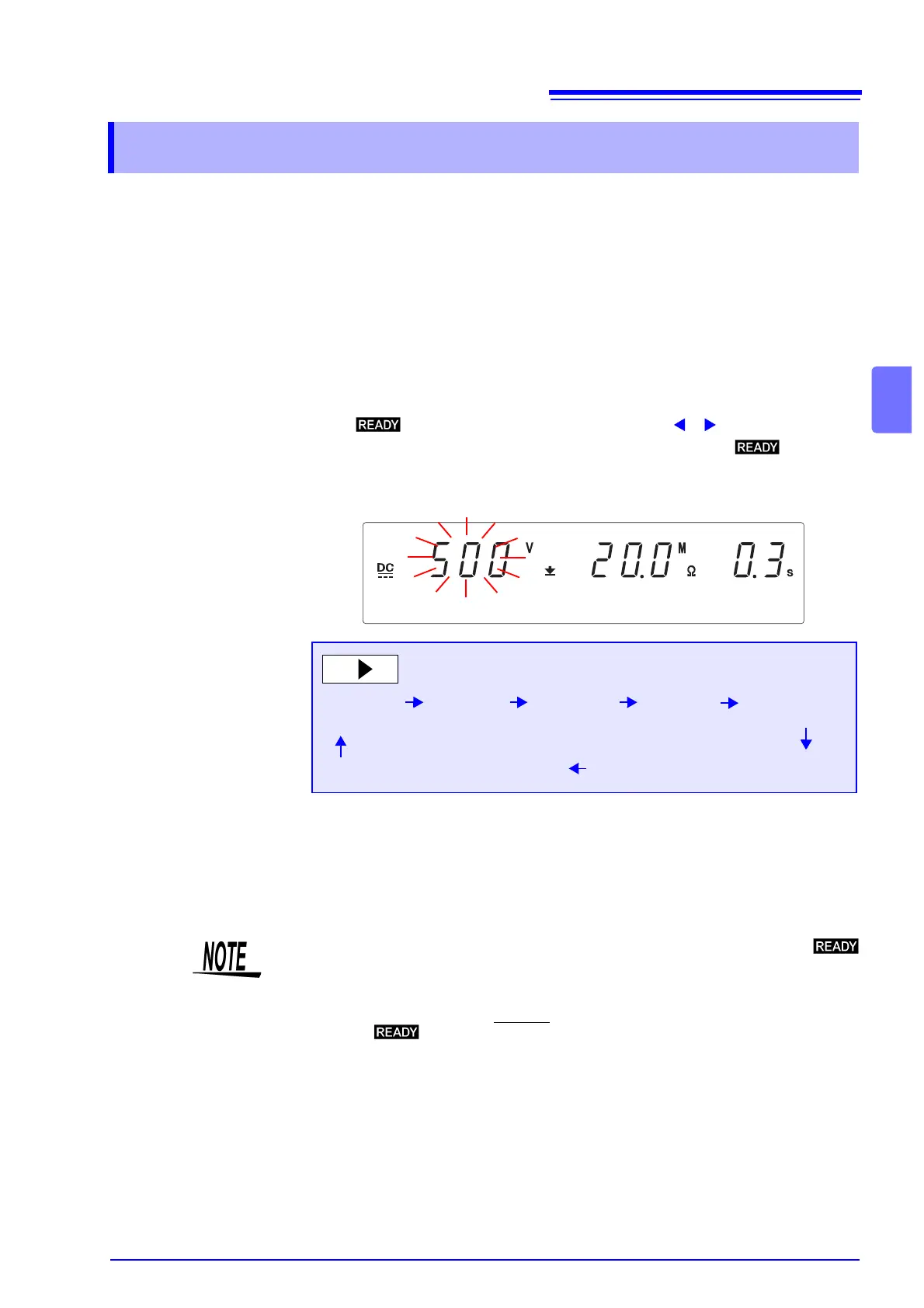

4.1 Setting the Test Conditions
49
4
For safety reasons, be sure to carry out pre-test check (p. 26) before setting
the test conditions.
Setting the test conditions.
Pre-set the insulation-resistance test termination mode for the optional functions.
See "6.7 Insulation-Resistance Test Termination Mode" (p. 92)
Pre-set test conditions can be retrieved to carry out the test.
See "7.2 Loading the Test Conditions" (p. 102)
Test setting
state
When lights up on the screen, pressing the / key will change the
status to the test conditions status. The test voltage will flash ( will go off).
Set the test conditions in this status.
If the item is not needed in the test, set it to OFF using the ON/OFF key. How-
ever, the test-voltage value and the lower-limit test value cannot be set to OFF.
Pre-set test conditions can be saved.
See "7.1 Saving the Test Conditions" (p. 99)
4.1 Setting the Test Conditions
test-volt-
age value
delay time
upper-limit
test value
lower-limit
test value
test-time
contact check upper-limit voltage
contact check lower-limit voltage
• In the test setting state, the test cannot start. Test will only start when
lights up.
• Indicates the voltage for the output terminal in Test-voltage value in READY
and test status.
•
When lights up, READY for EXT I/O turns Lo at the same time.
To Next Page
