4.4 Displaying the Test Result
64

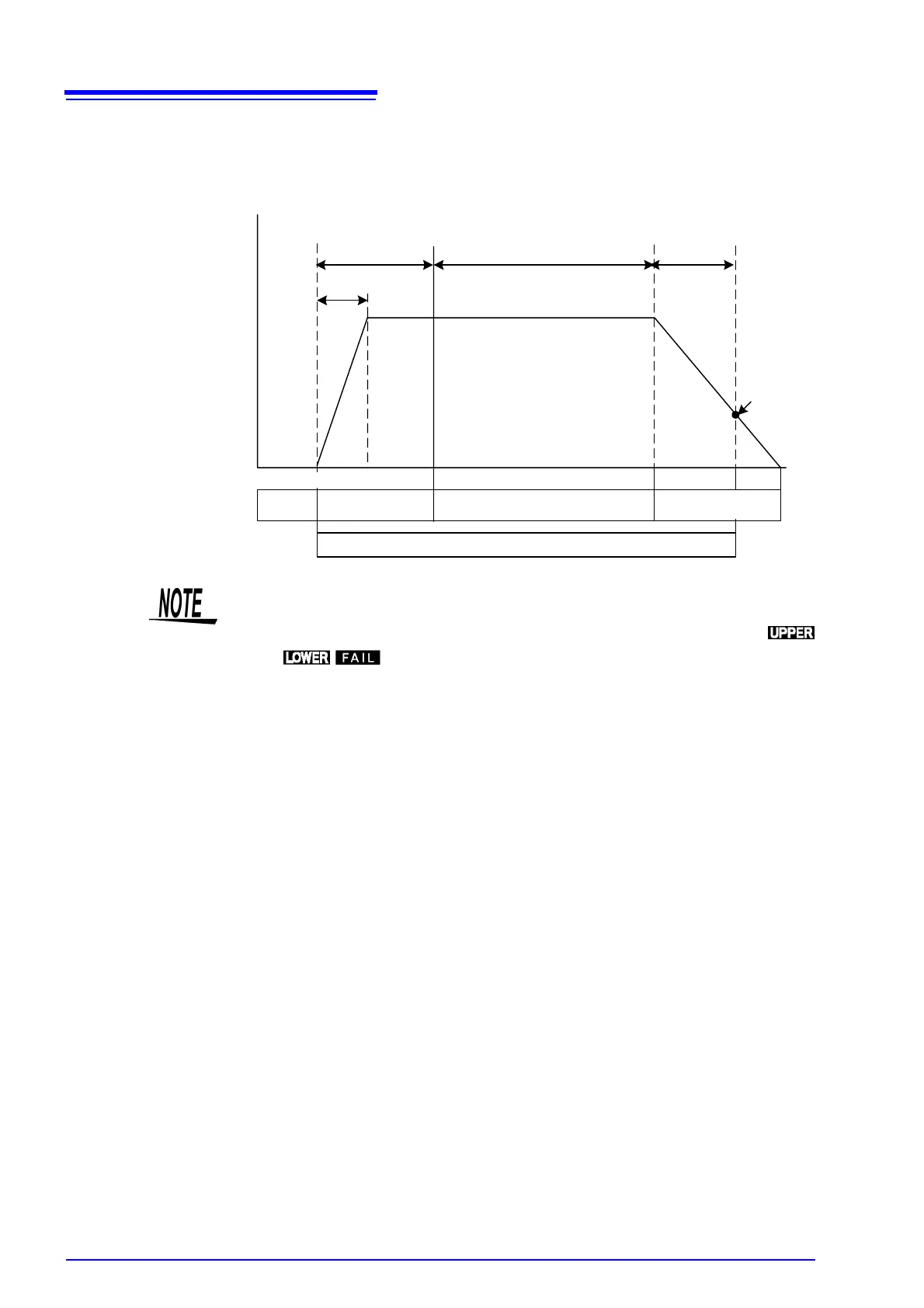

Installation Flow of FAIL determination
(Timer stops: See "6.7 Insulation-Resistance Test Termination
Mode" (p. 92))
READY TEST
FAIL
（UPPER/LOWER）
DANGER is lit
START
TEST
flashes
Test voltage
Set delay time
(Undetermined
period)
Set test time
Discharge
time
60 V DC
Time to
increase
the voltage
Tim
• When the optional "Insulation-Resistance Measurement Range" function is
set to "1: Auto Range", it takes up to 1.5 s to display the resistance value.
When the test finishes before the preset test time, test may end in
.
• When a fixed range is set, “O.F.” will show when the value is beyond the
range’s measurements and “U.F.” will show when the value is lower than the
measurement range.
• During Auto Range evaluation “O.F.”, “U.F.” will be shown when the instru-
ment’s measurement ranges are exceeded.
