Hitachi P-N23NA2 Service Manual

9 Servicing
RPK-FSN(H)3M - Wall mounted
SMGB0099 rev.0 - 12/2016
310

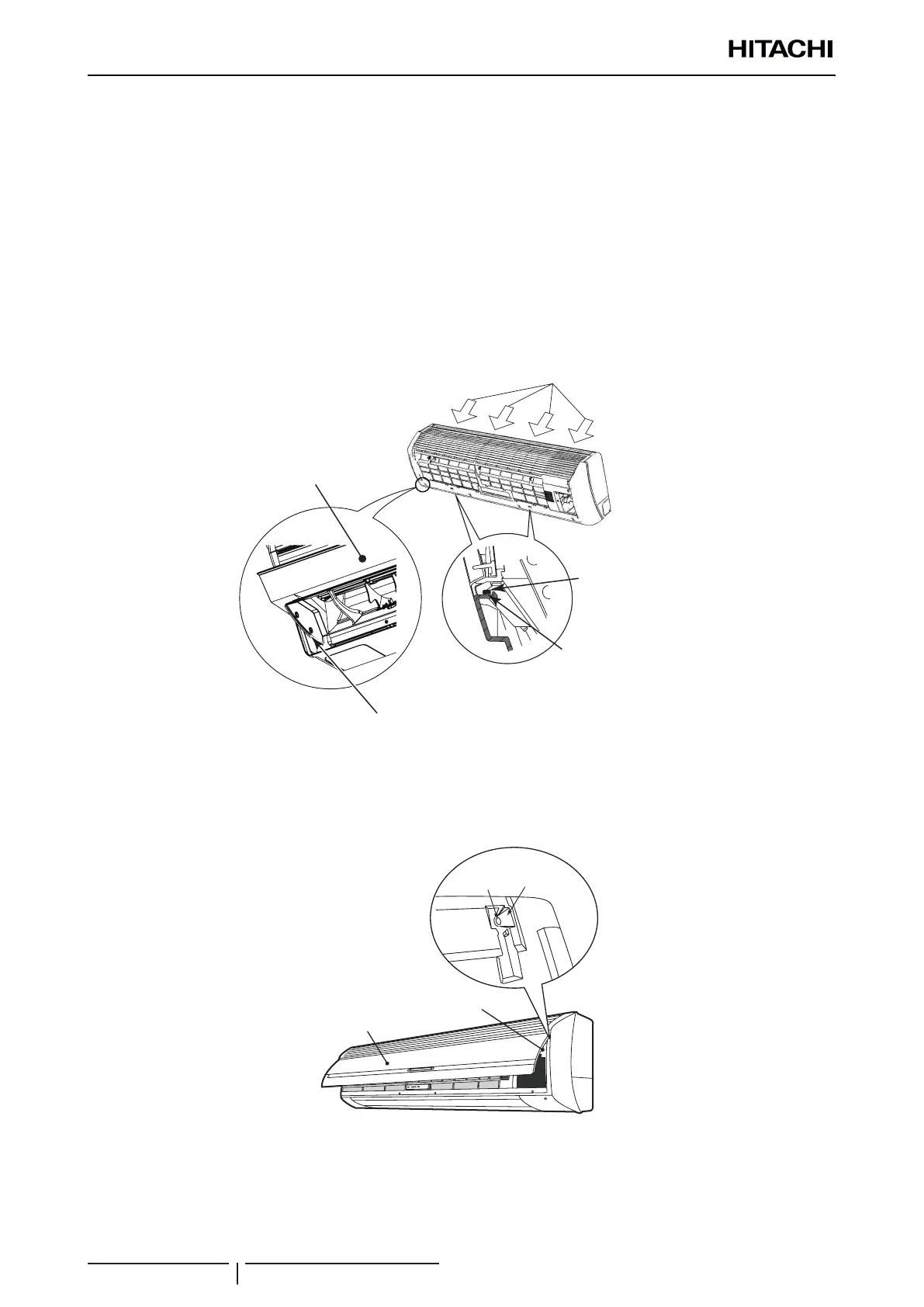

5 When mounting the front panel, be careful that it does not touch the horizontal louver. Paying attention to both sides
of the panel, put the catches (four portions) on the upper side of the unit into the holes on the panel. Then push the
lower side of the panel (2 portions) to fasten the catches.
? NOTE
Make sure that there is no gap nor lap between the front panel and the left side of the drain pan. If there is a gap there, an air leakage
and dew condensation may occur and the dew may drop on the front panel.
6 Tighten 3 screws and attach 3 bushes. And then mount the air lter.
7 Insert completely the arm shafts of left and right side of the panel into the holes along the guide of the front panel.
After the at panel is attached properly, close the at panel.
Make sure there is no lap
between the front panel and
the left side of the drain pan
ୗഃ୰ኸ∎  ࣧᡤ 
Catches on lower side
of front panel
Drain pan projection
portion for catches
Drain pan
Put 4 catches on the upper
side of the unit into the holes
on the front panel
Attaching at panel
Insert completely the left and right arm shafts of at panel into the holes along the guide at the front panel. After the at
panel is attached completely, insert the catches for air lter to x.
Flat panel
Front panel
Hole
Guide at
front panel
