9 Servicing

RPK-FSN(H)3M - Wall mounted

SMGB0099 rev.0 - 12/2016

318

4 When mounting the drain pan, mount it in the reverse procedure. Make sure that the catches xing the drain pan,

mentioned in the procedure (3), are fastened.

Fixing

catch

(C)

Fixing

catch (B)

Fixing

catch (A)

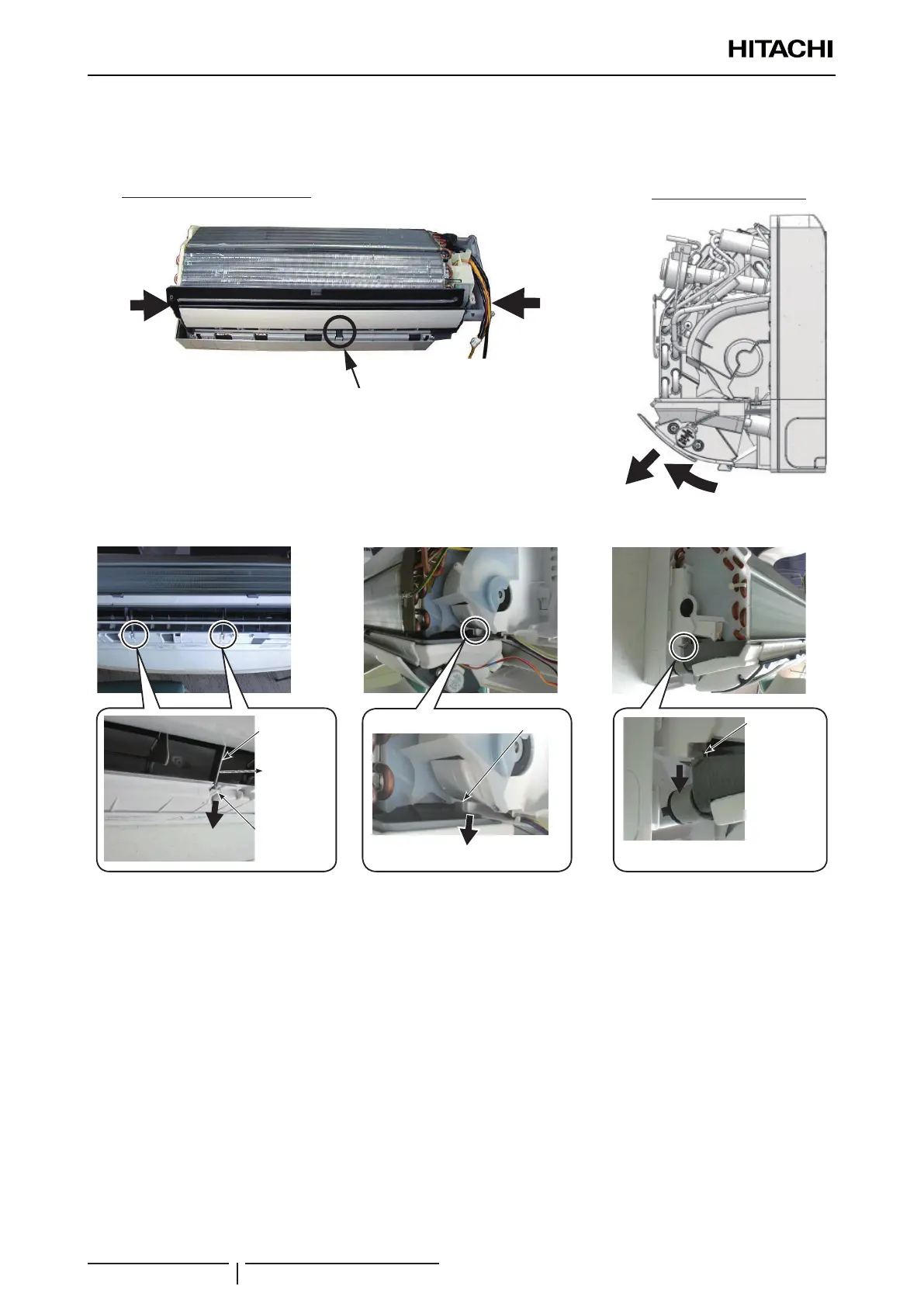

Positions of xing catches for drain pan

(Example: 1.5HP)

Direction for removing drain pan

2. Pull the drain pan frontward

and downward

1. Draw the drain pan

frontward

(A)

(B)

(C)

Center pole

of drain pan

Pull the drain

pan frontward

Fixing catch

for drain pan

Fixing catch for drain pan

Release the catch in the direction

of the arrow

Release the catch in the direction

of the arrow

Fixing catch

for drain pan
