9 Servicing
RPK-FSN(H)3M - Wall mounted
SMGB0099 rev.0 - 12/2016
319
9
For RPK-(2.0-4.0)FSN(H)3M
1 Remove the front panel according to the “9.9.2 Removal of the front panel” chapter.
2 Remove the electrical box according to the “9.9.7 Removing Electrical Box” chapter.

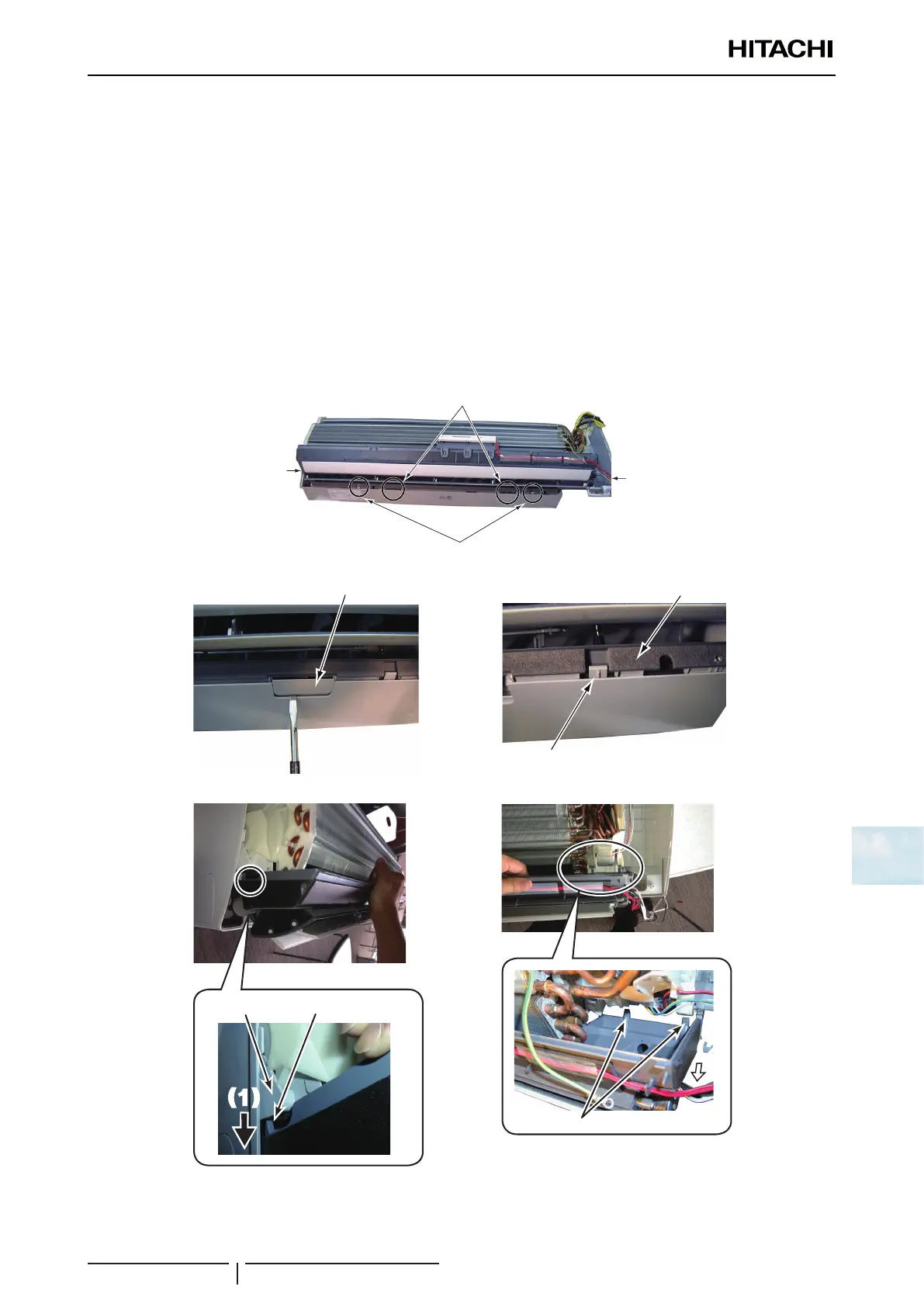

3 Remove the louver cover (A) (2 portions) attached to the lower part of the cabinet with a slotted screwdriver.
4 Remove 2 hooks (B) for the drain pan.
? NOTE
Before removing the drain pan, check that the drain hose is not xed. If the drain hose is rmly xed, the drain pan cannot be removed.
5 Remove 3 catches at (C) and (D) in the following procedure. Apply a force in the direction of the arrow (1) and
release 1 catch (C) xing the drain pan to the cabinet. Then apply a force in the direction of the arrow (2) and release
2 catches (D). Remove the drain pan.
6 When mounting the drain pan, mount it in the reverse procedure.
(D)
Ỉཷᅛᐃ∎
1
( )
2
( )
Louver cover (A)
Drain pan
Hook for drain pan
Cabinet
Catches for drain pan
Catches for drain pan
? NOTE
The catches are hidden from view by the fan motor.
The gure above shows an example with the fan motor
removed.
