7. Installation

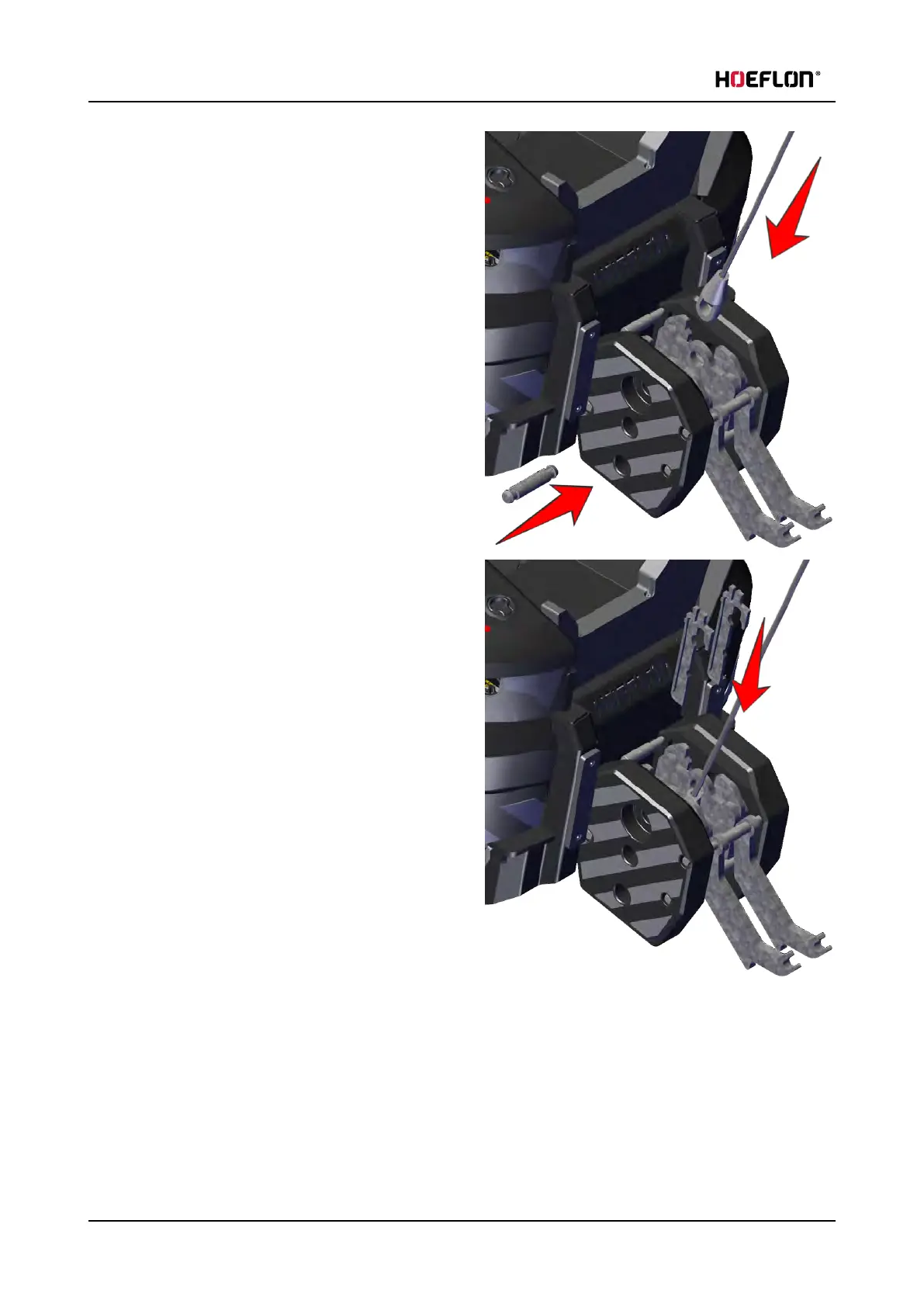

10. Move the cable into the hook block.
11. Align the eye in the cable central hole in the hook
block.
12. Push the small shaft back into the central hole in
the hook block and through the eye of the cable.
13. Push the forks of the clamp keys together and
push the clamp keys back in.
14. Release the forks.
15. Make sure that the clamp keys are inserted and
locked correctly.
90 U.C30e.00.00.EN Version
