11.
Transport and storage
11.1 Transporting a crane
11.1.1 Put the crane in transport position
1. Remove any loads from the crane.
2. Turn the superstructure so that it is in line with
the undercarriage.
l

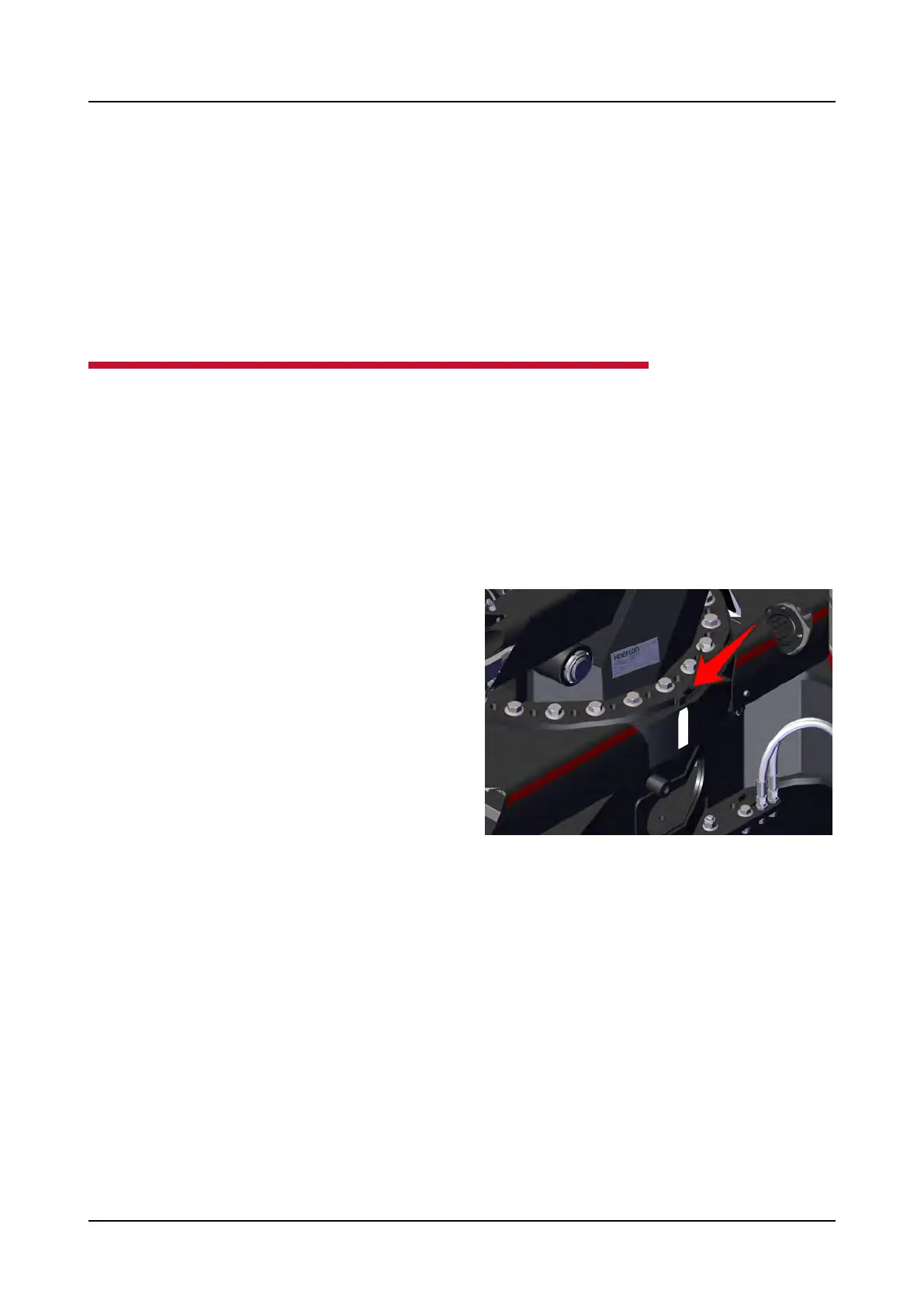

Align the lug on the column with the white
target mark on the slewing ring.
l
The target mark is on the left side of the
crane.
3. Remove all attachments and put them in their
storage positions.
4. Fully wind the winch cable on the winch.
5. Fully retract the jib.
6. Turn the jib under the boom.
7. Fully retract the ballast.
8. Fully retract the boom.
9. Fully lower the boom.
10. Move the outrigger extensions back into the outriggers (see 7.6 Using the outrigger extensions).
11. Retract the outriggers.
12. Put the outriggers UP.
13. Turn the feet in their storage position (vertical).
14. Remove the key.
