HOEFLON C30e - Searcher Hook; Winch Head

7.10 Attaching an attachment
7.10.3 Searcher hook

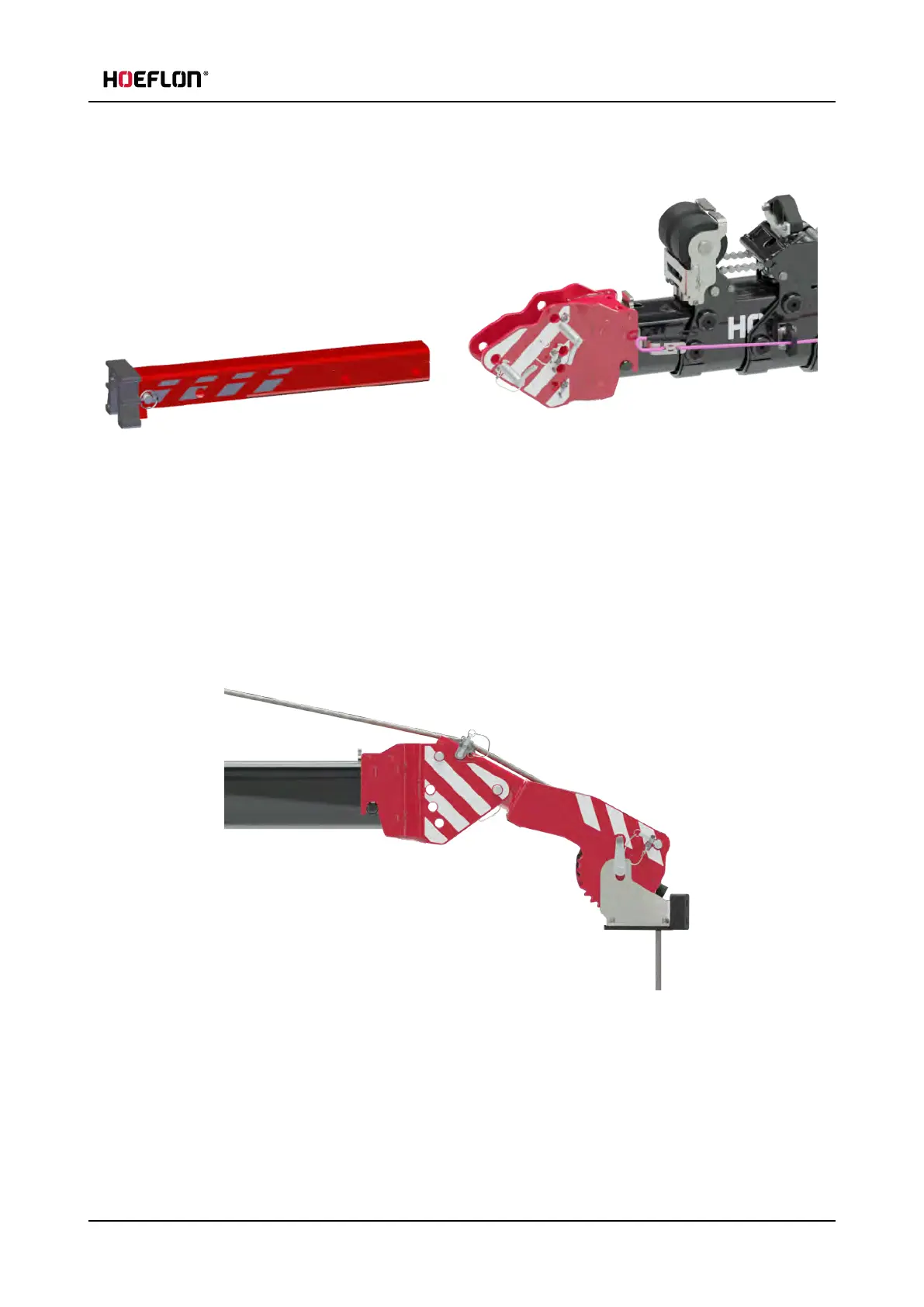

Attach the searcher hook to the angle adapter.
1. Unlock and remove the pins.
2. Move the searcher hook into the angle adapter.
l
Make sure that the searcher hook is turned to the correct angle.
3. Insert the pins and lock them.
7.10.4 Winch head
Attach the winch head to the angle adapter (at an angle of -30°).
1. Unlock and remove the pins.
2. Move the winch head into the angle adapter.
l
Make sure that the winch head is turned to the correct angle.
3. Insert the pins and lock them.
User guide - C30e Compact crane 81
