8.8 Lifting with the jib

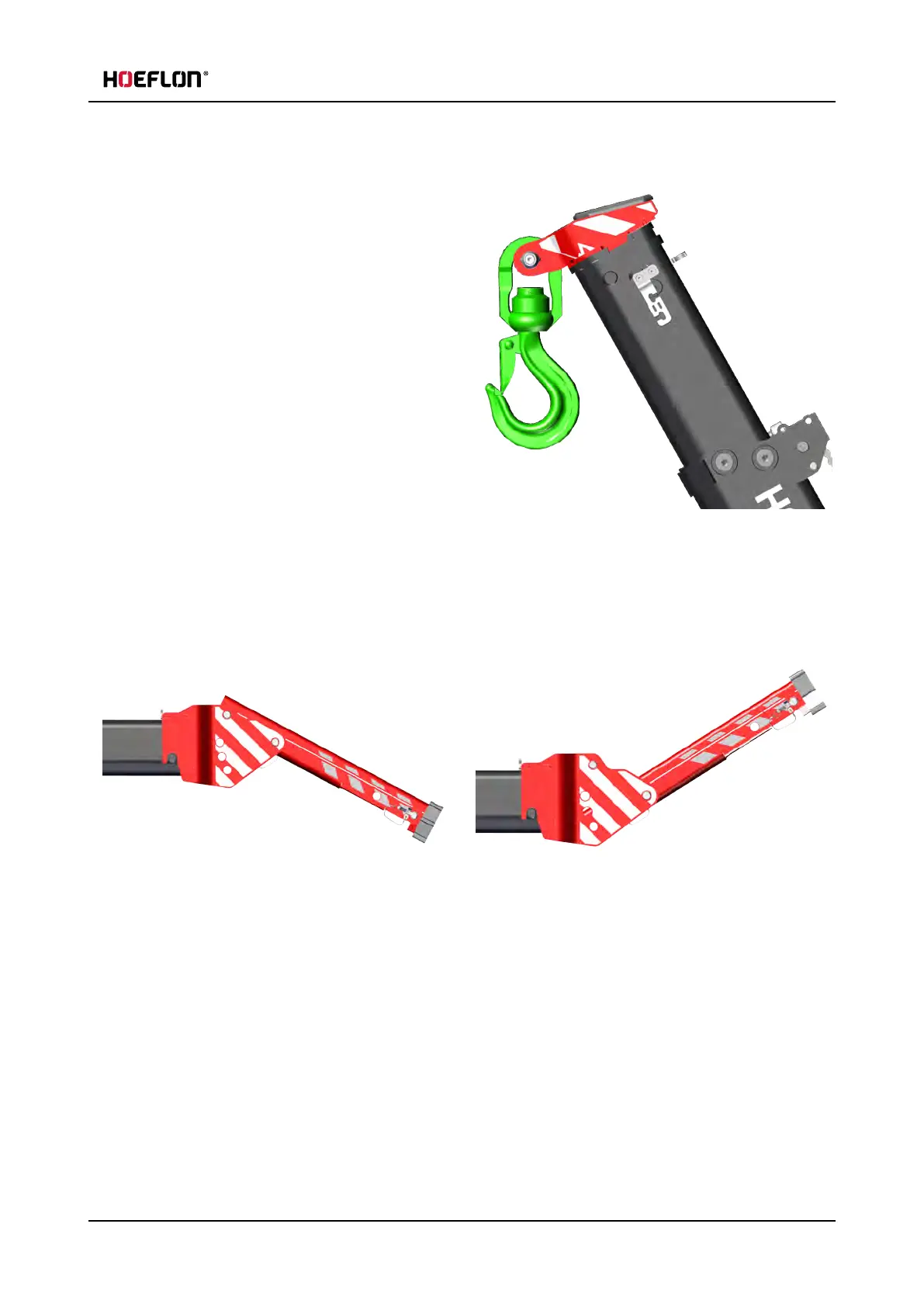

8.8.2 Maximum angle of the jib when lifting with the hook
The maximum angle of the jib when you lift with the
hook is 60°
8.8.3 Searcher hook positions in the angle adapter
The maximum angle of the jib is limited when you install the searcher hook in the angle adapter. If the angle
becomes more than this maximum angle the hook will touch the jib.
Lower position of the searcher hook in the adjustable
section (Position 1)
Upper position of the searcher hook in the adjustable
section (position 4)
