HOEFLON C30e - Maximum Angle of the Jib with the Searcher Hook; Remove the Winch Roll

8. Operation
1
2
3
4

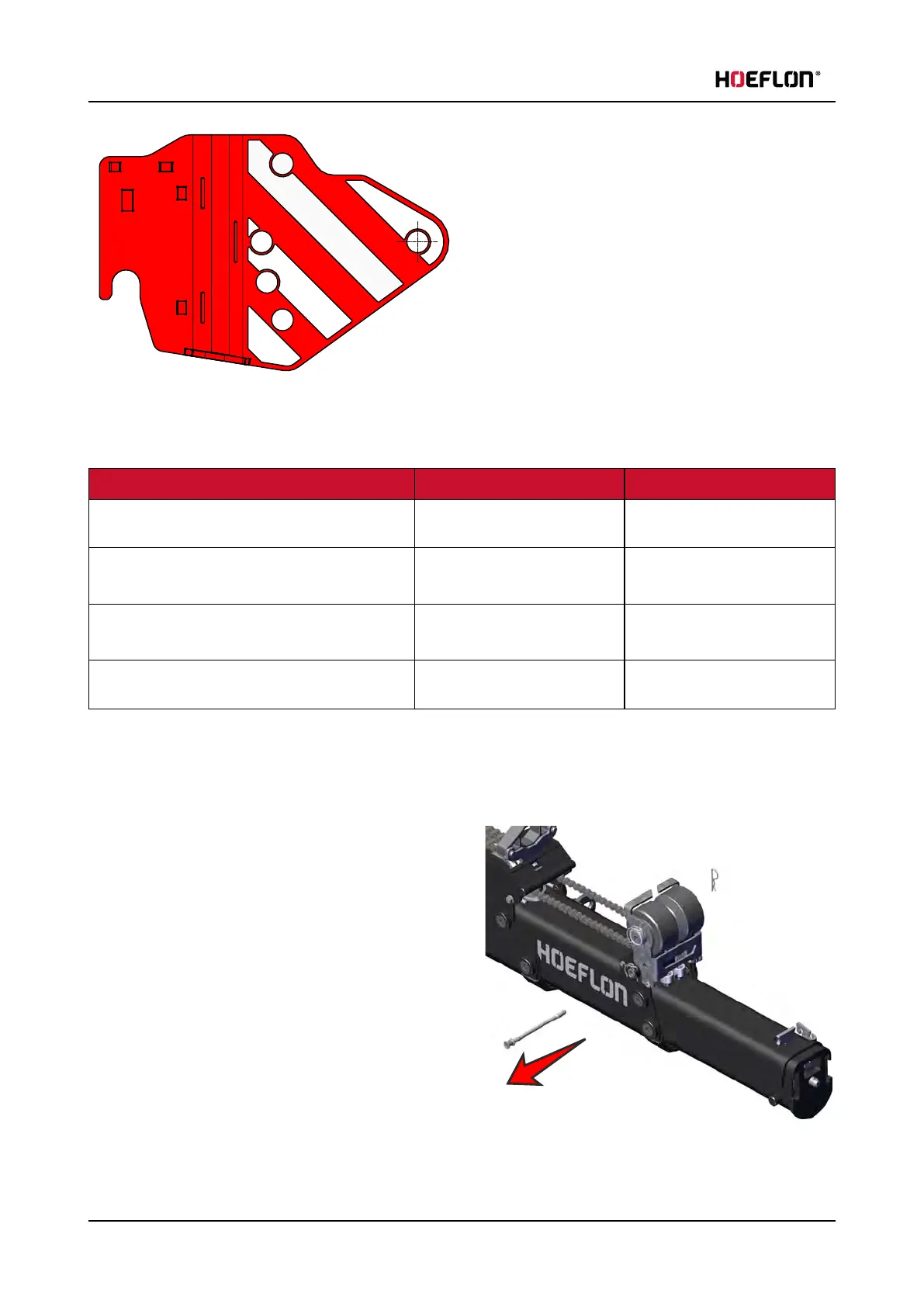

Install the winch head (or searcher hook) in one of the
following positions.
Position 1 @ -30°
Position 2 @ 0°
Position 3 @ 15°
Position 4 @ 30°
8.8.4 Maximum angle of the jib with the searcher hook
Searcher hook position Min. jib angle to horizontal Max. jib angle to horizontal
Installed in the adjustable section with the
searcher hook in the lower position (1)
-25° 90°
Searcher hook in position 2 -55° 60°
Searcher hook in position 3 -70° 45°
Installed in the adjustable section with the
searcher hook in the upper position (4)
-85° 30°
8.9 Remove the winch roll
Remove the winch roll if you want to reduce the height of the jib.
1
2
1. Remove the clip.
2. Pull the pin out of the roll.
3. Remove the roll.
4. Put the pin back into the roll.
5. Put the roll in a storage bin at the front of the
crane.
Do steps 1 to 5 in the reverse order to put the winch roll
back.
108 U.C30e.00.00.EN Version
