9. Maintenance
4. Turn the outrigger out of the way.
5. Look at the oil level in the level indicator on the side of the tank.
6. The level must be between the lines.
7. Add oil if necessary, (see 9.5.3 Fill the oil tank).
9.5.3 Fill the oil tank
1. Clean the filler cap.
2. Remove the oil filler cap. Put it in a safe place.
3. Add hydraulic oil until the oil level is between the lines on the sight glass.
l
Fill the tank with new hydraulic oil. Use oil with the correct specifications (see 9.5.1 Lubricants)
4. Put the filler cap back onto the tank.
9.6 Lubrication

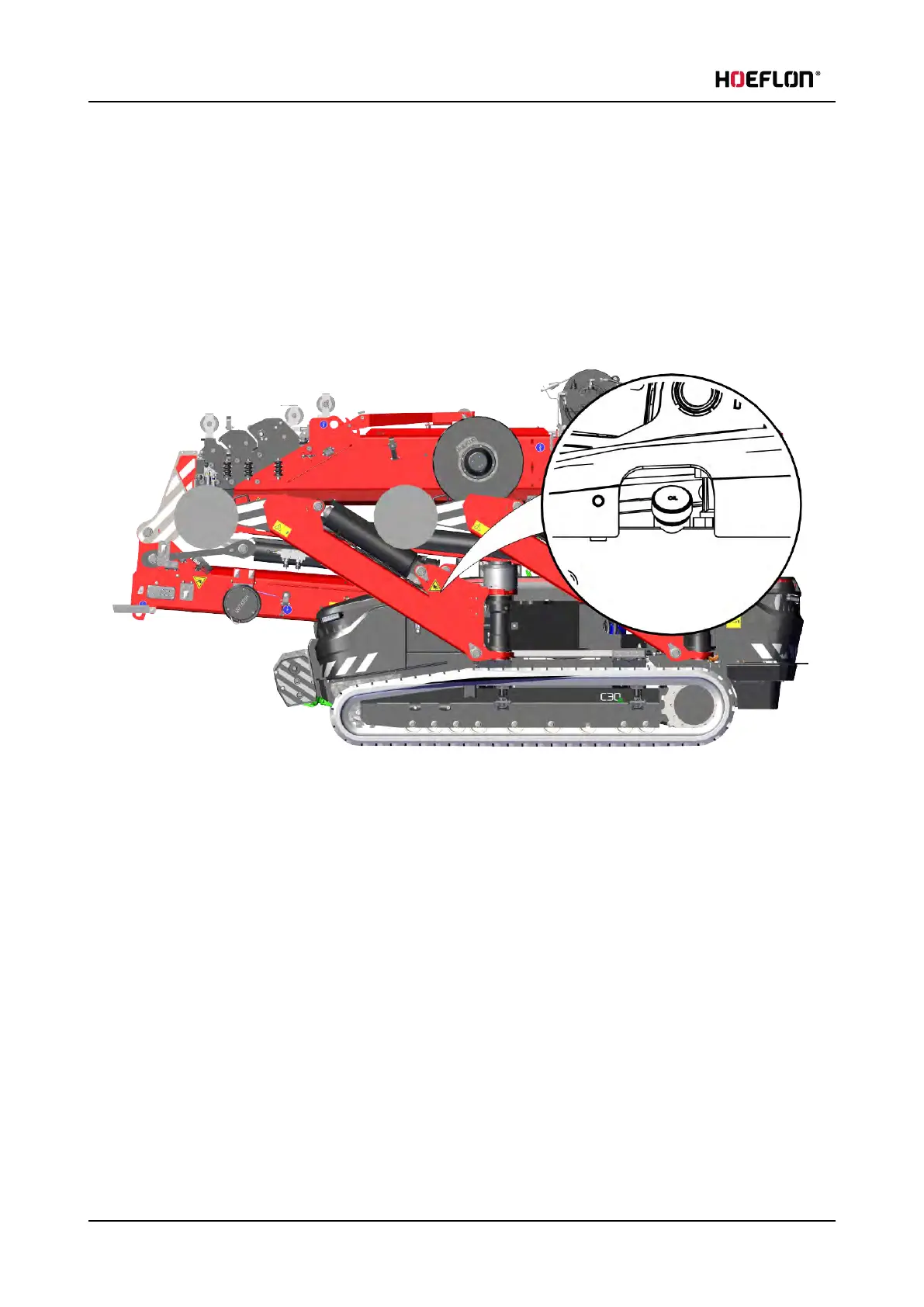

Lubricate the compact crane as shown in the lubrication chart below.
