HOEFLON C30e - Maximum Angle of the Jib with the Angle Adapter; Pick and Carry Mode

8. Operation
1
2
3
4

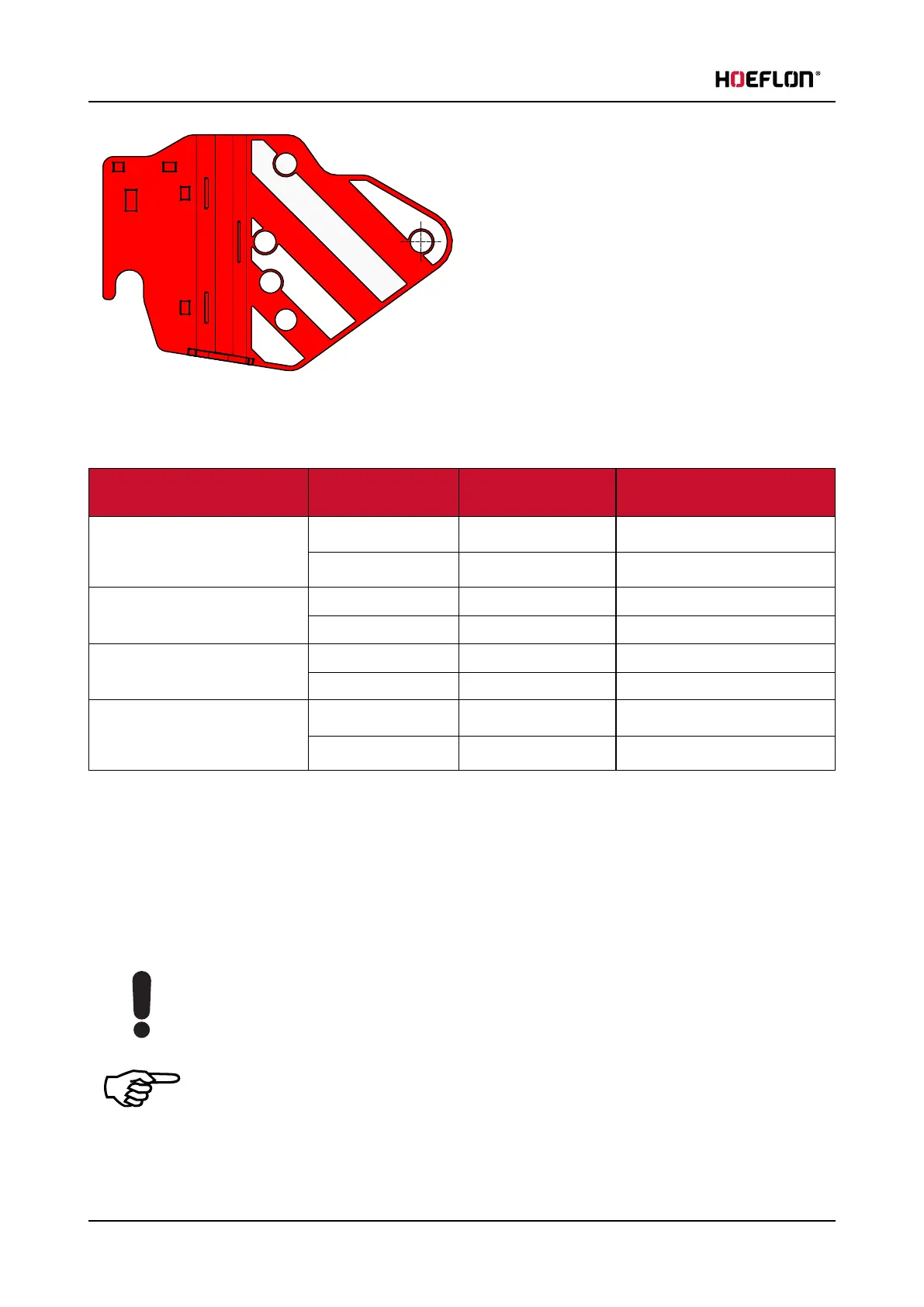

Install the winch head in one of the following
positions.
Position 1 @ -30°
Position 2 @ 0°
Position 3 @ 15°
Position 4 @ 30°
8.10.2 Maximum angle of the jib with the angle adapter
Winch head position Number of reevings Min. jib angle to
horizontal
Max. jib angle to horizontal
Installed in the adjustable
section with the winch head in
the lower position (1)
0 -25° 60°
1 -25° 60°
Winch head in position 2 0 -55° 55°
1 -55° 50°
Winch head in position 3 0 -70° 40°
1 -70° 35°
Installed in the adjustable
section with the winch head in
the upper position (4)
0 -85° 25°
1 -85° 20°
8.11 "Pick and Carry" mode
In "Pick and carry" mode you can:
l
lift a load without setting the outriggers.
l
move the crane while lifting a load.
Caution
The crane only knows that the outriggers are UP, it does not know their position.
Make sure that the ballast does not touch an outrigger leg when turning the superstructure.
Note
When the tracks are retracted the crane can only carry a load at the front .
You can only turn the superstructure while lifting a load if the two tracks are fully extended.
The maximum load in "Pick and carry" is smaller than during normal use, (see 13.2 Load chart - Pick and carry)
110 U.C30e.00.00.EN Version
