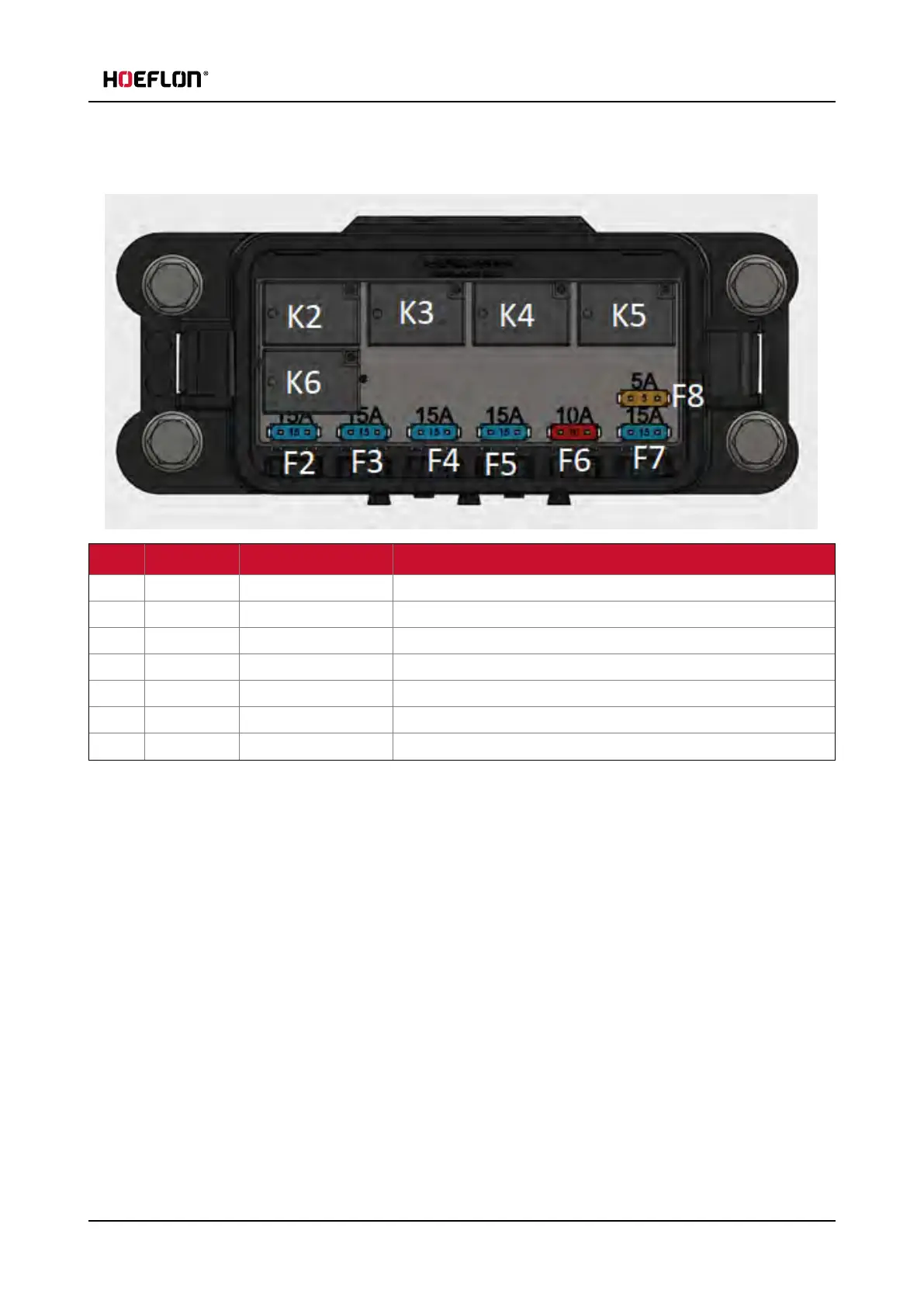

10.4 Fuses and relays
10.4.2 Fuses
Fuze Amperage Corresponding relais Protective function
F2 15A K2 Motor cooling
F3 15A K3 I/O front, I/O rear and HAWE valve block
F4 15A K4 Signal column, I/O boom, I/O winch, I/O jib and RFID sensors
F5 15A K5 I/O outrigger feet (left-front, left-rear, right-front and right-rear)
F6 10A K6 Battery charger of the remote control
F7 15A Gateway 3, battery pack 1 and battery pack 2
F8 5A Key switch and status indicator of the battery pack
