HOEFLON C30e - Turn the Winch to the Upright Position

8.12 Reducing the height of the crane
1
2
7. Go to the other side of the boom.
8. Put the pin (1) back in position.
l
The pin goes in the hole next to the turning
pin.
l
Insert the pin from the bottom, be careful with
the hydraulic leads.
9. Install the ring and then the clip (2|).
10. Retract the ballast.
11. Lower the boom.
12. Retract the outriggers.

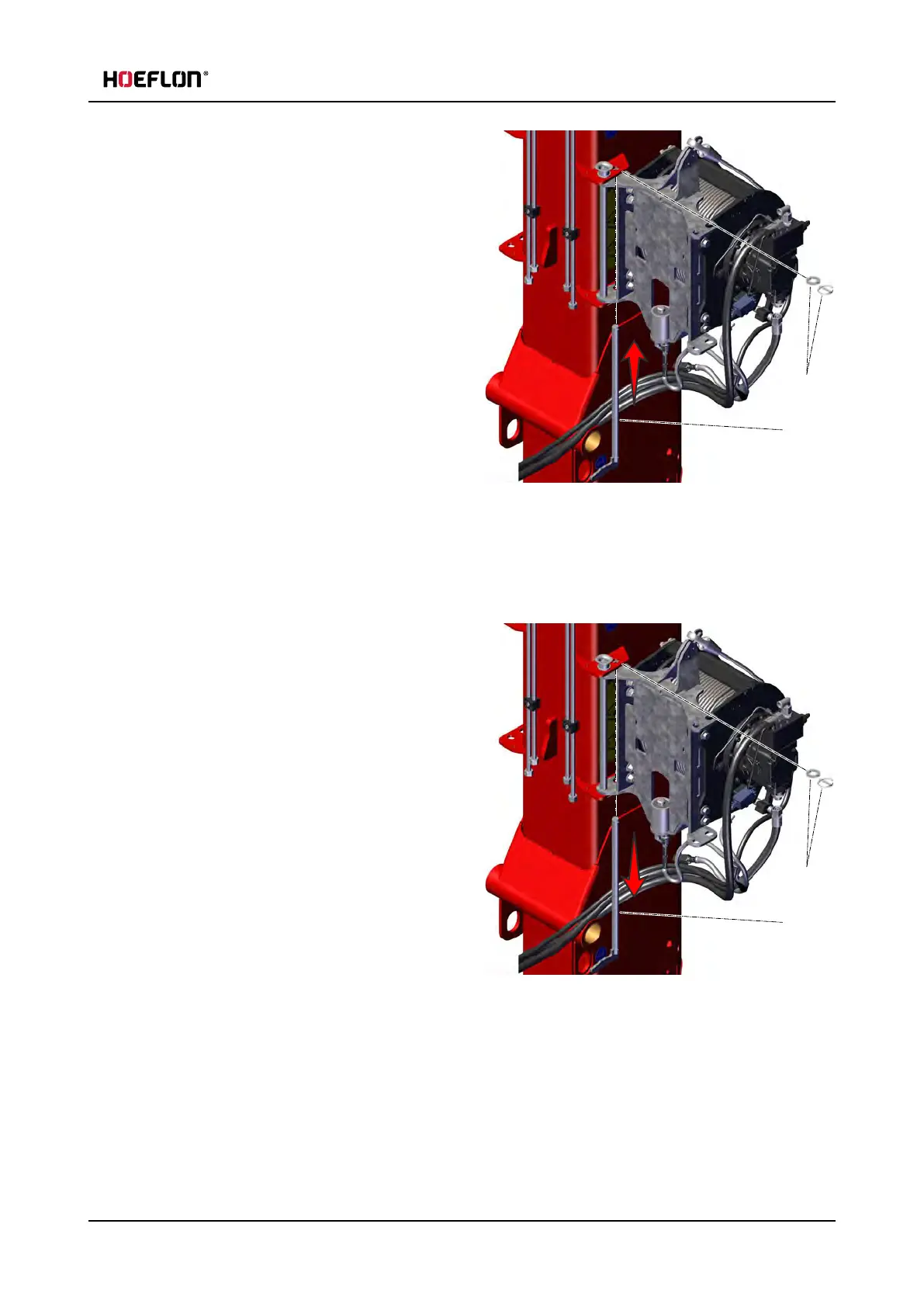

8.12.2 Turn the winch to the upright position
If the winch is in the lower position, next to the boom, you must first put it in the upright position before you
can use it.
1
2
1. Put the crane on the outriggers (see 7.5 Setting
the outriggers).
2. Turn the boom so that it is vertical.
3. Extend the ballast.
l
Use the ballast as a platform to stand on.
4. Remove the clip and the ring (1).
5. Remove the pin (2).
l
Be careful with the hydraulic leads when you
remove the pin.
User guide - C30e Compact crane 113
