HOEFLON C30e - Searcher Hook; Winch Head

4. Description

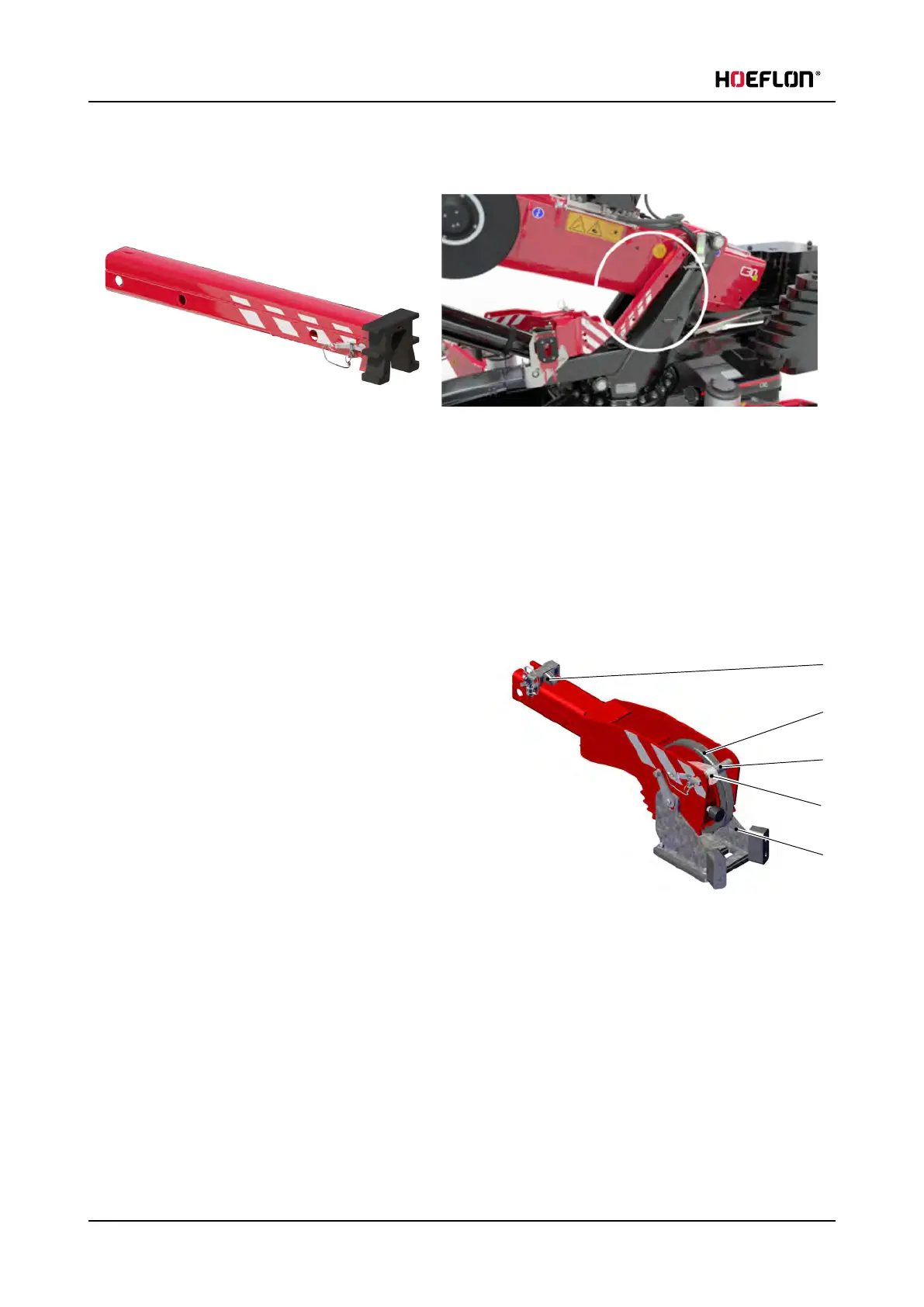

4.3.3 Searcher hook
Use the searcher hook:
l
to lift in areas where there is low headroom,
l
to install a load close to a ceiling,
l
to install a load under an overhead obstacle (such as a soffit or a balcony).
Install the searcher hook on the angle adapter (see 7.10.3 Searcher hook).
4.3.4 Winch head
1
2
3
5
4
1. Winch cable pulley - Only use at 30° setting.
2. Reeving pulley - One groove.
3. Locking pin - To secure cable from moving off the
pulley.
4. Reeved cable - Secured to locking pin.
5. Winch stop.
