2.14 Pictograms
When the RCL is active.
You can: You cannot
l
Unwind the lifting cable
l
Lower the boom
l
Retract the boom
l
Lower the jib
l
Retract the jib
l
Extend the boom,
l
Raise the boom,
l
Extend the jib,
l
Raise the jib,
l
Wind the lifting cable,
l
Slew the superstructure,
l
Retract the counterweight.

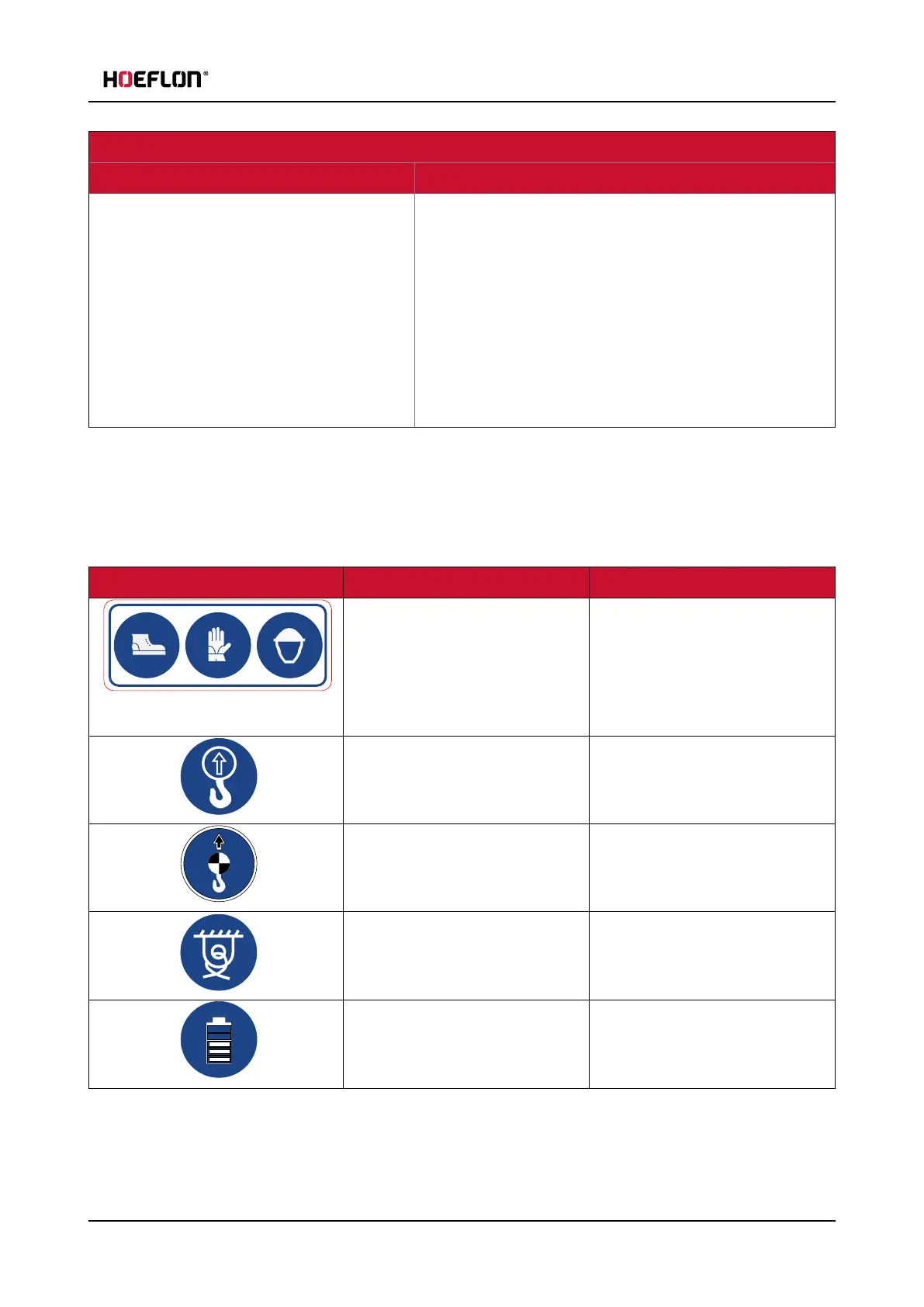

2.14 Pictograms
The pictograms used are shown below. Do not remove these pictograms. Replace missing or damaged
pictograms immediately.
Pictogram Meaning Location
l
Foot protection is
mandatory
l
Hand protection is
mandatory
l
Head protection is
mandatory
On the cover at the rear of the
undercarriage.
Lifting point for lifting crane and jib On the left and right sides of the
boom and the jib.
Center of Gravity On the left and right sides of the
boom and the jib.
Lashing point On the four corners of the
undercarriage frame.
Charge indicator for the 80 V
battery
On the support for the
attachments.
User guide - C30e Compact crane 11
