HOEFLON C30e - Pick and Carry Mode; While Controlling the Superstructure

5.4 Display
5.4.3 Pick and carry mode
PC
0.2°
6.5 V
21
1 2

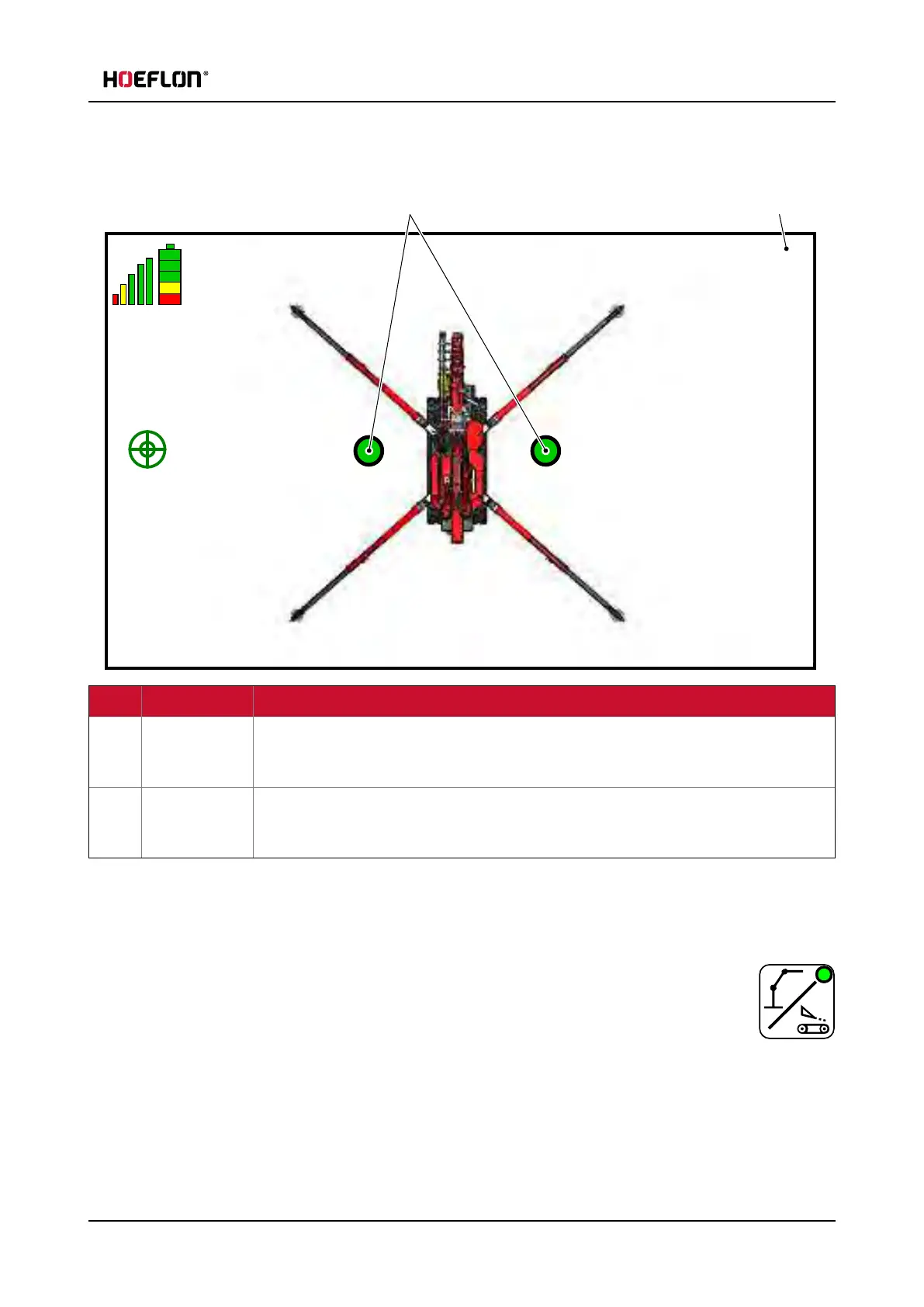

No. Function Explanation
1 Crawler track
is fully
extended.
A green circle shows that the crawler track is fully extended.
2 Indicator for
pick and carry
mode.
Tells the operator that the crane is in "Pick and carry" mode.
The outriggers are not set in pick and carry mode.
5.4.4 While controlling the superstructure
If the LED on button is ON, the levers operate the superstructure of the crane.
The display that is shown has information on:
l
the boom
l
the jib.
l
the counterweight.
