HOEFLON C30e - Boom

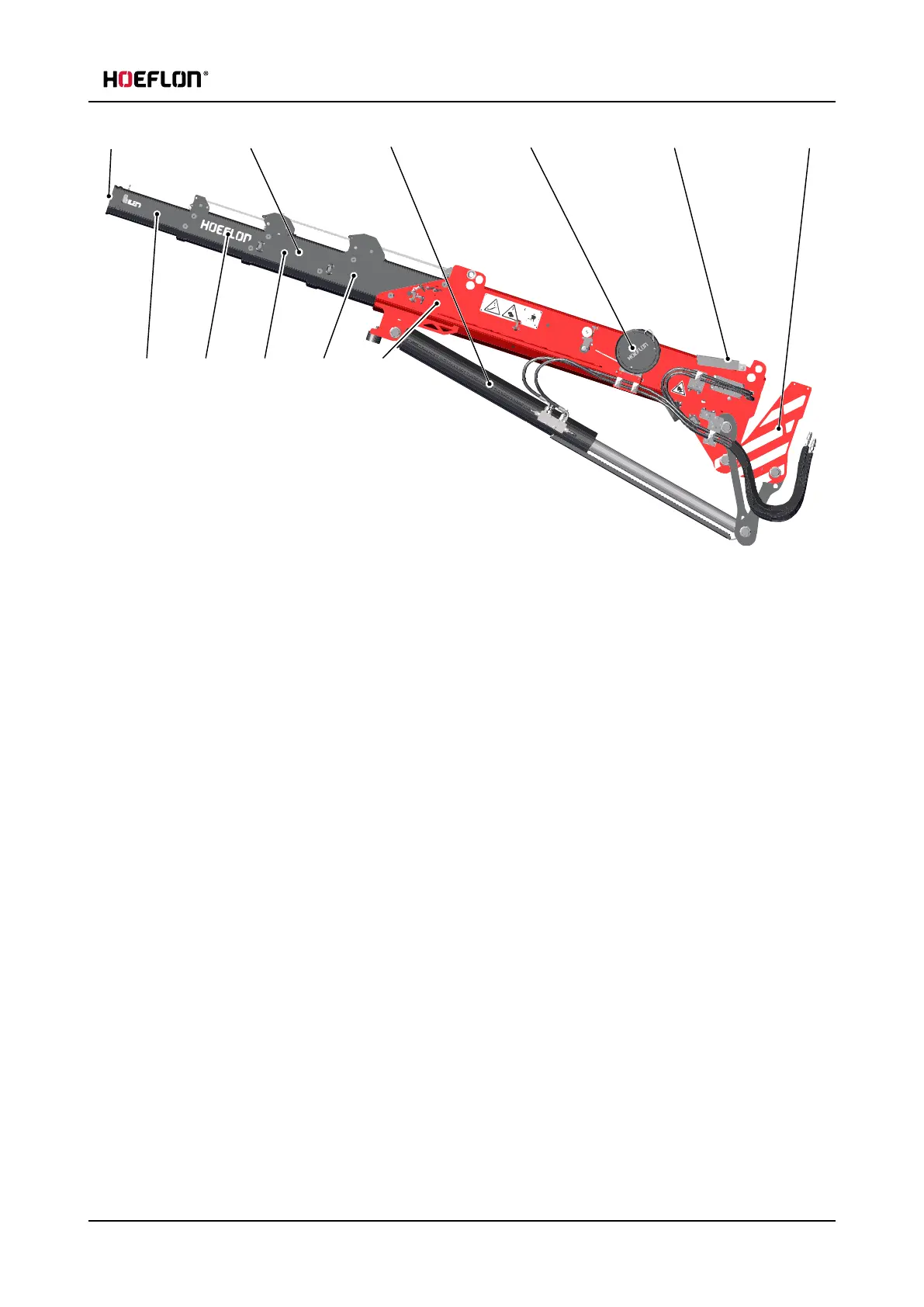

4.1 Main components
1 2 3 4
5
6
abcde
1. RFID sensor and locking pin
2. Jib sections
a. Main section 1
b. Section 2
c. Section 3
d. Section 4
e. Section 5
3. Lift cylinder for the jib
4. Electric reel for the jib
5. Support leg for the jib
6. Quick connect of the boom
4.1.1 Boom
The boom:
l
consists of five sections fitted one inside the other.
l
is very compact.
l
extends or retracts with a hydraulic cylinder.
