7.11 Prepare the crane for use with the winch

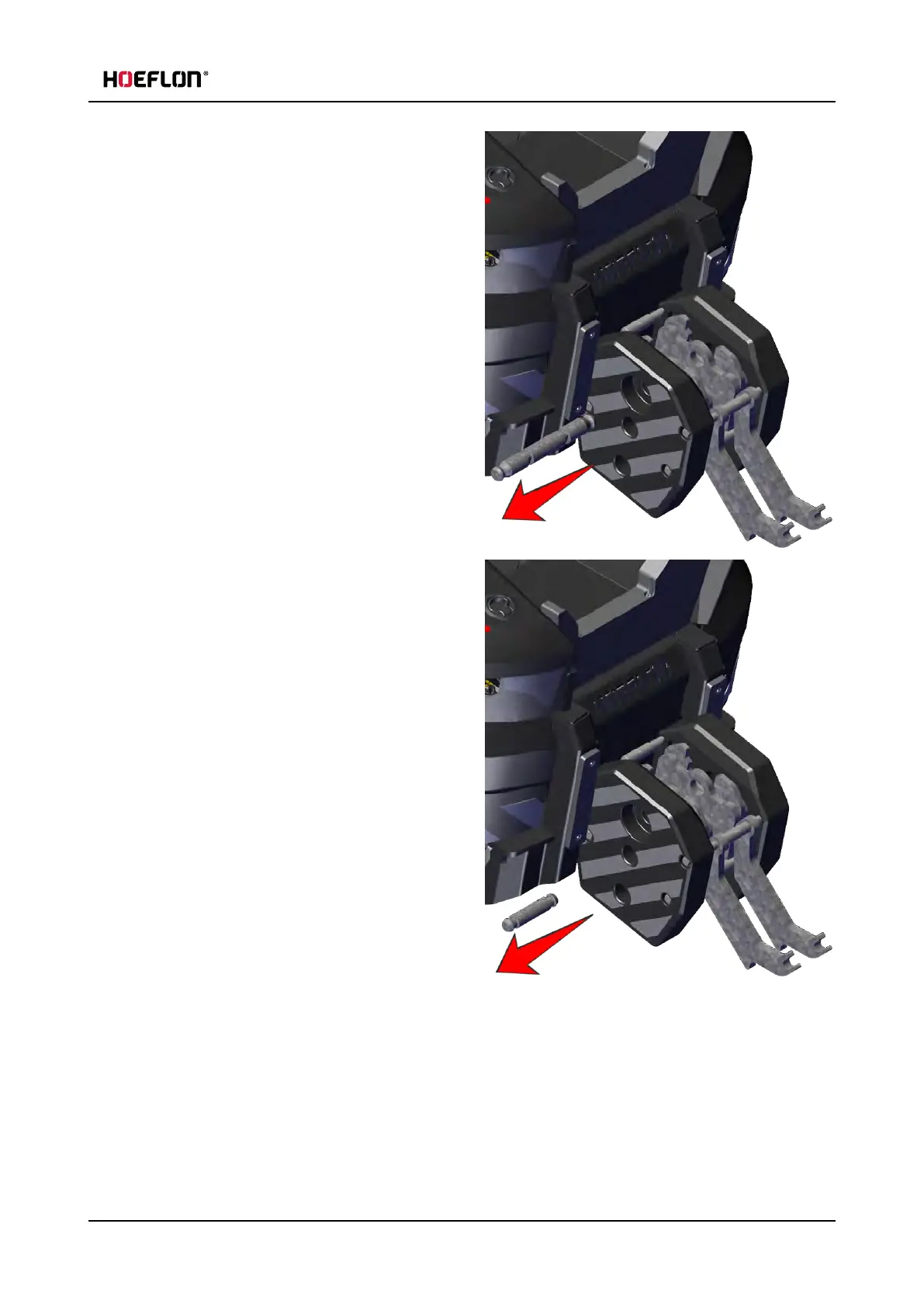

7. Remove the large shaft from the hook block.
l
This is the TOP shaft in the hook block.
8. Remove the small shaft from the hook block.
l
This is the shaft in the center of hook block.
l
Put the shaft in a drawer in the crane.
User guide - C30e Compact crane 93
